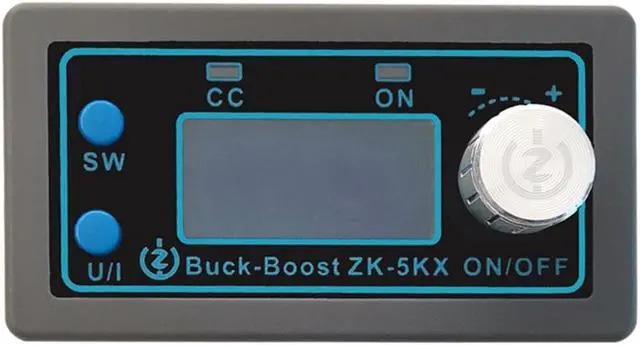

5KX 80W Boost Converter Programmable CNC DC Power Supply 5-30V Power Module Adjustable Regulated Power Supply Variable

Certification:NONE
Origin:CN(Origin)
Input voltage:5.030V
Output voltage:0.530V
Output current:can work stably at 3A for a long time, and can reach 4A with enhanced
Output power:natural heat dissipation 35W, enhanced heat dissipation 50W
Voltage display resolution:0.01V
Current display resolution:0.001A
Conversion efficiency:about 88
Soft start:Yes (it may fail when the module with high power load is started)
Working frequency:180KHZ
Feature 1:Power module

5KX 80W Boost Converter Programmable CNC DC Power Supply 5-30V Power Module Adjustable Regulated Power Supply Variable

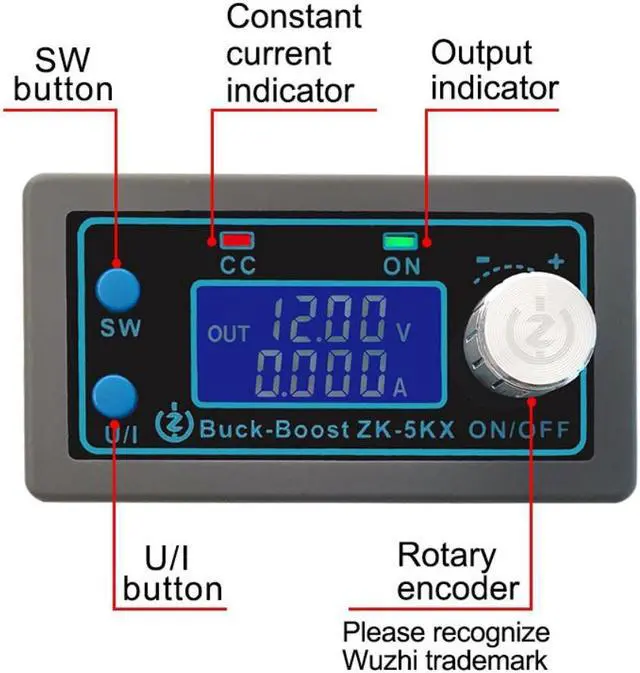

LCD can display input/output voltage, output current/output power/output capacity/output time;
Numerical control adjustment, precise and fast, can increase and decrease voltage, output voltage 0.5-30V can be adjusted arbitrarily, limit current 0-4A can be adjusted arbitrarily;
Input terminal anti-reverse protection, reverse connection will not burn
Anti-backflow at the output terminal, no need to add an anti-backflow diode when charging the ;

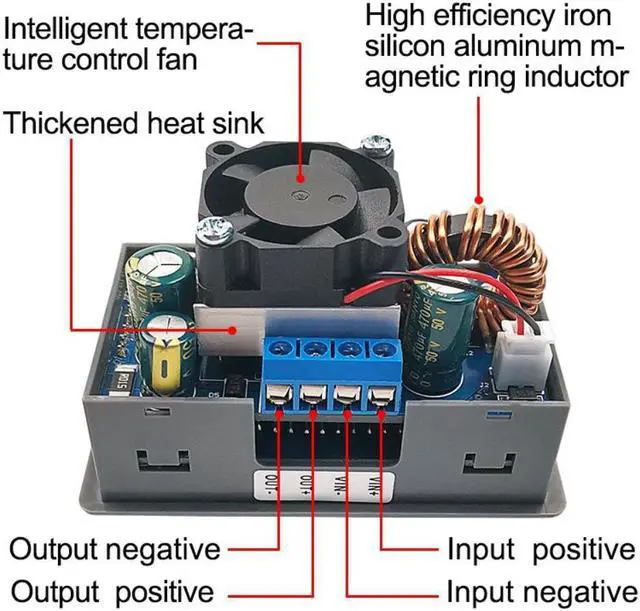

Possess a variety of software protection mechanisms, and the protection threshold is adjustable. After the module's operating parameters exceed the protection threshold, the output is automatically turned off. The output ripple is small, there is a -type filter; the heat sink is thickened.
Input voltage: 5.0-30V
Output voltage: 0.5-30V
Output current: can work stably at 3A for a long time, and can reach 4A with enhanced heat dissipation
Output power: natural heat dissipation 35W, enhanced heat dissipation 50W
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Conversion efficiency: about 88%
Soft start: Yes (it may fail when the module with high power load is started)
protection mechanism:
Input anti-reverse connection;
Output anti-backflow;
Input undervoltage protection (4.8-30V adjustable, default 4.8V)
Output overvoltage protection (0.5-31V adjustable, default 31V)
Output overcurrent protection (0 -4.1A adjustable, default 4.1A)
Output over power protection (0 -50W adjustable, default 50W)
Over temperature protection (80-110 adjustable, default 110)
Timeout protection (0 -100h adjustable, closed by default)
Over-capacity protection (0 -60Ah adjustable, closed by default)
Working frequency: 180KHZ
size:79x43x26MM
Material:ABS
colour:Black
Package Contents:
1 x Host
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
