5V LCD MP3 Decoder DAC Bluetooth Audio Receiver APE FLAC WMA WAV Decoder Support Recording Radio Lyrics Display

Type:Portable
DSD Sampling Frequencies:2.8224 MHz (DSD64)
Certification:NONE
Inputs:USB Type-C
PCM Sampling Frequencies:44.1 kHz
Material:Plastic
Origin:CN(Origin)
Outputs:3.5 mm
PCM Word Length:16-bit
Maximum Power Per Channel:NO POWER
Model Number:LCD MP3 Decoder Board
Channels:2 (2.0)

5V LCD MP3 Decoder DAC Bluetooth Audio Receiver APE FLAC WMA WAV Decoder Support Recording Radio Lyrics Display
Digital ground and analog ground wire: (When the independent transformer winding is powered, the ground wire is connected.), (The ground wire is separated when the box is applied.).
The motherboard power interface 5V,recommend to use DC5V 1A(note that the positive and negative poles are not connected).
Left and right channel audio output.
AUX1 external signal input.
AUX2 external signal input.
12V power display interface: (detection voltage is lower than 5.8V symbol is not bright, 5.8V-9.5V first grid flash, 9.5V-10.5V one grid is always bright, 10.5V-11.5V two grids are always on, 11.5V or above three grid display means full power, note that the current design maximum detection voltage should not exceed 22V)
When the is lower than 8.5V, the machine is prompted to charge the , but the is not used to protect the . Below At 8.5V, the system automatically displays Undervoltage and stops working. If the product is not applied to this detection port, the system defaults to the working state.
FM radio antenna interface.
MIC recording port.

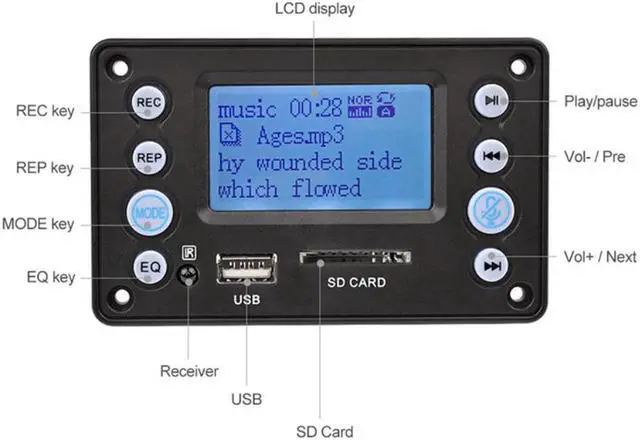

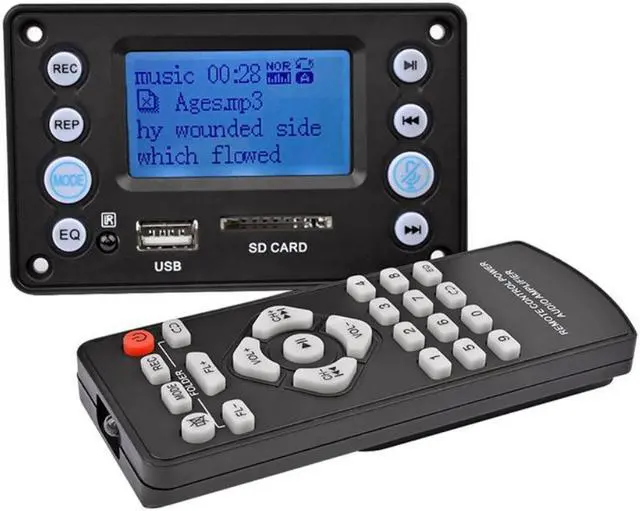

Operating function buttons and remote head interface.
Master volume encoder interface.
Colour: picture color
Material: ABS
Package Contents:
1 * MP3 Decoder
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
