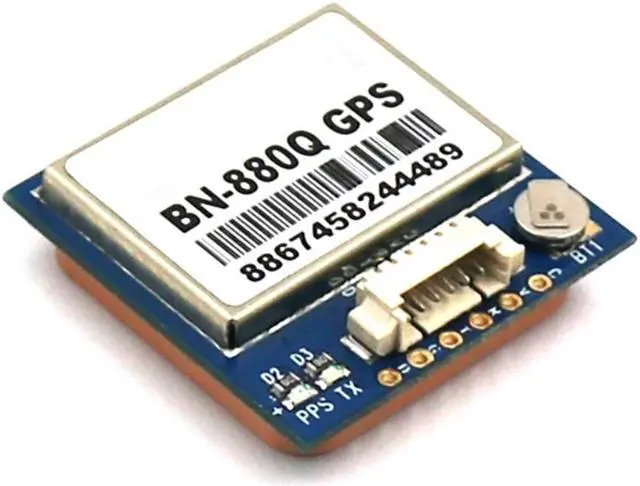

2X BN-880Q GPS Module QMC5883L AMP2.6/PIX4/PIXHAWK GNSS GPS GLONASS Dual Flight Control For Drone

Origin:CN(Origin)
Certification:NONE

2X BN-880Q GPS Module QMC5883L AMP2.6/PIX4/PIXHAWK GNSS GPS GLONASS Dual Flight Control For Drone
Chipset:M8030-KT
Frequency:GPS L1, GLONASS L1, BEIDOU B1, GALILEO E1, SBAS L1, QZSS L1
Receiving Format:GPS, GLONASS, BEIDOU, GALILEO, SBAS, QZSS.Default GPS, GLONASS, SBAS, QZSS.
Channels:72 Searching Channel
Sensitivity
Tracking:-167dBm
Reacquisition:-160dBm
Cold Start:-148dBm
Hot Start:-156dBm
Accuracy
Position Horizontal:2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity:0.1m/sec 95% (SA off)
Timing:1us synchronized to GPS time
Acquisition Time:
Cold Start:26s
Warm Start:25s
Hot Start:1s
Data Output:
Support Rate:4800bps to 921600bps, Default 9600bps
Data Level:TTL Level
Data Protocol:NMEA-0183 or UBX, Default NMEA-0183
NMEA Message:RMC, VTG, GGA, GSA, GSV, GLL
Update Rate:1Hz-10Hz, Default 1Hz
FLASH:4M FLASH, Store the configuration permanently
Operational Limits:
Altitude:50,000m Max
Velocity:515m/s Max
Acceleration:Less than 4g
Power Consumption:
VCC:DC Voltage 3.0V-5.5V, Typical: 5.0V
Current:Capture 50mA/5.0V
Mechanical Specifications:

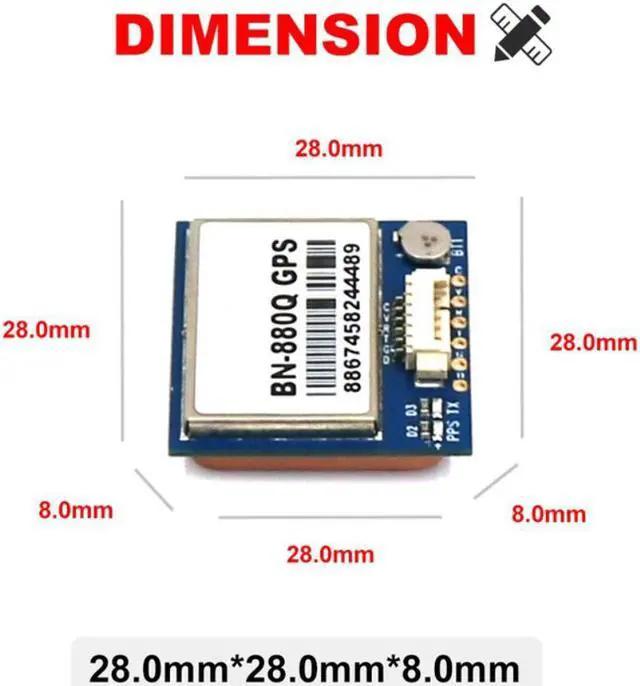

Dimension:28mm x 28mm x 8mm
Weight:12.0g
Connector:1.25mm 6pins connector
Environment:
Operating Temp:-40 Celsius - +85Celsius
Storage Temp:-40Celsius - +105Celsius
Built-in LED:
TX LED: blue. The data output, TX LED flashing
PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed
Compass:Built-in compass, With electronic compass IC QMC5883L
colour:Silver + blue
Material:ABS+ metal
Package Contents:
2 x GPS Module
2 x Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
