3G SDI To HDMI Converter BNC Coax 1080P Monitor HDTV Audio Adapter & 1080P HDMI To SDI Converter Adapter Coaxial Cable

Origin:CN(Origin)
Gender:Male-Female
Connector A:TYPE-C
External Power Source:Yes
Connector B:HDMI
Certification:NONE

3G SDI To HDMI Converter BNC Coax 1080P Monitor HDTV Audio Adapter & 1080P HDMI To SDI Converter Adapter Coaxial Cable

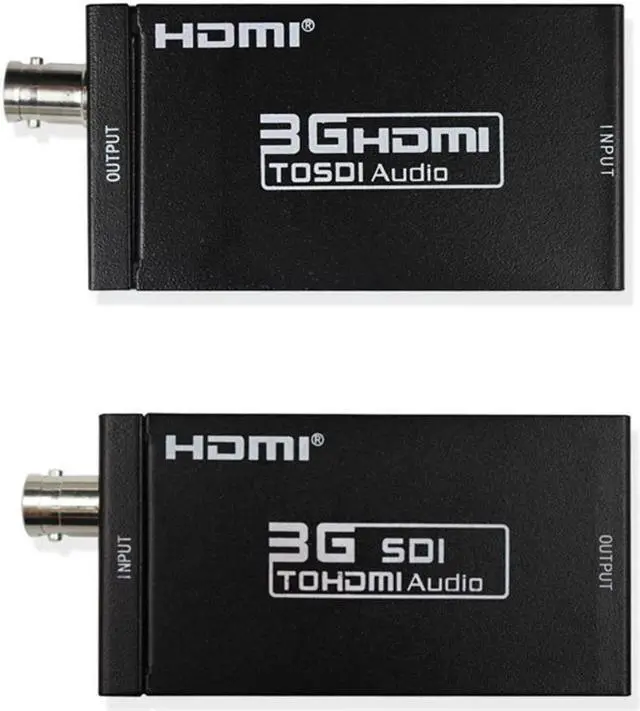

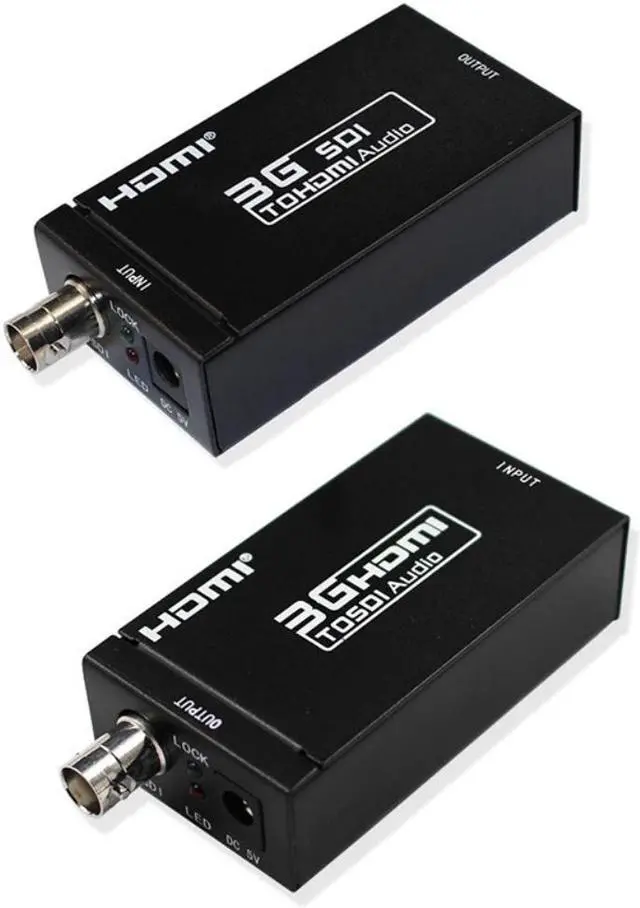

set2: 1 * HDMI To SDI Converter Adapter + 1 * SDI To HDMI Converter Adapter
Shows SDI source on HDMI display:Supports SDI intput distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI);SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
Supports HDMI output timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
Converts SDI to HDMI signal:SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s) to 480i/576i;HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s) to 720p/1080i
3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) to 1080p;Works as receiver side of HDMI extender over BNC coaxial cable (need to work with HDMI to SDI converter, sold seperately)
Industrial power technology, support 5V-12V wide voltage
Works continuously and stably for 24 hours

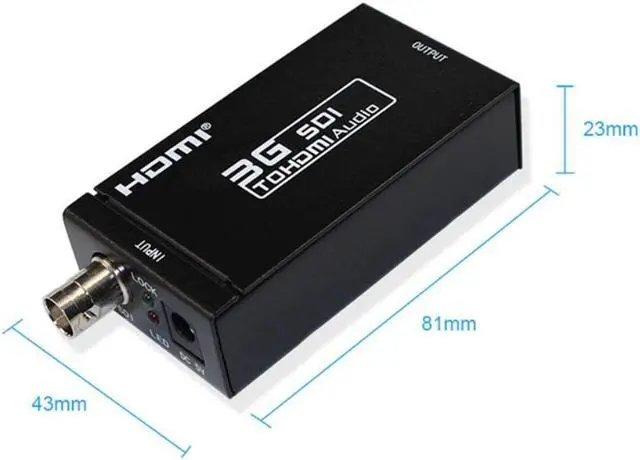

This SDI to HDMI Converter allows SDI signals to be shown on HDMI display at high bit rates of 2.970 Gbit/s without any loss. It max supports 1080P 60Hz resolution, and 3G-SDI distance up to 100m (328ft).
Specifications:
Input Port: 1 x BNC (SDI/ HD-SDI/ 3G-SDI)
Output Port: 1 x HDMI
SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s
Power Supply: DC 5V -12V
ESD Protection Human body model: ±8kV (air-discharge) ,±4kV (contact discharge)
Power Consumption (Max): 5W
Note:it is single direction converter, from SDI to HDMI, NOT supports HDMI to SDI
it is NOT upscaler, it cannot upgrade or downgrade video resolution
Not support 4K
Support SDI output range up to 100 m (3G-SDI), 200 m (hd-sdi), or 300 m (sd-sdi)
Audio and image synchronous output
Simple and convenient installation
Connect multiple converters together, long - distance extension signal
Note:This SDI to HDMI converter does not support SD, it does not support 480i and 576i.It can convert audio and video. Now, it can not compatible with Sony TV.
Material:metal
colour:black
Package Contents:
1 * HDMI To SDI Converter Adapter
1 * SDI To HDMI Converter Adapter
2 * USB Power Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
