DPS3012 30V 12A Constant Voltage Current Step-Down Power Supply Module Buck Voltage Converter Voltmeter

Origin:CN(Origin)
Certification:NONE

DPS3012 30V 12A Constant Voltage Current Step-Down Power Supply Module Buck Voltage Converter Voltmeter
Its adjustable output voltage range is 0-30.00V, step by 0.01V. Its adjustable output current range is 0-12.000A, step by 0.001A
Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required
The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one

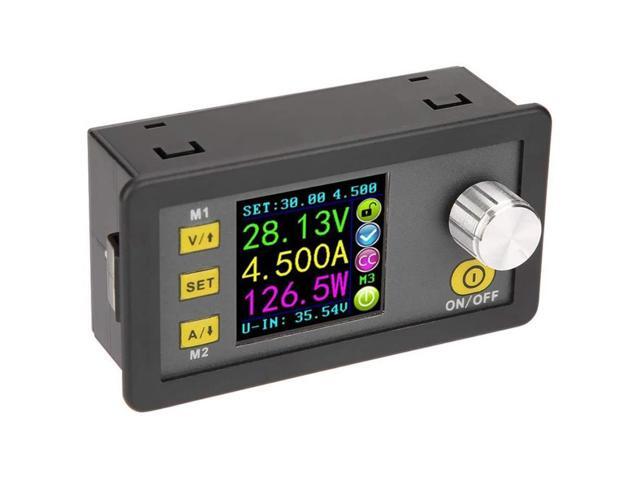

LCD display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc
Display: 1.44 inch Colorful LCD
Input Voltage: DC 6-60V
Output Power: 0-384W
Voltage Resolution: 0.01V
IN+: Input Positive
IN-: Input Negative
OUT+: Output Positive
OUT-: Output Negative
Connecting Wire Length: 200mm / 7.87inch
Display Module Size: 80 x 42 x 45mm / 3.1 x 1.7 x 1.8inch
Power Module Size: 91 x 67 x 40mm / 3.58 x 2.64 x 1.57inch
colour: black
Material: composite material
size: 93mm x 71mm x 41mm
Package Contents:
1 x power module
1 x digital meter
1 x cable
[Note]1. It must be ensured that the input supply voltage is 1.1 times or more of the output voltage. At high currents, please pay attention to enhance heat dissipation.2.When connecting the display module to the power module, the connection line of the corresponding character should be correctly connected. If the connection is reversed, it will not work properly.
Only the above package content, other products are not included.
