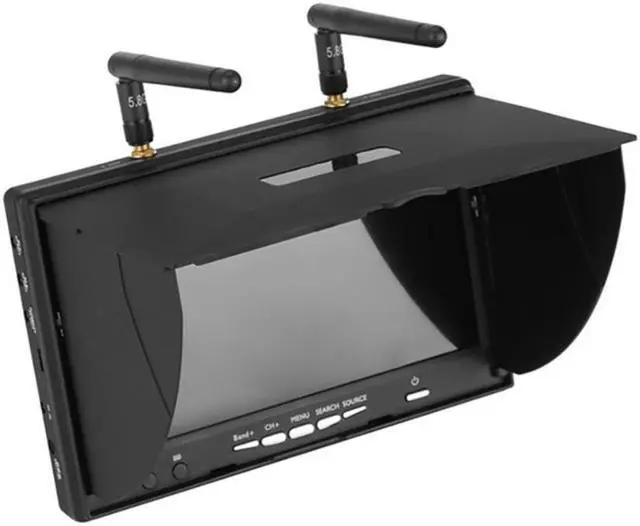

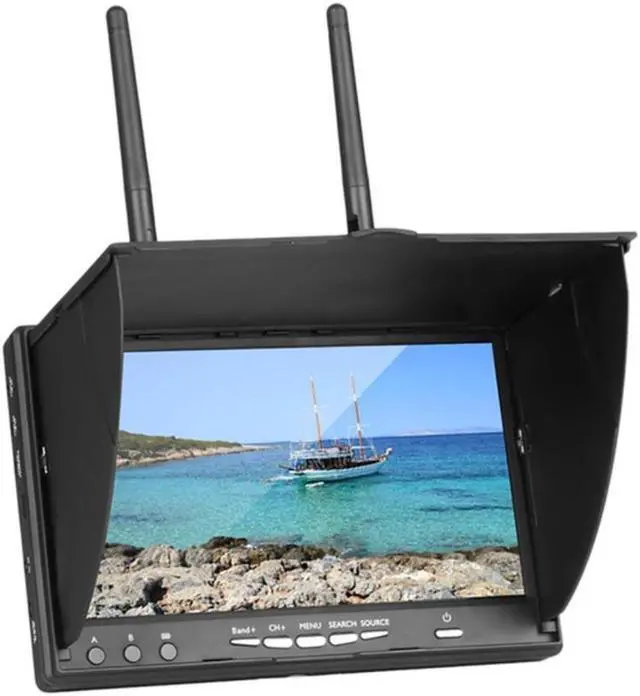

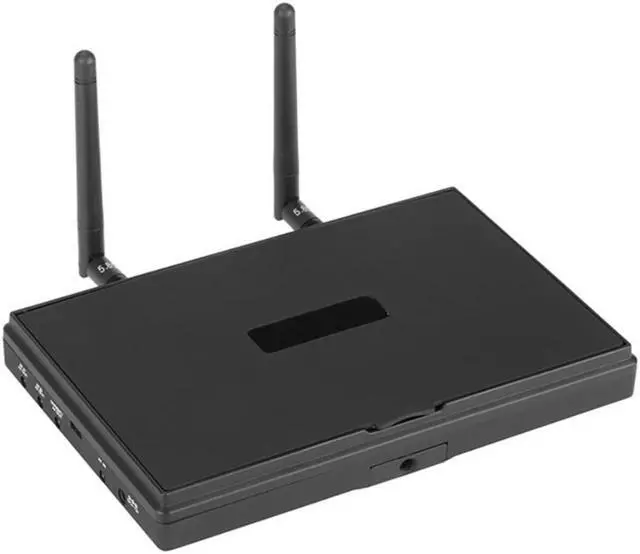

DIY FPV Monitor 5.8Ghz 5 Bands 40Channels 7Inch LCD Screen Receiver Monitor for FPV Drone Quadcopter Diversity Receiver

Certification:NONE
Origin:CN(Origin)
Material:Composite Material
Recommend Age:Maternity
Tool Supplies:Sticker
Upgrade PartsAccessories:Adapter
Use:Vehicles Remote Control Toys
Remote Control PeripheralsDevices:MOTOR
For Vehicle Type:Helicopters
Fourwheel Drive Attributes:
Wheelbase:Screws

DIY FPV Monitor 5.8Ghz 5 Bands 40Channels 7Inch LCD Screen Receiver Monitor for FPV Drone Quadcopter Diversity Receiver
This LCD Screen FPV Receiver Monitor Built-In Dual Receiver Automatically for Best Reception Automatic Antenna Switching
[This LCD Screen FPV Receiver Monitor with Stable Performance and Clear Image Quality.7inch 800 x 480 HD Resolution,View Angle Up To 140/120 Degree(Horizontal/Vertical)
Support 5 Bands and Total 40 Channels,Meet Your Various Usage Scenar .
Built-In ,Easy to carry for outdoor use,A key to automatic signal search,Simple and easy to operate.A simple and effective accessory for FPV drone.
Built-in 5.8 GHz dual diversity receiver
Built-in 2 ch 5.8 ghz AV output and 1 ch AV input
Built-in high performance Li-POLYMER : 2000mAh / 7.4V
working status OSD display: RSSI signal; indicator; channel indication
Automatic signal search
Support Chinese and English menus
Format: JPEG, AVI
Screen size: 7 inches
Screen Type: TFT LCD/Long Life, LED Backlight
Resolution: 800*480
Brightness: 600 cd/m2
Viewing angle: 140/120degree (horizontal/vertical)
Working voltage: DC 7~16v
Power consumption: max 650 mA @12V
charging current: 850mA@12V(max)
Working temperature: -10Celsius~ +65Celsius
Connector: RP-SMA female (outer pin)
Antenna connector: RP-SMA male (inner hole)
Built-in dual receiver module
Double buffered AV output
won't affect the 2.4 ghz R/C radio
AV receiver with versatile inputs
Lightweight and durable
40 channels
Built-in for easy portability and outdoor use
Automatic signal search, simple operation
Working status display: Always pay attention to the working status of the equipment.
Note: it cannot receive two different channels at the same time
Colour:black
Material:APS+PCB
Size: 11.7 x 11.5 x 10.5cm
Package Contents:
1 set of 5.8G FPV DVR function 7 inch handheld screen
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
