ATU 100 Tuner PLUS Upgraded 100W Open Source Shortwave Automatic Antenna Tuner for 10-100W Shortwave Radio Stations

Model Number:ATU100 Plus
Name:Antenna Tuner
Power:Max 100W
frequency:1.850MHz
Input Power:1015V
Used For:10W100W Radio
Not Used for:QRP radio(010W)
Certification:NONE
Origin:CN(Origin)

ATU 100 Tuner PLUS Upgraded 100W Open Source Shortwave Automatic Antenna Tuner for 10-100W Shortwave Radio Stations

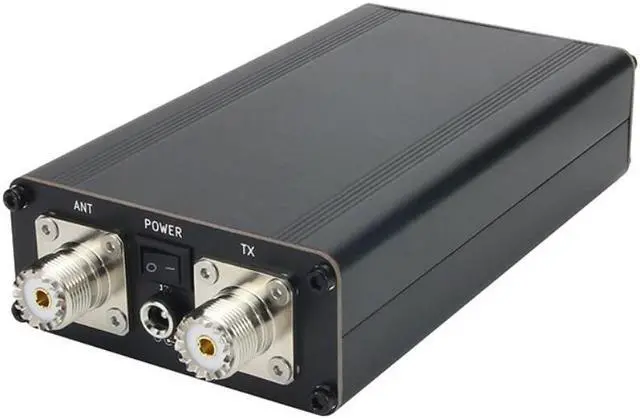

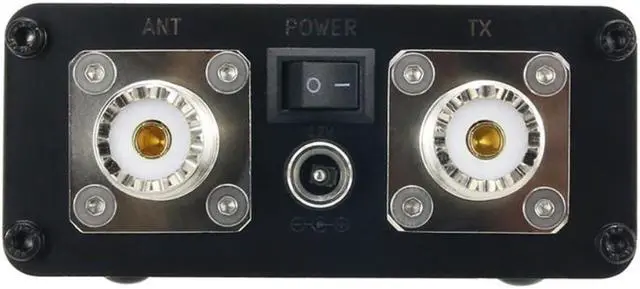

Shell part: Sandblasted black aluminum alloy shell, silver metal font panel, to prevent the abrasion of white fonts, and highlight the high-end and exquisite texture of the product;SL16KF M female connector is firmly connected, 5.5x2.1 DC power socket;0.96inch blue OLED screen, screen connection line, solve screen abnormalities; A full set of 304 stainless steel fixing screws to prevent rust, higher strength and durability
The internal connection line of the machine adopts welding process and is wrapped with glued heat shrinkable tube, which is firm and stable; Screen and button connection line connectors, adding glue dispensing technology, shockproof and stable
PCB part: Solid filter capacitor, safer and more durable; Imported T68-2 magnetic ring, stable and more reliable;MCU to ensure the quality of the heart;All first-line brand SMD components, more stable performance; SMT welding is currently the highest process of all ATU versions on the market, pursuing quality assurance;X2.54 power connector, ELECFISH full set of silver mica capacitors
Software Optimization:1. Synchronize the latest version 3.1 firmware; 2. configuration interface, eliminating the need for repeated flashing, no need to buy a burner; 3. Optimize power measurement calibration algorithm, power measurement is more accurate

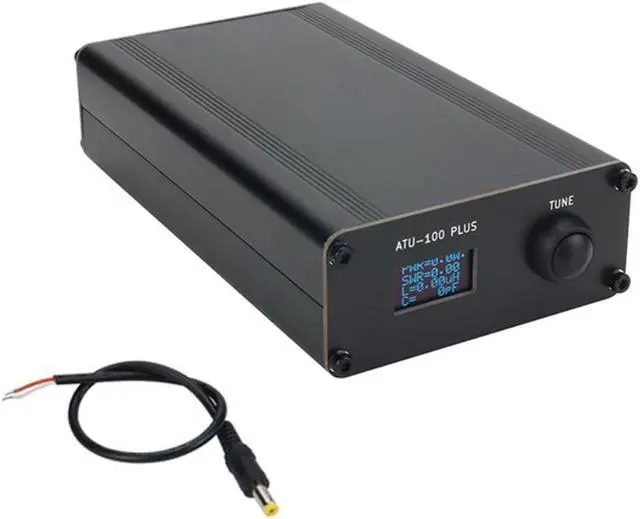

Configuration interface description: How to enter: Press and hold TUNE button and turn on the tail power switch at the same time. After OPTIONS is displayed on the screen, release the TUNE button to enter the setting interface. Operation mode: Short press TUNE button to change the current value. Long press the TUNE button to switch setting items.
Description of each option: Auto Mode (ON/OFF): ly control the automatic mode of antenna tuner, and omit the automatic button, making it more convenient to use. If you plan to use the device without additional buttons, you can enable the automatic mode by setting the value to ON. The default value is ON. Show Loss (ON/OFF): ly control the loss calculation display interface, the display is more intuitive. Indicating the power delivered to the antenna and efficiency of fider and transmitter when input power is enough for correct SWR measuring. Fider Loss (0.0-9.9): ly define the loss value of wire, which can calculate antenna efficiency more accurately. This value uses for counting the power delivered to antenna. The loss value can be found in the reference data for the used cable or you can measure the exact value yourself. Auto Delta (1.3-3.0): Customize the start value of SWR in automatic mode, autonomously control SWR adjustment range, and have a larger application range. The default value is 1.3. That is, when the automatic mode is activated, the tuning process will be triggered when the SWR is above 1.3 and when it changes to (1.3-1). Display On (00s-95s): Customize the time when the screen is automatically turned off, which saves power when you are in standby
colour: black
Material: aluminum alloy
Size: 15x8.8x3.8cm
Package Contents:
1 x Tuner
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
