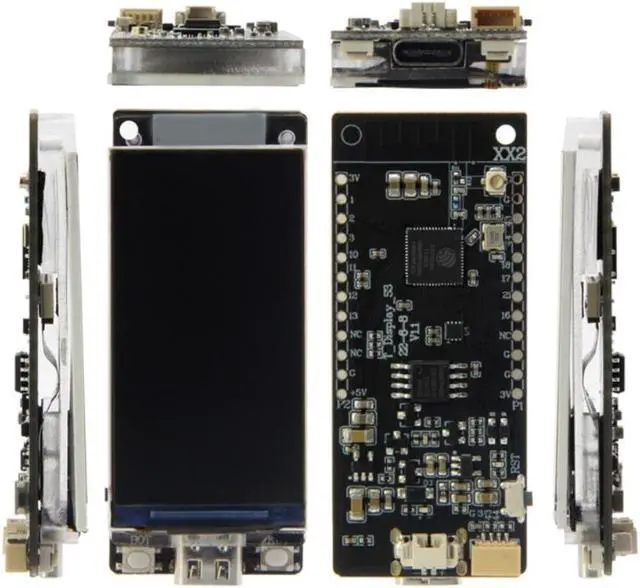

T-Display-S3 Wireless Module LCD Development Board Wi-Fi BT5.0 ESP32-S3R8 Dual-core LX7 Microprofessor USB Li Dual Power

Model Number:B2RD4NB504277
Demo Board Type:FPGA
Origin:Mainland China
Certification:CE

Features:
OOTDTY
The T-Display series support USB/Li-Po Dual Power Supply
It comes with the latest ESP32-S3 and Bluetooth-compatible 5.0 module.
The screen has also been expanded from the 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
This will be the second LILYGO model display with acrylic plate fixed.
8-Bit Parallel interface, working Power 3.3v.Resolution: 170(H) RGBx320 V.

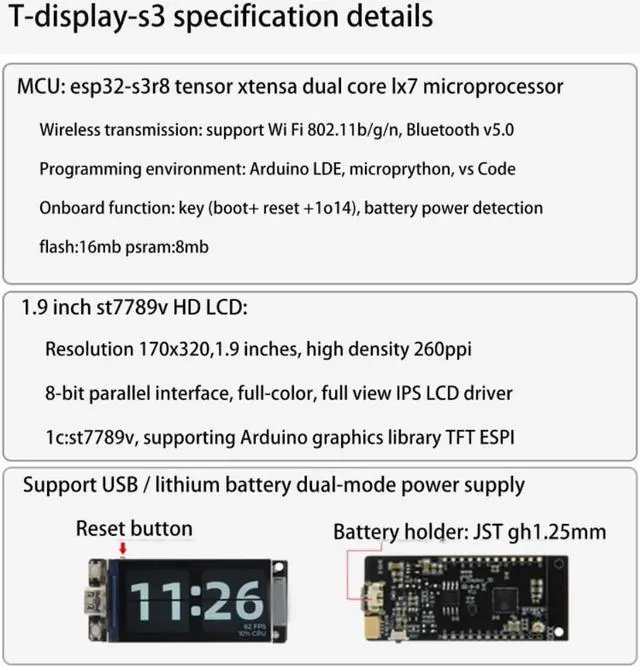

Specifications:
MCUESP32-S3R8 Dual-core LX7 Microprofessor
WIreless Connectivity: Wi-fi 802.11 BLE 5+BT mesh
Programming Platform: Arduino-ide Micropython
Flash: 16MB PSRAM: 8MB
Onboard Functions: Boot+Reset+1O14 Button

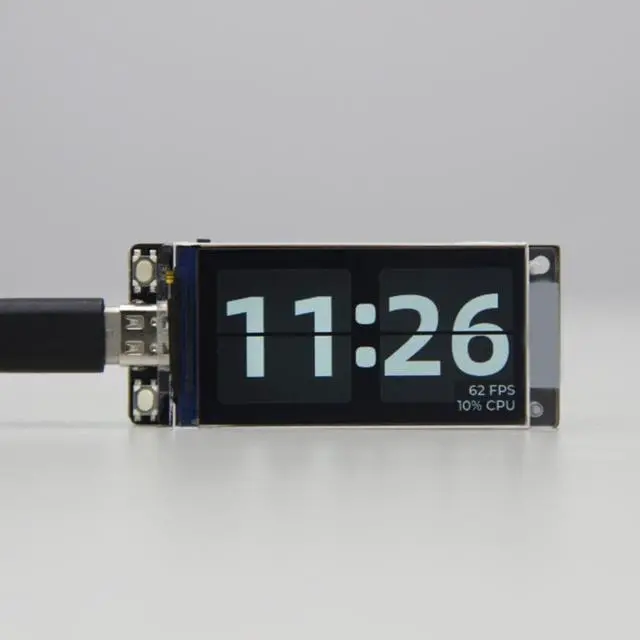

LCD: 1.9inch ST7789V IPSTFT LCD
Drive Chip: ST7789
Resolution: 170H RGBx320V
Size: approx 62x26x10mm/2.44x1.02x0.39in
Package Includes:

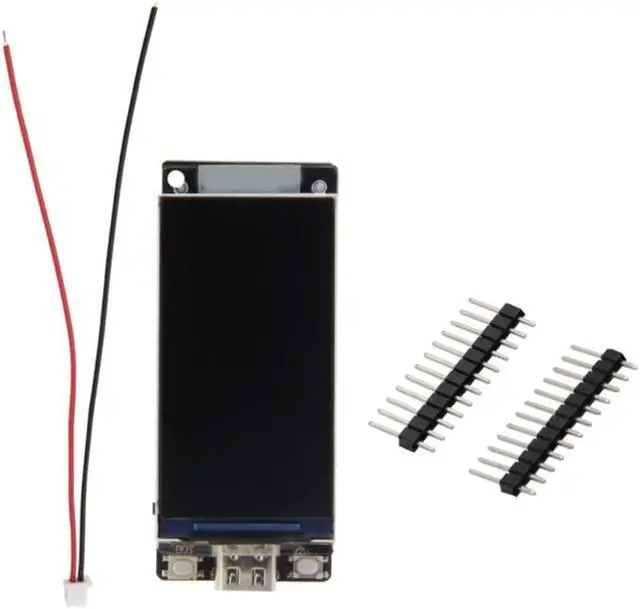

1 PC x Display S3 LCD Development Board
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is1-3cm.
