Ugreen PCIE to M2 Adapter NVMe SSD M.2 Enclosure PCI Express Adapter 32Gbps PCI-E Card X4/8/16 M&B Key Computer Add On Cards

Package:Yes
Type:PCI-E Riser
Origin:Mainland China
Certification:NONE
m2 ssd case:pci m2 adapter
nvme adapter:ugreen
pci nvme adapter:nvme m2 sata adapter
m2 nvme to sata adapter:nvme m2 pci express adapter
pcie to m2 adapter:pci express

M.2 PCI-E NVMe SSD to PCIe 3.0 X4/X8/X16 Adapter Card High Speed 32Gbps SSD PCI Express Converter for 2230/2242/2260/2280 Hard Drive
Feature:
Thicken heavy gold, high-speed heat dissipation in all directions.
Universally compatible with PCIE3.0. X4 / X8 / X16, a variety of interfaces are common, without bezel directly inserted PCIE.
Quick installation. Insert the M.2 NVMe SSD into the adapter card at an angle, fix the inserted SSD hard disk with screws, install the SSD hard disk adapter card, and insert the PCI-E X4/8/16.
Suitable for PCI-E channel M.2 NVMe SSD 2230MM 2242MM 2260MM 2280MM.
Specification:
Product model: AJK4816P
Product material: PC
Interface type: PCIE SSD to PCIE 3.0/X4/X8/X16
Support model: M.2 PCIE/NVME SSD
Transmission bandwidth: 32 Gbps (NVME)
Selling point: M.2 PCIE/NVME SSD to PCI-E 3.0 adapter card

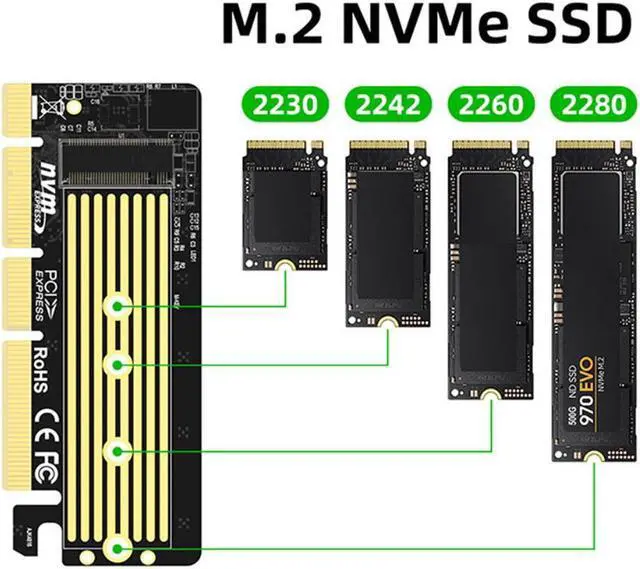

Support hard disk size: 2230/2242/2260/2280MM

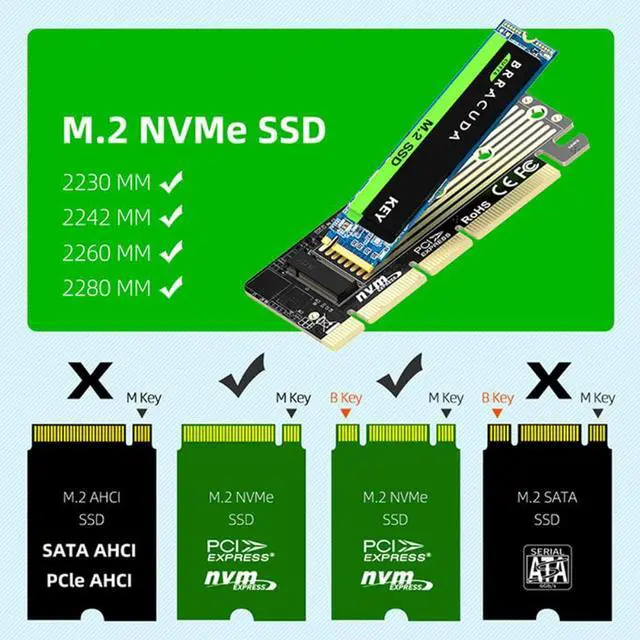

Support hard disk specifications: M KEY/B&M KEY (PCle NVMe) protocol M.2 SSD
Support system: for Windows
Product size: 100x40x1.6mm/3.94x1.57x0.06in
Product net weight: 60g
Package included
1 X Adapter Board
1 X Screw Pack
Note:
The product does not support U.2SATA protocol SSD (this product is just an adapter card without hard disk).
If you want to use it as a system boot disk, please confirm whether the motherboard supports the NVMe protocol.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
