Usage Scenario:Gaming,Household,Office,Industrial Computer,Workstation,Mining
Special Function:NONE
Back I/O Ports:1x RJ45
Support USB Type:USB 3.0
Max LAN Speed:1000Mbps
Onboard LAN:1x RJ45
Audio Channels:2.1
Supports M.2 SSD:2242
Number of M.2:1
Number of SATA Ports:2
Storage Interface Type:SATA
Number of PCI:1
Number of PCIe x 1:2
Number of PCIe x 4:0
Number of PCIe x 8:0
Number of PCIe x 16:1
Crossfire:SLI
PCI - E standards:PCI - E 4.0
Number Of Memory Slots:2
Support Memory Type:DDR3
Quality Certification:ce
Memory channel:Double
Form Factor:CeB
Package:Yes
Launch Date:2012
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
With CPU:Yes
Chipset:Intel B75
Application:Desktop,Server,Workstation,Mining,Industrial Computer
Socket Type:LGA 1151
Origin:Mainland China

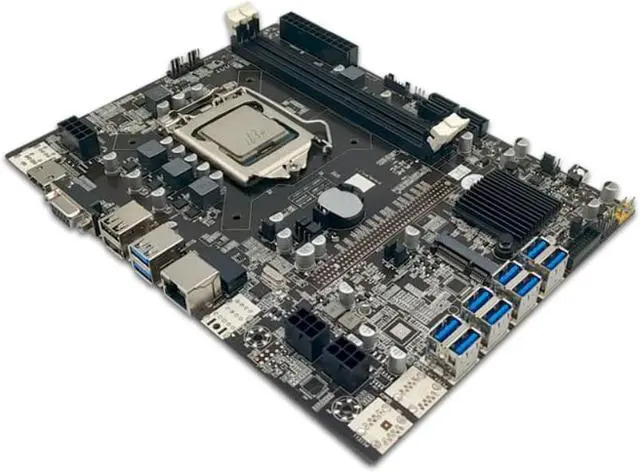

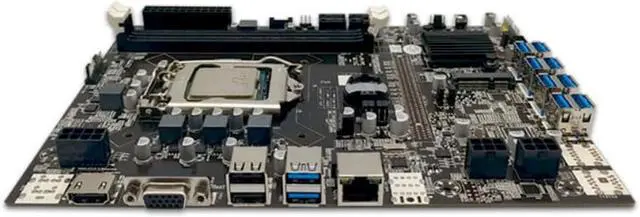

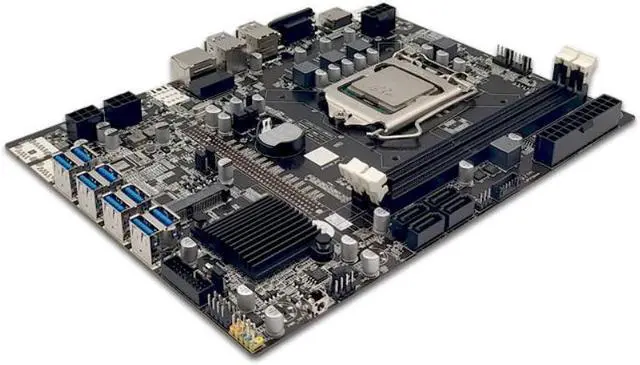

B75 BTC Mining Motherboard+Random CPU LGA1155 8XPCIE USB Adapter Support 2XDDR3 MSATA B75 USB BTC Miner Motherboard
The B75 USB-BTC motherboard uses all-solid capacitors to make the motherboard more stable
It supports LGA1155 CPU and uses the B75 chipset to give full play to the CPU performance
The motherboard is suitable for the mining industry due to its low price and rich expansion interfaces.
(1) Display interface: 1*HDMI-compatible, 1*VGA
(2) USB rear: 2*USB2.0
(3) USB front: 1*USB2.0
(4) USB rear: 2*USB3.0
(5) USB front: 1*USB3.0
(6) Hard disk interface: 4*SATA
(7) Graphics interface: 8*PCIE1X (USB transfer)
(8) Network card interface: 1*LAN 100M network card
(9) Memory slot: 2*DDR3
(10) CPU socket: LGA (1155)
(11) Chipset: BGA (B75)
(12) Hard disk interface: 1*MSATA
(13) BIOS initial restoration: JCMOS
(14) Speaker interface: 1SPK
(15) Power interface: 24pin_ATXPWR
(16) Power interface: 4pin_ATX12V
CPU type: Support For Intel 1155
Maximum memory capacity: support a total of 16G, a single maximum of 8G
Memory description: support 1333/1600MHz frequency
Network card chip: 1*REALTEK 100M network card
The appearance and color of different batches of products may be different, which will not affect the use
colour:Black
Material:PCB
size:230.32mm x 174.92mm
Package Contents:
1 x Motherboard
1 x CPU
The appearance and color of different batches of products may be different, which will not affect the use
Please note: The button will not be included becasuse of the custom problems
