PFC Type:Active
Number of SATA Ports:4
Graphics Card 12V Pin Number:2 x6 pin
D-type Bus Number:2
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop
Model Number:600w power supply
Input Voltage:90-264V
Modular:Non-Modular
80 PLUS Certification:80 PLUS BRONZE
Origin:Mainland China
Certification:NONE

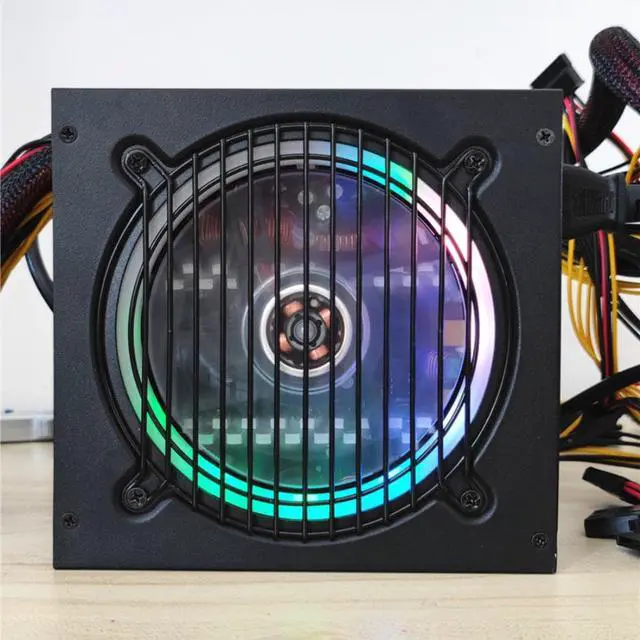

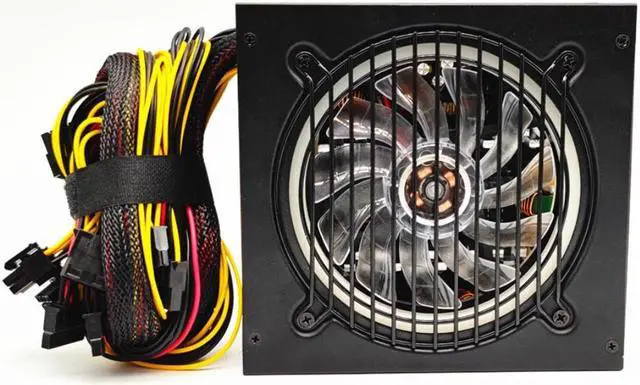

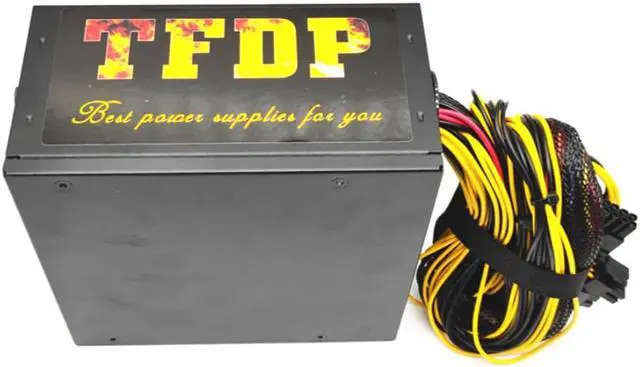

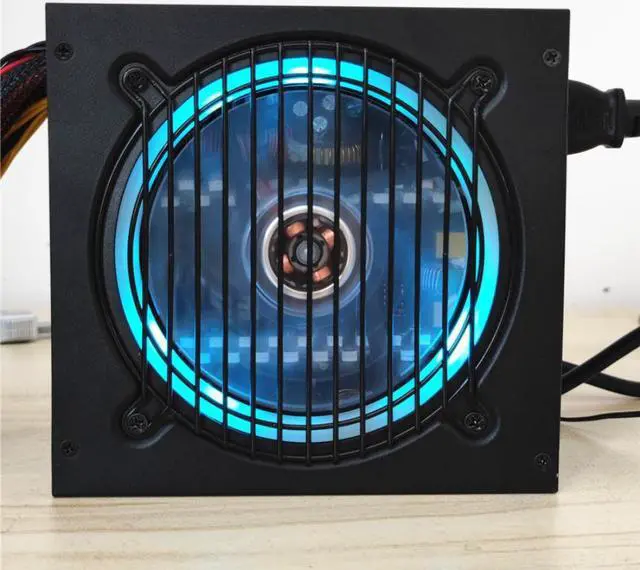

Real 600W PC Power Supply 800W 120mm Red LED Fan PC Power Supply ATX 12V Desktop Computer Gaming Power Supply dual CPU 110V
1: Power 600 watts, suitable for high-end computer configuration
2: Comply with Intel ATX12V specification design, support Intel, AMD full range ,
support dual cpu
3: Energy efficient silent fan
4: Built-in PFC, dual magnetic ring magnetic amplifier circuit, high frequency low resistance filter capacitor,
Ensure that the current is pure and stable
5: 12cm hydraulic bearing fan, quiet and durable, large air volume
6: Intelligent temperature control circuit design, automatically adjust fan speed, extend service life
7: Large speaker capacity, large capacity, support for wide use, can still be used under unstable voltage environment
general
8: Multi-function protection circuit design, with overvoltage, overcurrent, overload, undervoltage, short circuit,
Light protection
9: Innovative pest control technology design.
specification:
1: Power supply size: 160mm * 150mm * 86mm
2: Power standard: ATX 12V
3: Applicable to CPU range: AMD, Intel
4: PFC type: active PFC
6: Maximum power: 600W
7: Efficiency: 80%
8:
Input voltage: 90V-264V
9:+ 3.3V output current 20A
+ 5V output current 15A
+ 12V1 output current 48A
- 12V output current 0.3A
+ 5Vsb output current 2.5A
10: Support wide voltage: Yes
11: Support temperature control PWM: Yes
12: Certification: CB, CCC, FCC, Class, B, CE, ROHS
13: Product weight: 1900g
14: Support power: 20P / 24P motherboard
15: Power Output Design: Multiplex + 12V
16:IDE interface: 2
17: SATA interface: 4
18: CPU interface: 4+4*2
19: Video card interface: (6PIN + 2)* 2
