PFC Type:Active
Number of SATA Ports:8
Graphics Card 12V Pin Number:2 x6 pin
D-type Bus Number:5
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:1200w
Input Voltage:90-264v
Modular:Half Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

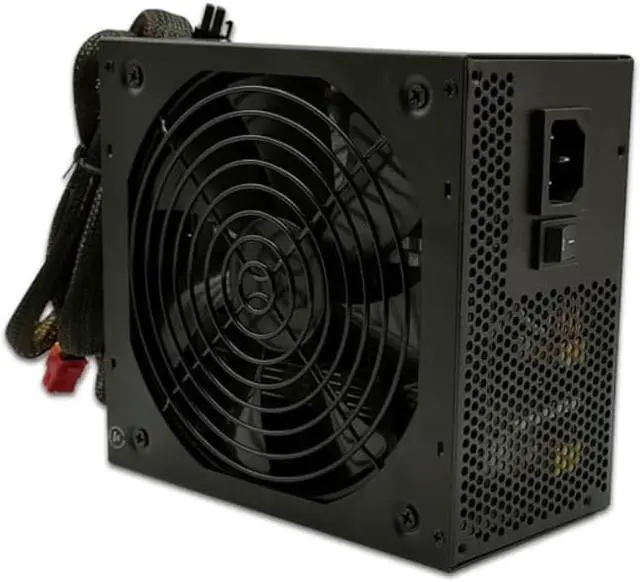

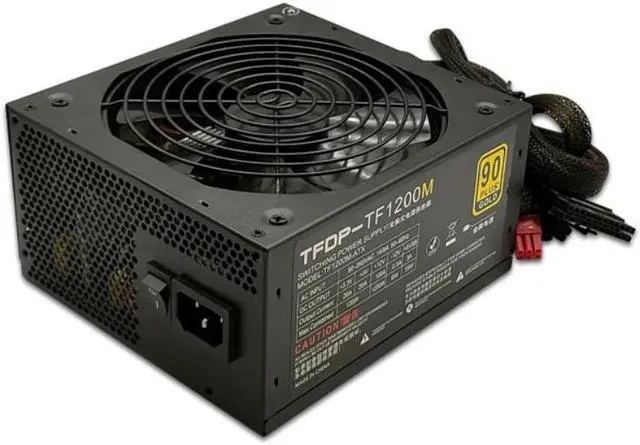

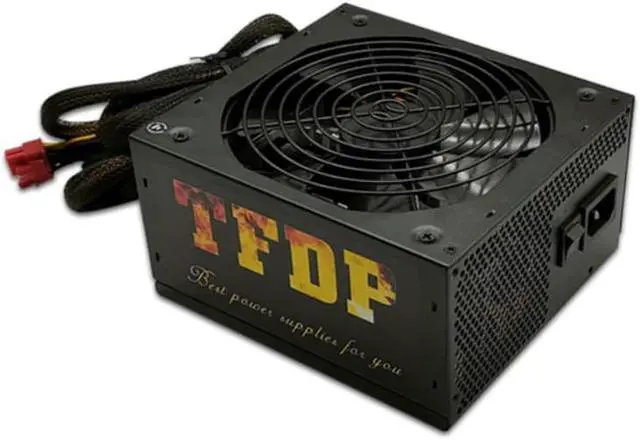

1000W 1200W Watt ATX Computer PC Power Supply for mining Semi Modular 90-264V 3 Year Warranty
90 PLUS Gold certified, with 90 percent (115VAC) / 92 percent (220VAC~240VAC) efficiency or higher under typical loads
Fan size/ Bearing: 130mm Hydraulic Dynamic Bearing for ultra quiet performance. Operating Temperature 0° to 50° C
Heavy duty protections, including OVP, UVP, OCP, OPP, and SCP
Connector :
20+4pin*1............................................. 56cm
4+4pin*1...............................................58cm
6+2pin +6+2pin.................................58+18cm
8pin to sata to sata to sata to sata ..........58+17+17+17cm
8pin to sata+IDE+IDE ..................................38+17+17cm*2
8pin to 6+2pin to 6+2pin..............................48+18cm*2
8pin to sata to sata to ide..............................38+17+17cm
