1200W ACTIVE ATX 12V PFC DESKTOP GAMING PC POWER SUPPLY 8PIN + 2X6PIN SILENT FAN 110V 220V

PFC Type:Active
Number of SATA Ports:6
Graphics Card 12V Pin Number:2 x6 pin
D-type Bus Number:4
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:1200M
Output:+3.3V
Input Voltage:90-264V
Modular:Half Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

1200W ACTIVE ATX 12V PFC DESKTOP GAMING PC POWER SUPPLY 8PIN + 2X6PIN SILENT FAN 110V 220V
Built-in APFC (Active Power Factor Correction) rates > 0.9
Smart semi-modular design offers easier cable management
90Plus Gold certified for 85%+ efficiency
Mesh sleeves reduce the blockage of system air flow
Equipped with DC-to-DC conversion circuit
Silent 14cm fan with optimized thermal fan speed control
Powerful single +12V rail offers compatible DC output
Complete over current protection and over temperature protection

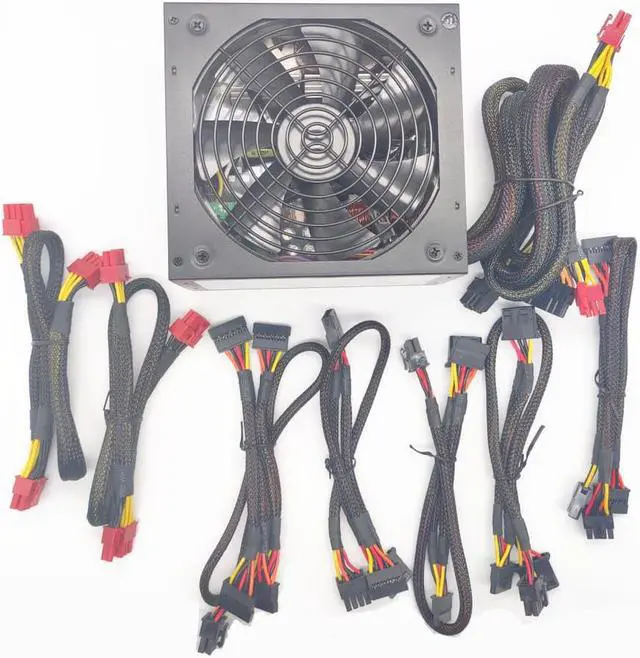

Connector :
20+4pin*1............................................. 56cm
4+4pin*1...............................................58cm
6+2pin +6+2pin.................................58+18cm
8pin to sata to sata to sata to sata ..........58+17+17+17cm
8pin to sata+IDE+IDE ..................................38+17+17cm*2
8pin to 6+2pin to 6+2pin..............................48+18cm*2
8pin to sata to sata to ide..............................38+17+17cm
