BTC-T37 8 GPU Desktop Computer Mining Machine Motherboard Set with CPU PCI Express 16X Graph Card DDR3 Miner Board

Usage Scenario:Mining,Others
Special Function:NONE
Back I/O Ports:DVI-A,HDMI 1.0,DVI-I,4 x USB 2.0,DVI-D
Support USB Type:USB 2.0
Onboard LAN:WIFI (AC)
Storage Interface Type:SATA,SATA 2,SATA 3
Number of PCI:4
Number of PCIe x 8:2
PCI - E standards:PCI - E 2.0
Support Memory Type:DDR3
Quality Certification:ce
Package:Yes
Maximum Ram Capacity:8 GB
Chipset Manufacturer:Intel
With CPU:Yes
Chipset:Intel H77
Application:Mining
Socket Type:Onboard CPU
Origin:Mainland China
Certification:CE
Model Number:BTC-T37

BTC-T37 8 GPU Desktop Computer Mining Machine Motherboard Set with CPU PCI Express 16X Graph Card DDR3 Miner Board Supports HDMI-compatible
Feature:
Memory slot: 8 graphics card plugs including HDMI-compatible+VGA+2*SATA+mSATA 3.0+8*PCIE 16X.
Durable: The motherboard of this mining machine is made for you, and it is durable.
Voltage stabilization: Stabilizing capacitors can provide a stable voltage for your power supply equipment.
Low energy consumption: It can ensure low power consumption, less heat generation, energy saving, and safe use.
Mute performance: The mainboard of this miner is noiseless during the working process and keeps mute at all times.
Specification:
Name: Mining motherboard CPU set
Model: BTC-37
processor:
On-board CPU: For Intel Celeron CPU 1037U 1.80GHz shipped randomly
Chipset: For Intel HM77 Chipset
Display: Onboard VGA+HDMI-compatible display output, or PCIEx16 extended discrete graphics card
Memory: 1*32G SODIMM DDR3 1066/1333/1600MHz memory slot (ECC memory is not supported)
Sound card: None
Network card: Onboard 1*Realtek RTL8111F Gigabit network card (supports Wake on LAN and PXE boot)
Storage: 1*SATA3.0+1*SATA2.0+1*mSATA2.0 hard disk interface
USB: 8*USB2.0
SuperIO: ITE IT8772E

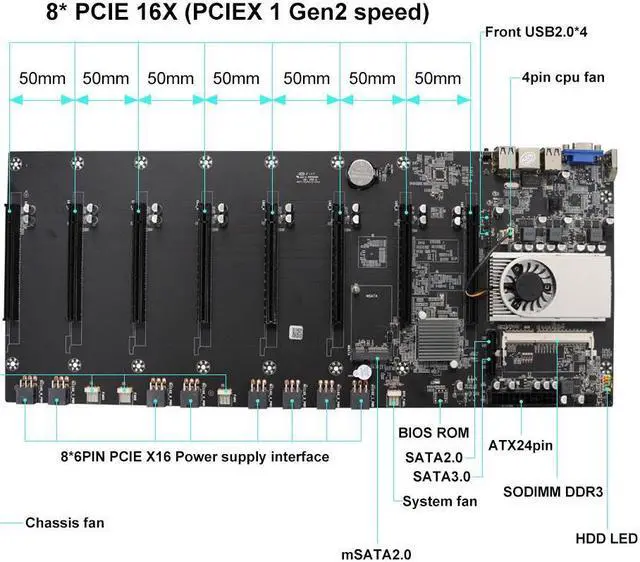

Expansion slot:
8*PCIE 16X slot (x1 GEN2 speed)
1*mSATA2.0 interface

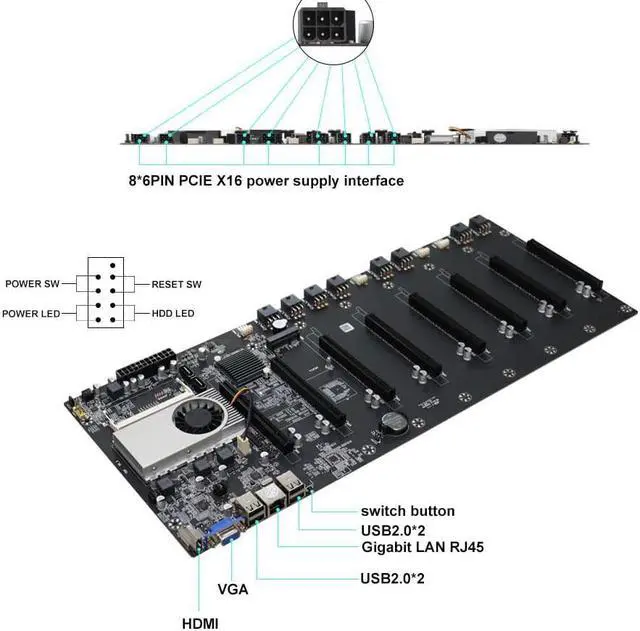

Rear I/O interface:
4*USB2.0 port
1*RJ45 port
1*HDMI-compatible port
1*VGA port
1*switch button
Internal interface:
1*JPS2 (extended PS2 KB+MS)
1*Serial COM pin
2*F_USB2.0 pin (expandable 4*USB2.0 port)
2*Vertical SATA interface (SATA1 3.0 speed, SATA2 2.0 speed)
1*F_PANEL pin
1*3PIN hardware power-on jumper
1*CPU_FAN pin
1*SYS_FAN pin
3*Chassis fan pin
1*mSATA2.0 interface
1*3PIN CLR_CMOS jumper
8*6PIN PCIEx16 slot power supply interface
1*BIOS ROM fetch/up interface
Power supply mode: ATX 24PIN+4PIN (the official board may be removed)

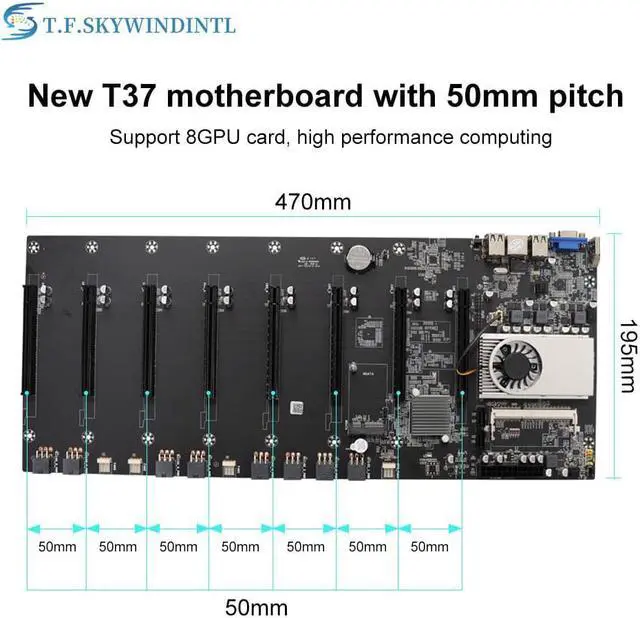

Board size: 470x195mm/18.5x7.68in
Product weight: 900g
Note:
Due to the large number of shipments in the IT industry, the backplane of each batch of products in the factory, the location of the memory slot, the color of the inserted material, and the network card may change, so please do not use this as a standard to describe the consistency of the product. But we guarantee that the described motherboard functions will not change.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
