PFC Type:Active
Number of SATA Ports:8
Graphics Card 12V Pin Number:2 x6 pin
D-type Bus Number:3
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:1800WMO
Input Voltage:90-264v
Modular:Full Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

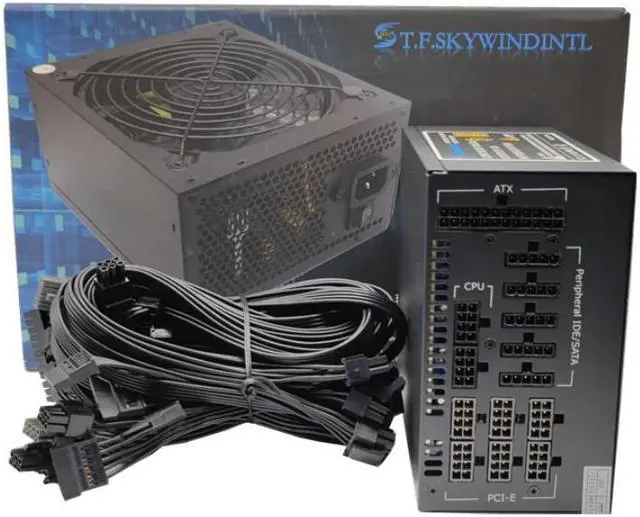

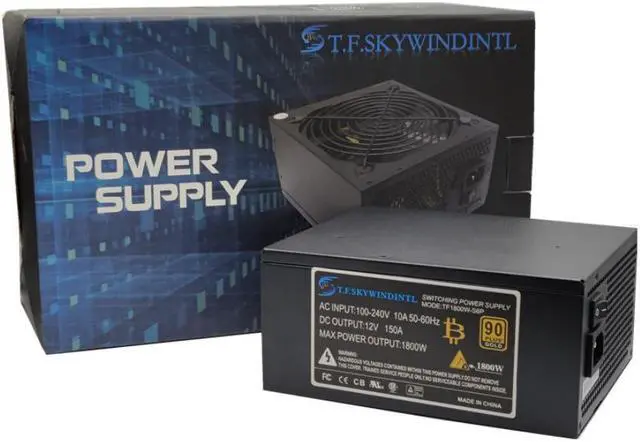

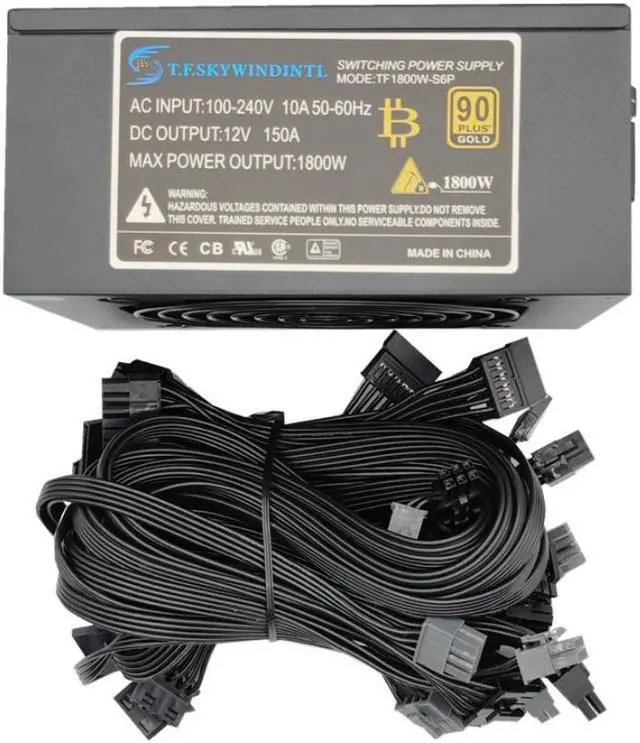

1800W ATX Computer Desktop Pc Power Supply 1800W Switching psu For 6 GPU 110V 220V Mining Miner btc Bitcoin Machine Supplies
Specifications:
1. Color: BLACK
2. Material:Steel shell
3. Fit for: Miner and other Server
4. Input Voltage: 90v-265v
5. Current: 10/5A
6. Power: 1800W in 220v
1500w in 110v
7. Mainboard: 24Pin
8. CPU: 4+4Pin*2
9. GPU: 6+2Pin * 12
10. IDE:3
11. SATA: 8
12. Frequency: 50 / 60Hz
13. Input: + 3.3V 25A; + 5V 25A (150W)
14. + 12V 50A (1400W)
15. -12V 0.5A (150W)
16. + 5VSB 2.0A (100W)
17: stable with high
effectiveness
18. GPU: Support Up to 6 GPU(Not included)
Please noted : This PSU Can works all over the wrold , can support dual CPU
Features:
- The smallest axis area, the largest fan area, with a special curved frame, to complete the best air circulation cooling system.
- Conversion rates up to 90% ,more energy efficient! More environmentally friendly!
- High reliability.
- Highly stable output voltage, better protects the product.
- This is a professional power supply for mining.
- The rated power is 1800w; and the maximum power is 2000w.
- Support 6 graphics cards
- Each power supply has to pass strict aging test before they go out.
- Suitable for minning machines and servers.
