DC Current:10A
AC Current:10A
DC Voltage:1000V
AC Voltage:1000V
Measuring Capacitance Range:100uF
Measuring Resistance Range:40M
Model Number:18B+
Dimensions:180 x 89 x 51.5 mm
Operating Temperature:0 - 40
Measuring Inductance Range:NO
Display Type:Digital display
DIY Supplies:ELECTRICAL
Certification:CE
Origin:Mainland China

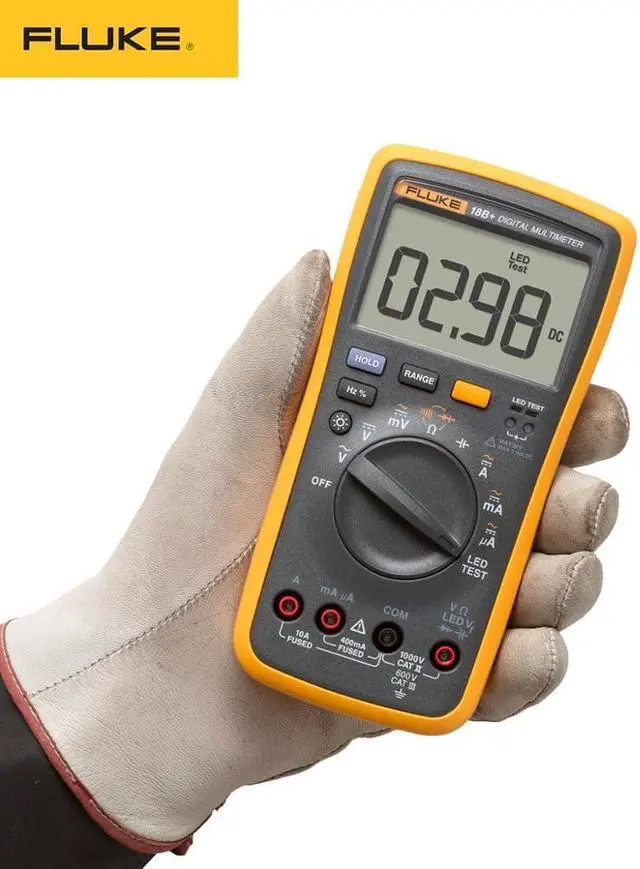

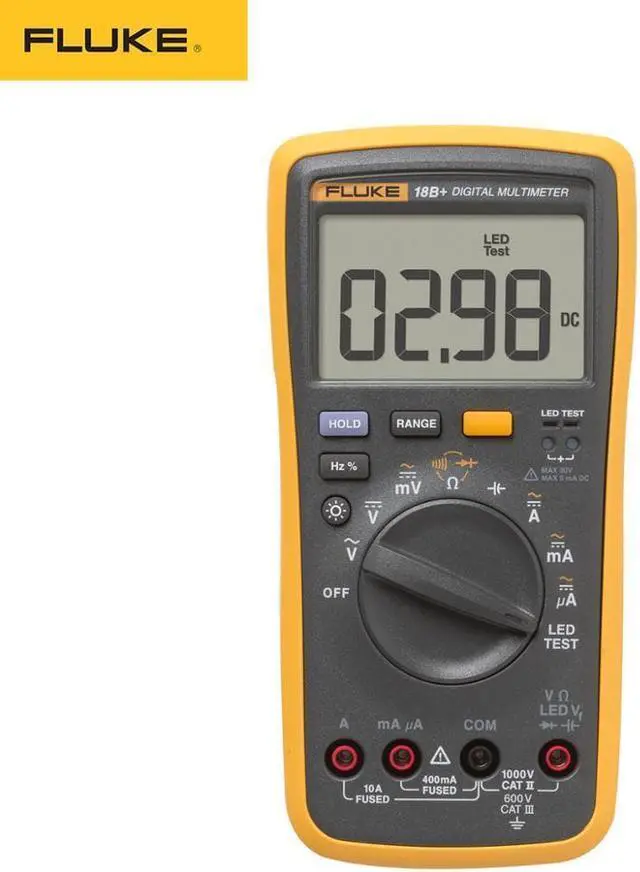

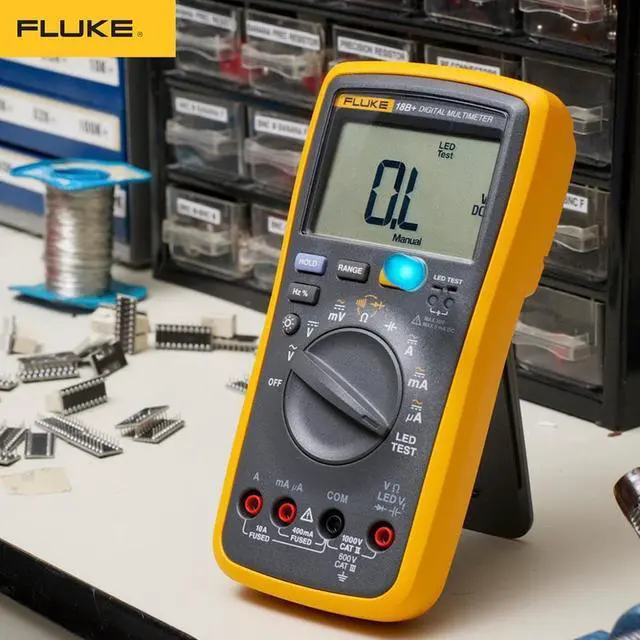

luke 18B+ LED AC/DC Voltage Current Digital Multimeter + Transducer AC Current Clamp Meter

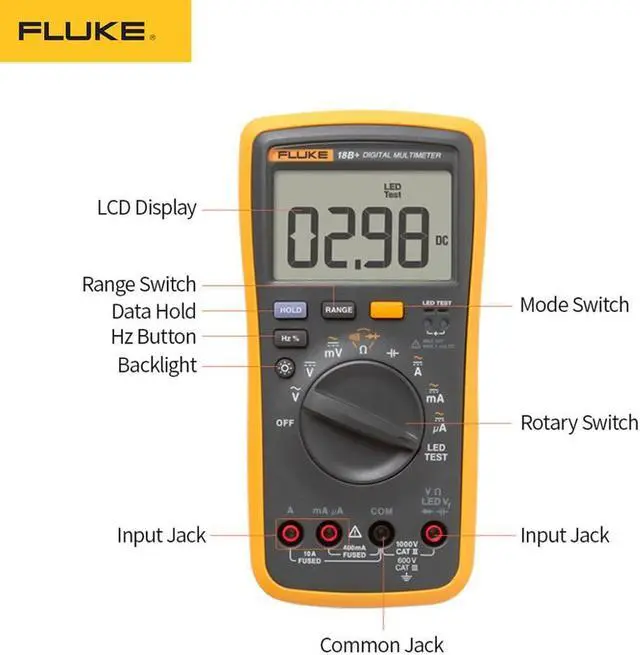

Features of Fluke 18B+ Multimeter:
Display 4000counts
LED test Yes
Auto/Manual range Yes
Data hold Yes
Diode test Yes
Continuity Yes
Auto power off Yes
Specifications:
Function Range Accuracy
Voltage DC 0.1mV~1000V ± (1.0%+3)
Voltage AC(40Hz~500Hz) 0.1mV~1000V ± (1.0%+3)
Current AC(40Hz~200Hz) 0.1uA~10A ± (1.5%+3)
Current DC 0.1uA~10A ± (1.5%+3)
Resistance 0.1~40M ± (0.5%+2)
Capacitance 0.01nF~100uF ± (2.0%+5)
LED test 2~6V DC 10%
Mechanical & General Specifications:
Size: 180 x 89 x 51.5 mm
Weight: 425g (included)
: 2x AA 1.5V
CAT class: CAT.III 600V CAT.II 1000V
