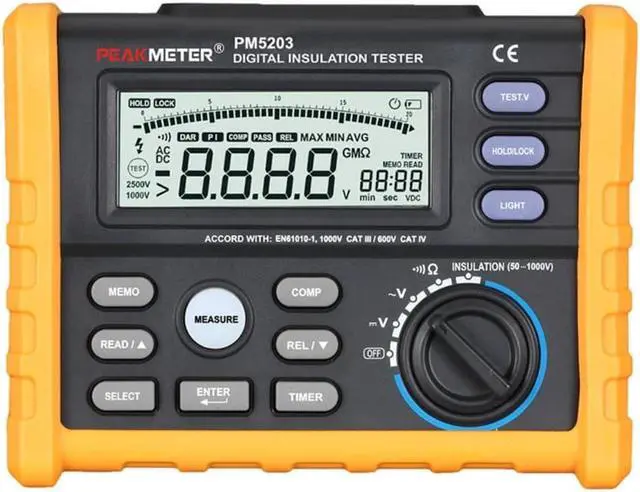

PEAKMETER MS5203 Analog and Digital 1000V Insulation Resistance Tester megger meter 0.01~10G Ohm with Multimeter

Dimensions:180 x 140 x 65mm
Operating Temperature:0~40C
Accuracy Class:3%+5
Testing Voltage:25V~1000V
Measuring Range:0.01M~10.00G Ohm
Model Number:MS5203
Display Type:Analogue and Digital
DIY Supplies:ELECTRICAL
Origin:Mainland China
Certification:CE
Store/ Load Function:YES
Auto Calculate PI and DAR:YES
Compare function:YES
Auto discharge for capacitive load:YES
Timer function for insulation test:YES
Lock function for insulation test:YES
Low indication:YES
DCV and ACV test:YES

PEAKMETER Analog and Digital 1000V MS5203 Insulation Resistance Tester megger meter 0.01~10G Ohm with Multimeter
Please note:send without
Features:
1.Checking the insulation of high-voltage electrical equipment (electric motor, transformer, and cable, etc.)
2.Use 50V-1000V voltage to test target insulation
3.It can measure up to 10G resistance
4.Short current up to 1.8mA
5.Automatically calculates PI (Polarization Index) and DAR (Dielectric Absorption Ratio)
6.AC/DC voltage measurement and continuity test
7.Display back light and auto power-off

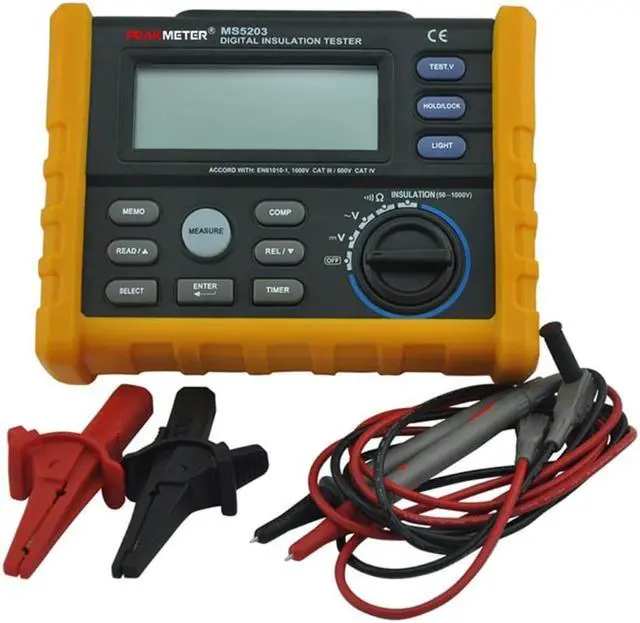

Package include:
1*MS5203 DIGITAL INSULATION TESTER
1*User Manual
2*Alligator clips

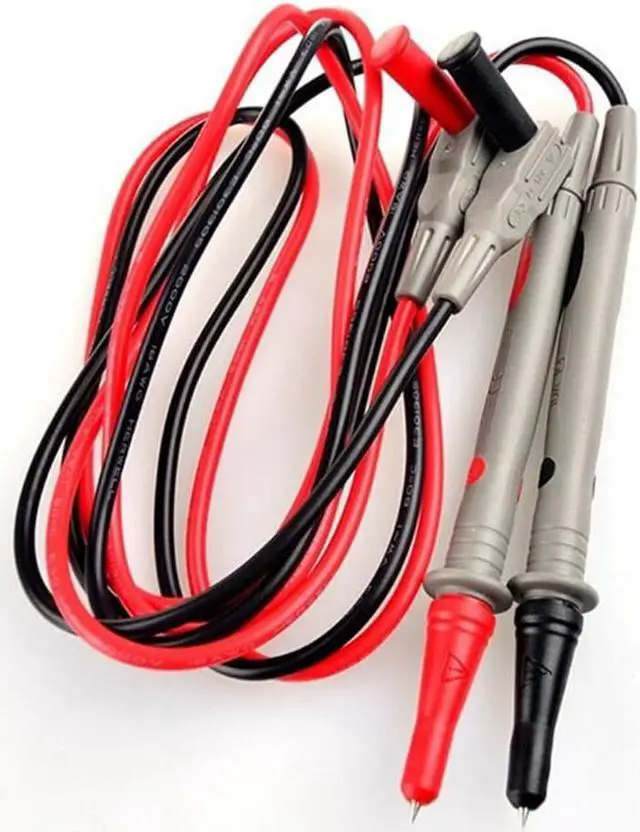

1*Test leads
1*Carry bag
