TopDiag BT400 4in1 Tester For OBD 2 Car Truck Analyzer Tester Diagnostic Tools Monitor With Software

Electronic:No
Material Type:Plastic
Item Weight:0.5kg
Item Height:7cm
Item Width:17cm
Item Length:20cm
External Testing Certification:ce
Voltage:8-30V
Power:W
Model Name:Topdiag BT400
Software Version:Latest version
Hardware Version:Latest version
Item Type:Testers
Origin:Mainland China
Certification:RoHS,FCC,CE
Item Name:TopDiag BT400 4in1 Tester For OBD 2 Car Truck Analyzer Tester Diagnostic Tools Monitor With Software
Function:tester
Function 1:OBD2 Voltage Detection
Function 2:Automobile Electric Leakage Detection
Function 3:Analyzer
Function 4:Electric Leakage Calibration
Function 5:With Software Upgrade
Function 6:Multi-language

TopDiag BT400 4in1 Tester For OBD 2 Car Truck Analyzer Tester Diagnostic Tools Monitor With Software

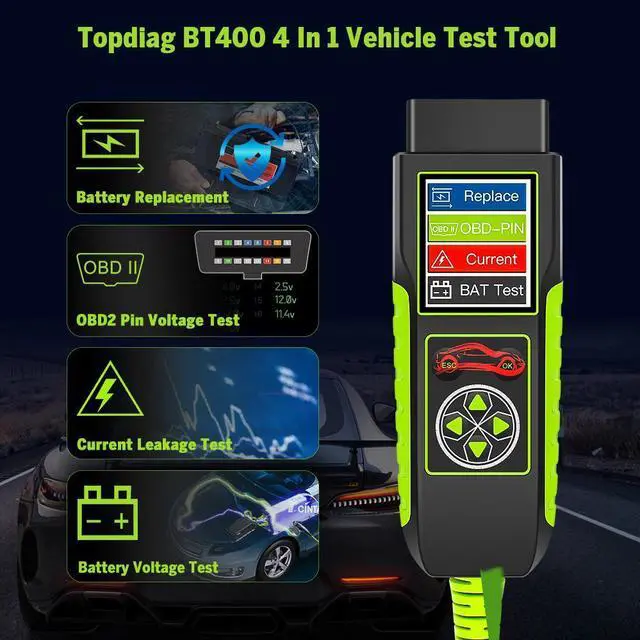

TopDiag BT400 4in1 functions
Automobile electric leakage detection
analyzing and testing
OBD 2 Voltage detection
replacement
Other Features
Electric leakage playback
Multi-language support
Support software upgrade
PRODUCT ADVANTAGES
replacement with ECU Memory Saved
Current leakage detection and Record data and waveform up to 30 minutes
OBD2 PIN OUT Voltage display
Professional analyzing start testing charging testing .
Automobile electric leakage detection
1.
Prepare an extra spare vehicle , Connect the device to the spare correctly with red clip to positive black clip to negative pole , Plug OBD2 adapter to thData Link Connector socket in the Vehicle.
2.
Select Current menu under ' Current 'functions . It will enter in the waveformmonitoring interface as fugure 3
3.
Unplug and the car fuse or related electrical components on the car to observe thecurrent changes , if there is a current drop instantly or abnormal , it proves that there is aossibility of leakage in the fuse circuit or the related components issue , Compare thecircuit diagram of the car electrical system and locate the leakage point.
Note:
The device can save the data of leakage current for 30 minutes , and view the results through 'playback wavefor'

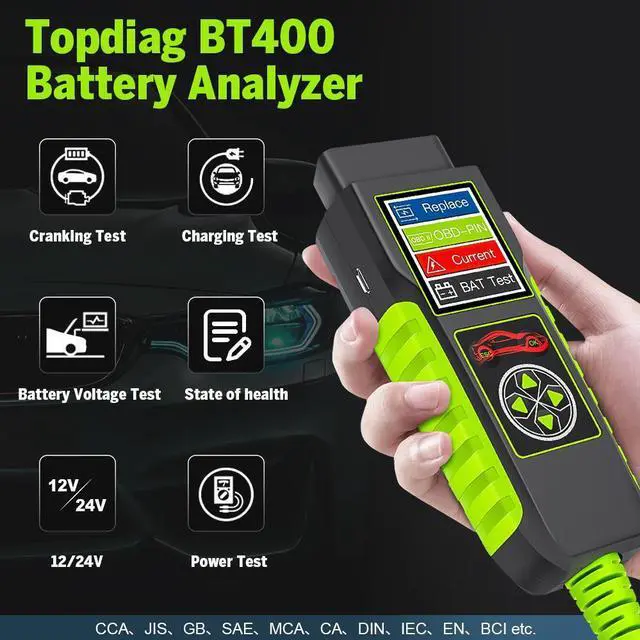

analyzing and testing
choose " BAT Test Function , Then press OK to enterand other different test standards
OBD 2 Voltage detection
choose'obd-pin' Function, Press the OK key to enter,and you can view the voltage value of each pin of OBD2 Connector
Electric leakage playback
replacement
Prepare an extra spare vehicle , Connect the device to the spare correctlywith red clip to positive black clip to negative pole , Plug OBD2 adapter to the Data LinkConnector socket in the Vehicle Selecte the 'Replace 'function , Press OK keyto enter , and follow the steps as displayed to continue .
Multi-language support
Support English,Spanish,German,French,Italian,Portugal,Polish,Chinese,Japanese,Korean
Support software upgrade
PRODUCT PARAMETERS
Connection Unit : OBD2 Adapter with Clip
Device working voltage : 8-30VDC
Leakage cument detection range : 15MA-5A
CCA Standards range : 20-2000 CCA
Circuit Breaker Limitation : 5A
