(30pcs/lot) OBD2 ELM327 v1.5 PIC18F25K80 Chip Gasoline Car Scanner Wireless OBDII Code Reader CAN for Android Torque Windows

Software Update:No
Language:English
Software Version:
Hardware Version:V1.5
Origin:Mainland China
Item Type:Code Readers & Scan Tools
Certification:CE
Firmware Version:v1.5
Protocol:OBD2
Chip:pic18f25k80
Support Operating System:Andriod or Windows
BT-2.0 Password:1234
BT-2.0:2.0
Item name:ELM327 v1.5 BT-2.0
Work With:Gasoline Car
Do NOT Work With:Diesel Car

(30pcs/lot) OBD2 ELM327 v1.5 PIC18F25K80 Chip Gasoline Car Scanner Wireless OBDII Code Reader CAN for Android Torque Windows

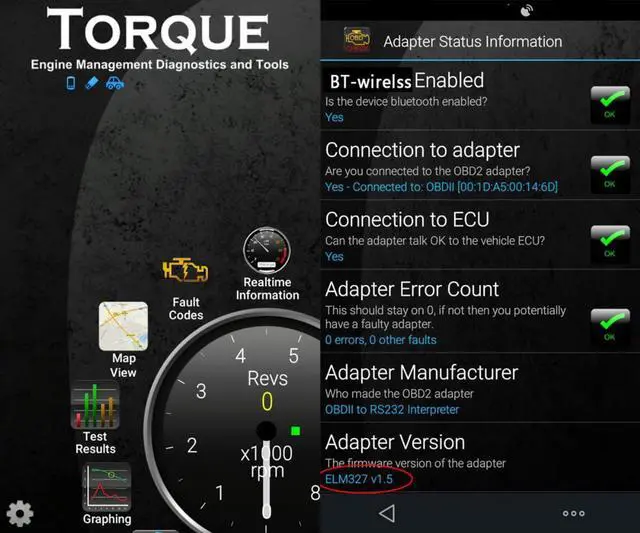

Recommended program :
For android system:
Torque, OBD Car Doctor, Opendiag, ....
For
Windows system:
SCAN Master

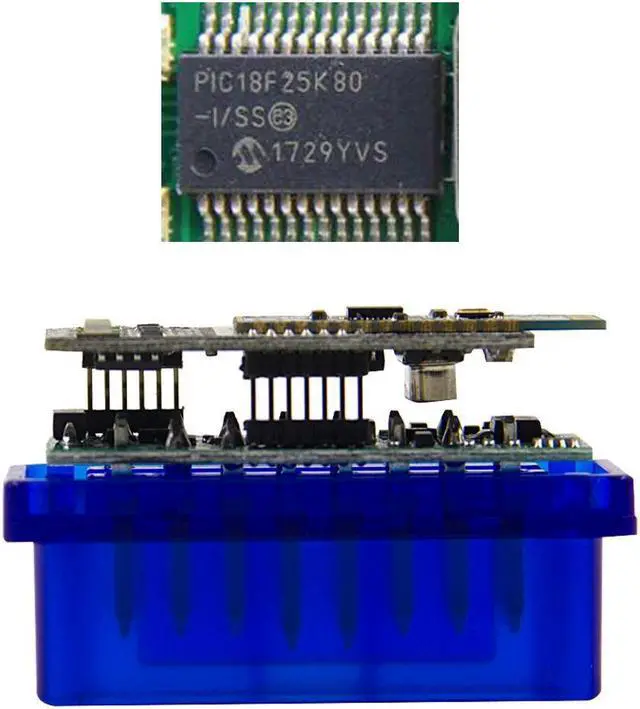

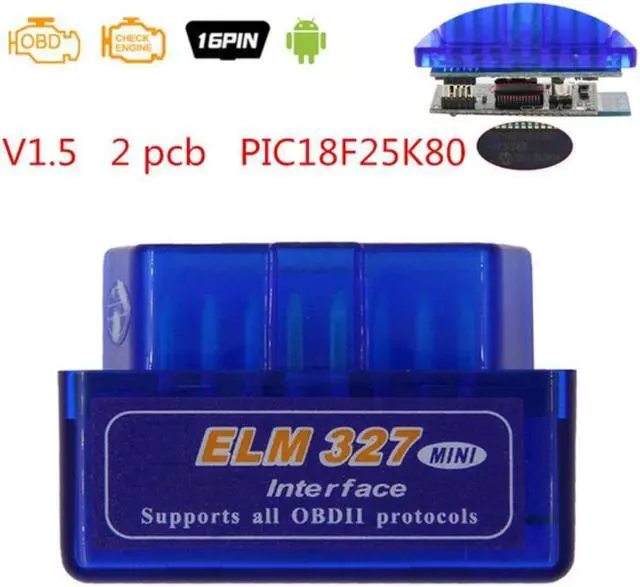

ELM327 V1.5 with Double PIC18F25K80 Chip:
Blue:
V1.5 Super Mini ELM327 BT-2.0 OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol works on Android Windows Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
With PIC18F25K80 chip V1.5 Super Mini ELM327 BT-2.0 OBD2 Scanner for Multi-brands CAN-BUS Supports All OBD2 Protocol
Top 5 Reasons To Get Super MINI ELM327 BT-2.0
1. Software Version: V2.1
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (BT-2.0)
5. Software included for Palm, PDA, Windows PC, Windows Smartphone
6.
6. Best quality with
PIC18F25K80
chip
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Super Mini ELM327 BT-2.0 Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ( "Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Packing list:
1pc x Super MINI ELM327 BT2.0 V1.5
