Important At present, we are exchanging packing box, the instructions on the old packing box is not in conformity with the product.Please don't worry
The product you received is exactly as described on the website.Please ignore the wrong descriptions on the box
Parameter Input
AC 100V~240V, 50/60HzOutput Voltage
DC 12V / 15V / 16V / 18V / 19V / 22V / 24V Adjustable Output Current
6A Max @ DC 12V / 15V / 16V4A Max @ 18V / 19V / 22V / 24VOutput Wattage:96W MaxDC Plug Polarity
inside"+", outside"-" AC Cable length
47in/120cmDC Cable length
39.4in/100cmAdapter size

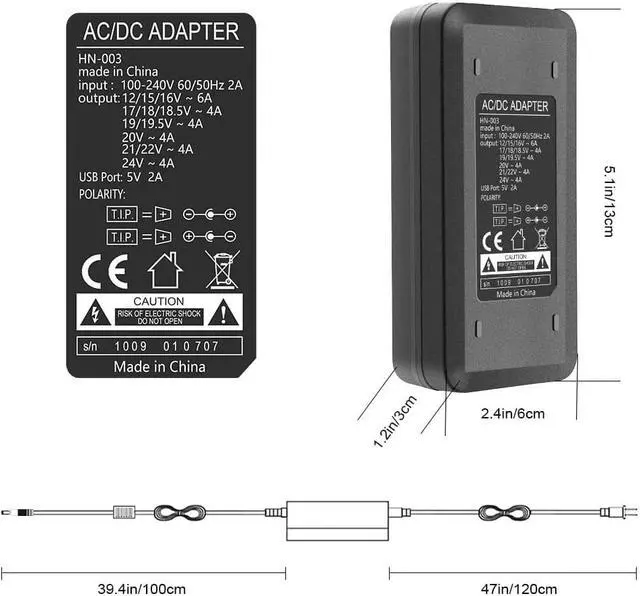

5.1in/13cm x 2.4in/6cm x 1.2in/3cmSafety Compliance
FCC / CE/ RoHS / CCCWeight

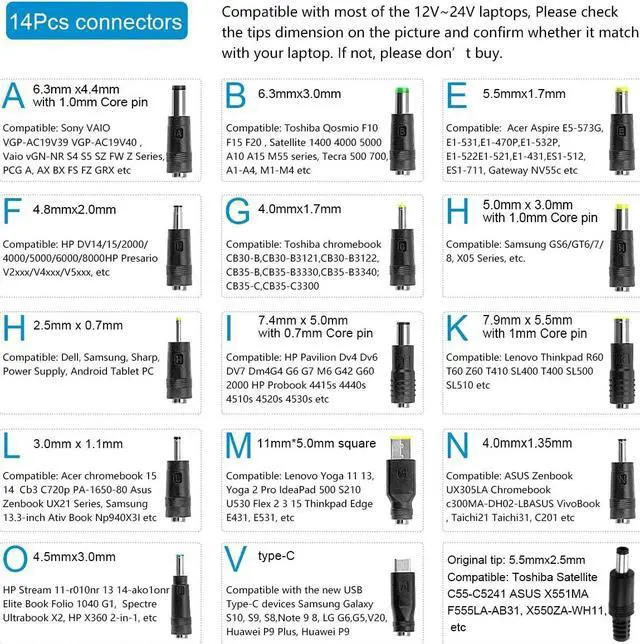

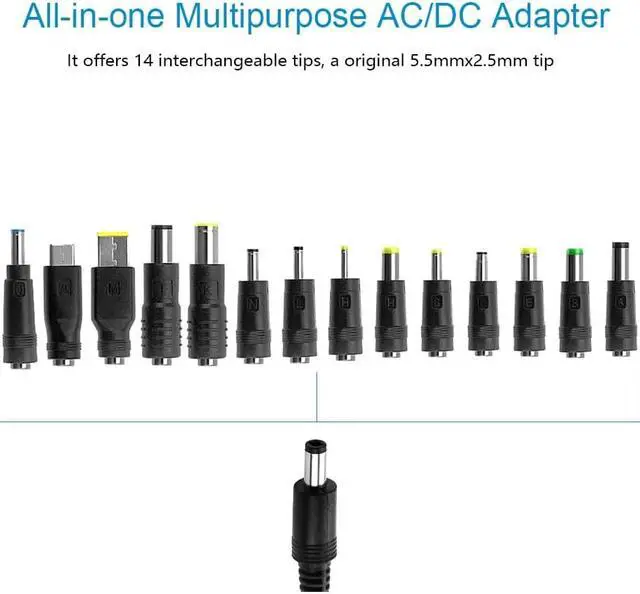

0.88lb / 400g Tips Dimension Original tip
5.5mmx2.5mm A
6.3mm x4.4mm with 1.0mm Core pin B
6.3mmx3.0mmE:5.5mmx1.7mmF:4.8mmx2.0mm G
4.0mmx1.7mm H-L
5.0mm x 3.0mm with 1.0mm Core pin H-S
2.5mm x 0.7mmI
7.4mm x 5.0mm with 0.7mm Core pinK
7.9mm x 5.5mm with 1mm Core pin L
3.0mm x 1.1mm M
11mm*5.0mm squareN
4.0mmx1.35mm O
4.5mmx3.0mm V
type-C DC terminal connectorPlease refer to the product picture to check the compatible device Kindly note 1.This is an adjustable voltage power supply
Make sure to change the voltage dial to the correct voltage
Otherwise, your device may be damaged
2.DC Plug Polarity
inner positive(+), outer negative(-)
Some musical device requires inner negative and outer positive, please check carefully before buying.? Package included 1x Power supply adapter? 1x power Cable14 x DC tipsBrief content visible, double tap to read full content.Full content visible, double tap to read brief content
