Jansicotek HDMI Audio Extractor Converter 5.1CH Audio Splitter 1080P Stereo Analog HDMI to HDMI Optical SPDIF RCA L/R Adapter Converters Support Full HD,4K@30Hz,1080P,3D
- HDMI to HDMI + Optical TOSLINK SPDIF + Analog RCA L/R Stereo Audio Video Splitter Adapter Converter
- * HDMI to achieve the synchronization of audio signal separation.Provide Pass, 2CH and 5.1CH three kinds of audio mode options, meet your different need.
- * SPDIF output supports 5.1CH Dolby Digital, DTS (Dolby Digital Plus not Supported). Analog RCA L/R Output Supports 2CH PCM Stereo Audio.
- * Support HD resolution 4K@30Hz and HD 3D graphics,input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz. transmission distance up to 49ft with the AWG26 HDMI standard cable.
- * Supports 24 bit/deep color 30bit, 36bit per channel (36bit all channel) deep color,compatible with Apple TV,Blu-ray DVD Player, Xbox One, SKY HD box,PS3 PS4 (5.1 Channel not supported on PS3).
- * LED indicator: When the converter power is turned on, the red LED indicator will light up; when successfully connected to the HD TV, the green LED indicator will light up.
+
+
Overview
Specs
Reviews
Description:

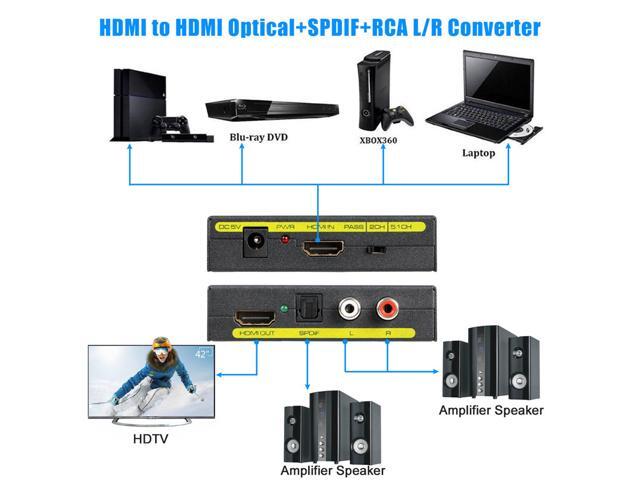

4K HDMI to HDMI Audio Extractor: avedio links HDMI to optical audio adapter is designed to extract the digital audio embedded in HDMI source and output it via optical SPDIF or RCA L/R stereo audio out. Original video/audio signal is also passed through to HDMI output. Then you will be able to send the splitted audio to an amplifier, AV receiver, soundbar or other sound systems. (Note:This hdmi sound extractor not support ARC)
4K High Video Resolution: HDMI audio converter support resolution up to 4K@30hz, HDMI 1.4b, HDCP 1.4, Full HD 1080P, 3D,and 36-bit deep color.Support audio format: DTS-HD/Dobly-trueHD/LPCM7.1/DTS/Dobly-AC3/DSD
Three Audio Mode: avedio links HDMI audio adpter with PASS, 2CH, 5.1CH Three Audio Mode Options, RCA L/R output support PASS 2CH PCM, Optical SPDIF output support PASS 2CH PCM, 5.1CH Dobly Digital, DTS
Wide Compatible: HDMI to HDMI plus audio converter compatible with various HDMI source devices. HDMI input: Blu-ray player, DVD, HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/PS4/PS4 Pro/PS5, Xbox, PC/laptop, HD camera, Chromecast, Fire Stick, Roku,HD DVR etc. HDMI Output: Full HD TV, Monitor, Projector. Audio output: Speaker, amplifier,soundbar or other sound systems.
Package Included: 4K HDMI Audio Splitter x1, 5V/1A DC Power Adaptor x1, User Manual x1. This HDMI audio extractor converter can effectively achieves audio synchronization separation and provide high quality audio and video transmission, make your life more easy and colorful.
Three Audio mode settings:
PASS Mode: The output audio format depends on the HDMI input signal.
2CH Mode: Set 2CH to get analog stereo audio. Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA L/R analog/Optical SPDIF output at the same time
5.1CH Mode: Set 5.1CH to get 5.1 digital surround.(HDMI input source must support 5.1CH), Which can be extracted via Optical SPDIF output. It support LPCM 7.1CH,Dobly TrueHD,and DTS-HD Master Audio.
Note: If you choose optical audio out, you can enjoy 5.1CH or 2CH or pass audio mode. If you choose L/R audio out, you can enjoy 2CH or pass mode.
Features:
One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options
Support 4K@30hz, 1080P, support 3D
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Specificaitions:
HDMI resolution: 4K@30hz/3D/1080p/1080i/720p/576p/576i/480p/480i
Support audio format: DTS-HD/Dobly-trueHD/LPCM7.1/DTS/Dobly-AC3/DSD
Support video color format: 24bit, 30 bit, 36bit deep color
Max bandwidth:340MHz
Max baud rate:10.2 Gbps
Package included:
HDMI to HDMI Audio Converter x1;
5V Power Adapter x1;
User manual x1;
Perfect solution for extract audio from your input source to your amplifiers or receivers
HDMI audio extractor is designed to extract the digital audio embedded in HDMI source and output it via optical SPDIF (up to 5.1 Dobly Digital or DTS) or 2CH RCA L/R stereo audio out at s
4K HDMI to HDMI Audio Extractor: avedio links HDMI to optical audio adapter is designed to extract the digital audio embedded in HDMI source and output it via optical SPDIF or RCA L/R stereo audio out. Original video/audio signal is also passed through to HDMI output. Then you will be able to send the splitted audio to an amplifier, AV receiver, soundbar or other sound systems. (Note:This hdmi sound extractor not support ARC)
4K High Video Resolution: HDMI audio converter support resolution up to 4K@30hz, HDMI 1.4b, HDCP 1.4, Full HD 1080P, 3D,and 36-bit deep color.Support audio format: DTS-HD/Dobly-trueHD/LPCM7.1/DTS/Dobly-AC3/DSD
Three Audio Mode: avedio links HDMI audio adpter with PASS, 2CH, 5.1CH Three Audio Mode Options, RCA L/R output support PASS 2CH PCM, Optical SPDIF output support PASS 2CH PCM, 5.1CH Dobly Digital, DTS
Wide Compatible: HDMI to HDMI plus audio converter compatible with various HDMI source devices. HDMI input: Blu-ray player, DVD, HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/PS4/PS4 Pro/PS5, Xbox, PC/laptop, HD camera, Chromecast, Fire Stick, Roku,HD DVR etc. HDMI Output: Full HD TV, Monitor, Projector. Audio output: Speaker, amplifier,soundbar or other sound systems.
Package Included: 4K HDMI Audio Splitter x1, 5V/1A DC Power Adaptor x1, User Manual x1. This HDMI audio extractor converter can effectively achieves audio synchronization separation and provide high quality audio and video transmission, make your life more easy and colorful.
Three Audio mode settings:
PASS Mode: The output audio format depends on the HDMI input signal.
2CH Mode: Set 2CH to get analog stereo audio. Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA L/R analog/Optical SPDIF output at the same time
5.1CH Mode: Set 5.1CH to get 5.1 digital surround.(HDMI input source must support 5.1CH), Which can be extracted via Optical SPDIF output. It support LPCM 7.1CH,Dobly TrueHD,and DTS-HD Master Audio.
Note: If you choose optical audio out, you can enjoy 5.1CH or 2CH or pass audio mode. If you choose L/R audio out, you can enjoy 2CH or pass mode.
Features:
One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options
Support 4K@30hz, 1080P, support 3D
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Specificaitions:
HDMI resolution: 4K@30hz/3D/1080p/1080i/720p/576p/576i/480p/480i
Support audio format: DTS-HD/Dobly-trueHD/LPCM7.1/DTS/Dobly-AC3/DSD
Support video color format: 24bit, 30 bit, 36bit deep color
Max bandwidth:340MHz
Max baud rate:10.2 Gbps
Package included:
HDMI to HDMI Audio Converter x1;
5V Power Adapter x1;
User manual x1;
Perfect solution for extract audio from your input source to your amplifiers or receivers
HDMI audio extractor is designed to extract the digital audio embedded in HDMI source and output it via optical SPDIF (up to 5.1 Dobly Digital or DTS) or 2CH RCA L/R stereo audio out at s
