8dBi RP-SMA Dual Band 2.4GHz 5GHz 5.8G + 2 x M.2 IPEX 4 MHF4 Cable Antenna for NGFF Wireless Cards M.2 3G 4G Cards for Intel AX201 AX200 9260 9560 8260 8265 7260 NGFF Wireless Card Routers PC FPV etc

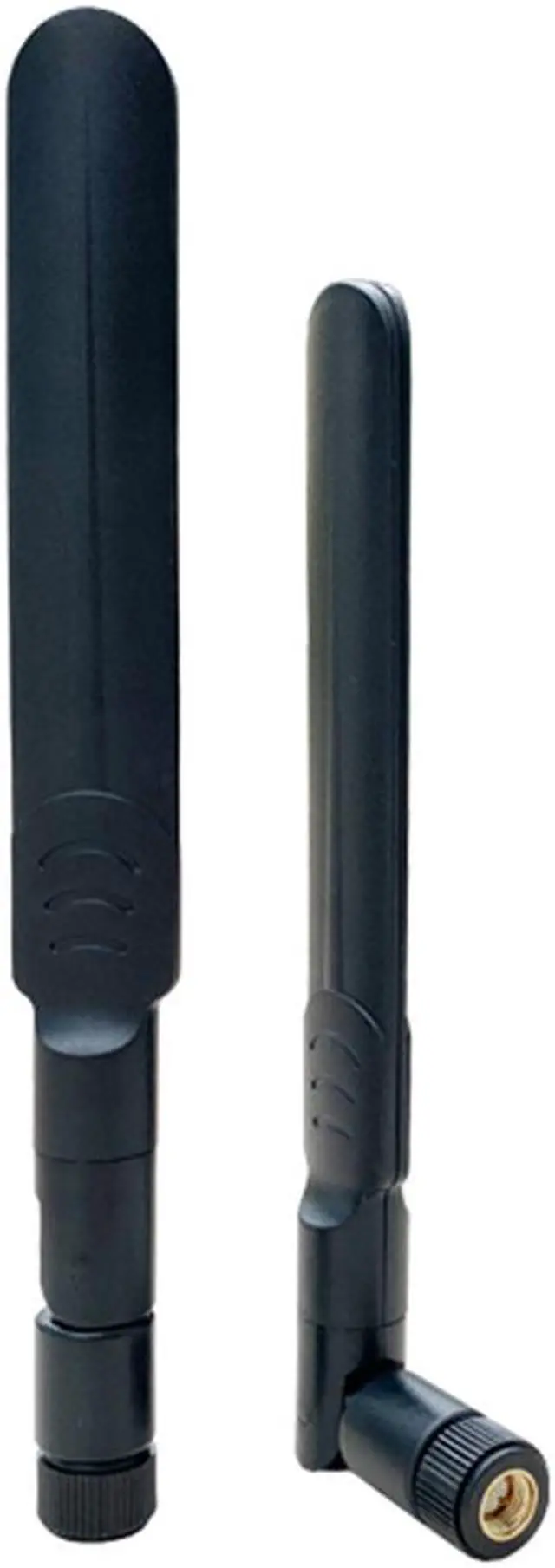

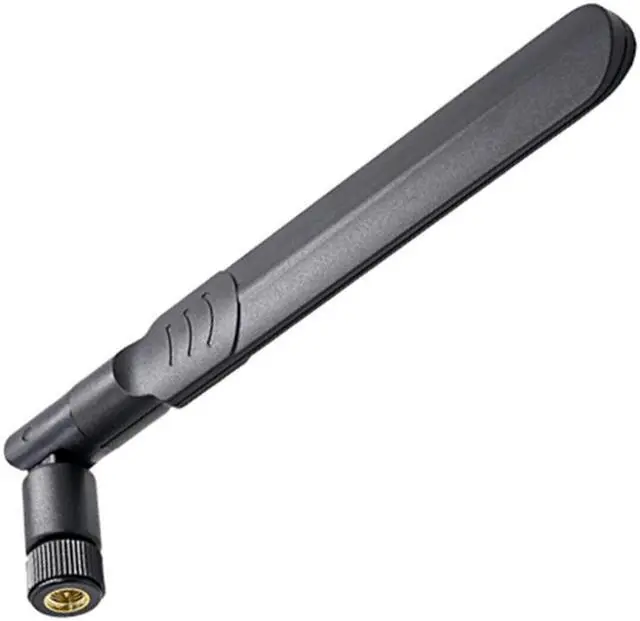

Omnidirectional Aantenna Specifications:
V.S.W.R = 2
Max Power 50w
Connector RP-SMA male
Height 15.5 CM
Gain(dBi) 8dBi 0.7dbi
Applications WiFi / WiMAX / LTE
Frequency & Gain
5dBi ± 0.5dBi @ 2400~2500MHz
8dBi ± 0.5dBi @ 5100~5800MHz
Efficiency: 2400-2500 MHz 900-5900 MHz
Compliant with 802.11ax, 802.11ac, 802.11n, 802.11b & 802.11g
Compatible with intel NGFF M.2 desktop kit for example intel ax200 ax201 8265 ect Bluetooth devices wifi desktop card, Wireless Access Points & other wireless devices
As access point antenna: Provides signal to clients in any direction (360-degree horizontal beamwidth).
Compatible with 802.11a,b,g,n and 802.11ac 802.11ax and other Dual Band 2.4GHz / 5.8 GHz applications.

Antenna Cable Specifications:
MHF4 To RP-SMA female (bulkhead)
Length: 8 inches
Applicable cable: 0.81mm RF coaxial cable
Frequency Range: DC up to 6GHz (VSWR: 1.3 max. at 0.1~3GHz; VSWR: 1.4 max. at 3~6GHz)
High productivity: Easy cable termination by “i-Fit” without soldering
Application Technology: IEEE802.11 ax/ax/a/b/g/n, WiMax, Zigbee, Bluetooth Wireless

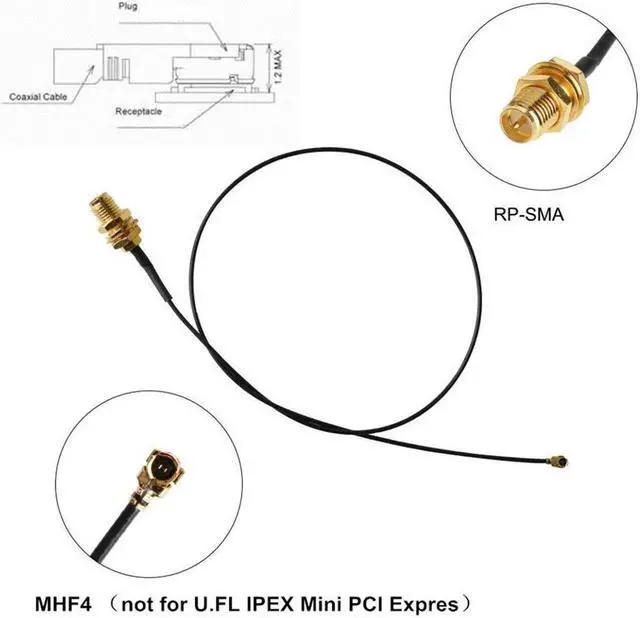

One end has an MHF4 connector, and the other end has an RP-SMA female connector with a bulkhead-mount.

RP-SMA Female connector includes a bulkhead nut and washer:
You can use this to mount the connector (and thus the cable) on the wall of an enclosure (to weatherproof the cable connection), case or Printed Circuit Board (PCB).
Weatherproofing: Seal the hole where the female connector is mounted, by placing an O-ring between the wall of the enclosure and the bulkhead nut & washer on the female connector.
The length of our standard RP-SMA-female connector (threaded part) is 3/8 inches.

RP-SMA Female connector composition:
Center Contact: Beryllium Copper, Gold Plated
Connector Body: Brass, Gold Plated
Crimp Ferrule: Copper, Nickel Plated
Insulators: PTFE
RP-SMA is a round score

The cable is 1.13mm mini-coaxial cable (50-ohm antennas and cables.): This is a very thin and flexible cable, with a black jacket. When connecting the U.FL connector to a jack on a miniPCI card or board, often the tight space requires the use of 1.13mm cable, because it is very thin and flexible (diameter is 1.13mm). This very thin cable is typically needed in tight spaces inside of enclosures so that the U.FL connector will snap down on the jack without popping off.

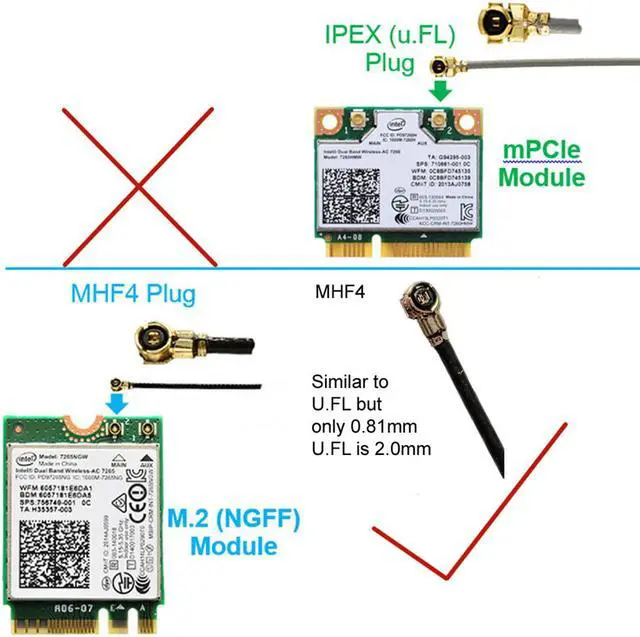

Our MHF4 to RP-SMA series coaxial cables have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz. MHF4 miniature RF coaxial connector is the smallest mini RF connector in the world. Only 1.2mm low profile, MHF4 IPEX/IPX connector provides good working performance in various applications of Wireless LAN.
With their small size and high operational frequency ranges MHF4 connectors can be used for a variety of Bluetooth and wireless LAN applications in gaming equipment, test points, mobile phones, access points, GPS, notebook computers, and wireless communication devices
