HDMI 2.0 Switch 3 Input 1 Output Switch HD 4Kx2K@60HZ HDR, 3D 1080P Remote/Manual switching for Xbox,PS4 Nintendo Switch/Wii,Beamer,DVB receiver,Blu-ray,DVD players,Apple TV,Roku Stick/Fire Stick,PC

HDMI 2.0 Switch 3 Input 1 Output Switch HD 4Kx2K@60HZ HDR, 3D 1080P Remote/Manual switching for Xbox,PS4 Nintendo Switch/Wii,Beamer,DVB receiver,Blu-ray,DVD players,Apple TV,Roku Stick/Fire Stick,Computers

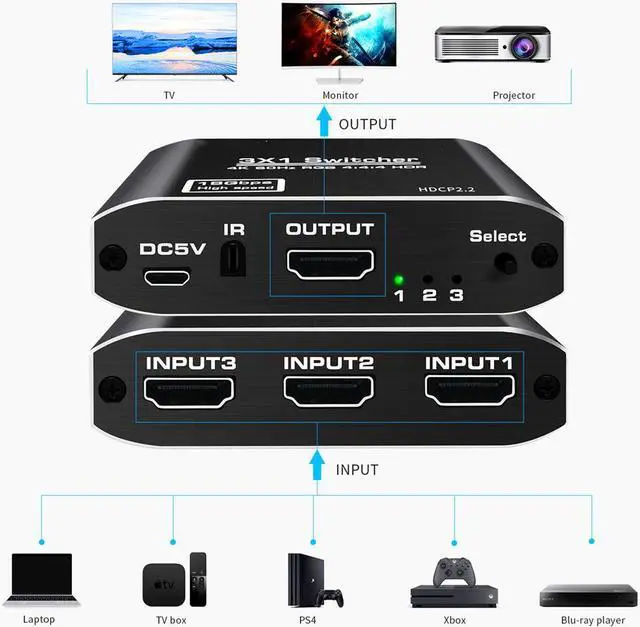

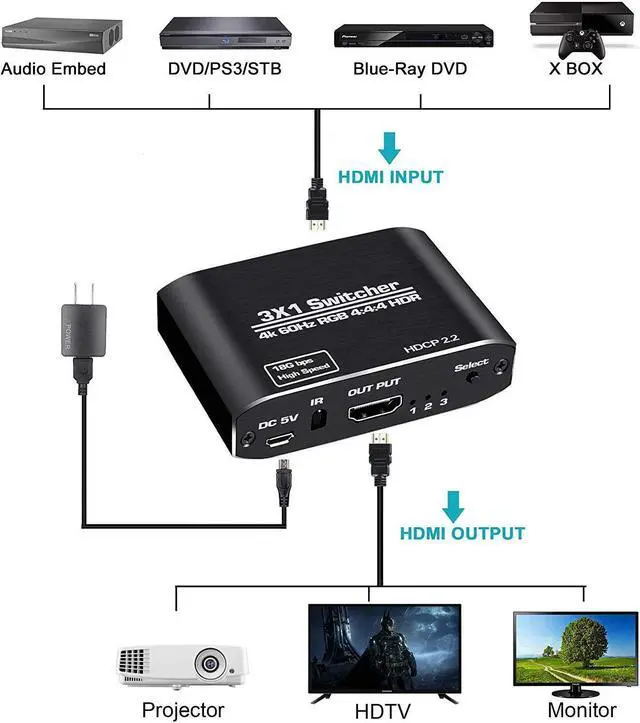

2.0 HDMI 3 input 1 output :The HDMI switch box can easily transmit video and audio from 3 HDMI devices to 1 HDMI display, such as a high-definition TV, monitor or projector. After dividing the signal, no flash or drop will be lost.

The latest HDMI V2.0b version: This 3-port HDMI2.0b HDCP2.2, supports HD 4Kx2K @60HZ HDR, 3D 1080P, and supports color format RGB (YUV:4:4:4). High performance, up to 18.5Gbps, presenting excellent picture quality and seamless sound.

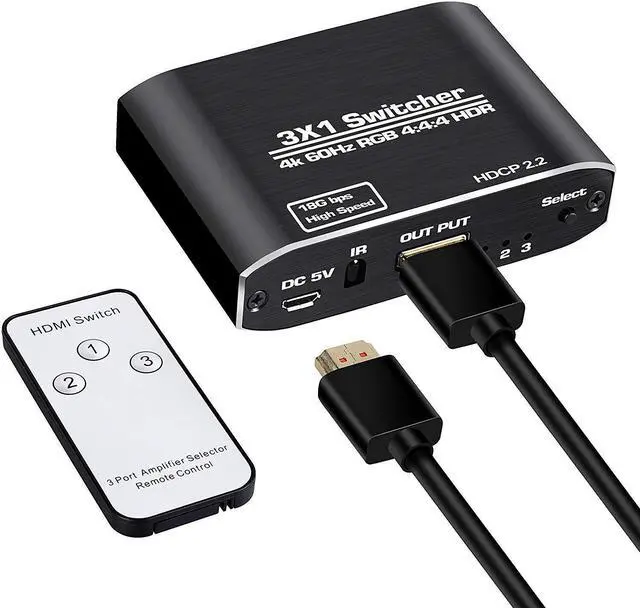

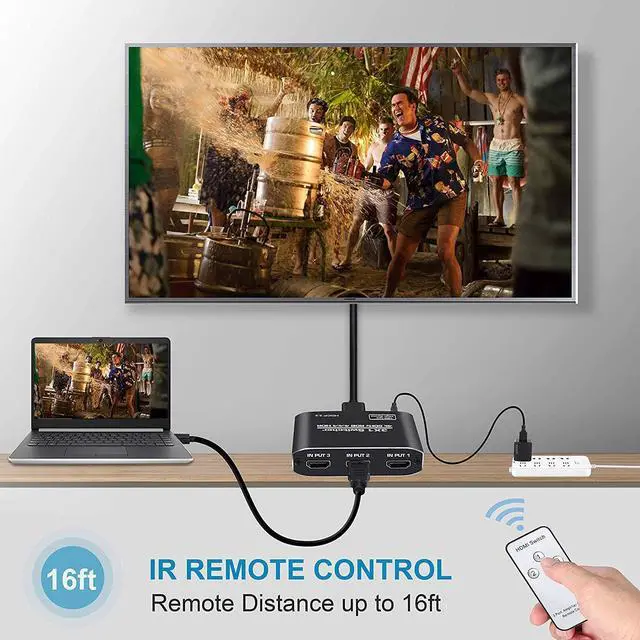

2.0 HDMI remote control and manual switching: The 3x1 HDMI selector is equipped with a built-in infrared remote control and manual switch, allowing you to easily switch through the infrared remote control, and comfortably switch manually through the buttons on the device, up to 16 feet away

Advanced structure and features: The NEWCARE HDMI selector switch is made of sturdy aluminum material, and the corrosion-resistant structure can also resist overheating or damage, making it more durable and practical. This HDMI switch also supports DTS: X / Dolby Atmos / Dolby Digital / DTS-HD / Dolby-trugieHD / LPCM7.1 / Dolby-AC3 / DSD HD(HBR)

Widely compatible: Compatible with most devices, such as Xbox, PS4, Nintendo Switch / Wii, Beamer, DVB receiver, Blu-ray and DVD players, Apple TV, Roku Stick / Fire Stick, computers, etc.



1. Support the max resolution 4K@60Hz

2. Support HDR (High Dynamic Range) to experience true-to-life picture

3. Support both 2CH analog and 5.1/7.1CH digital audio signal

4. Support HDCP 2.2, Backward Compatible

5. No compatibility problem, Compatible with all HDMI devices



Technical Specification:

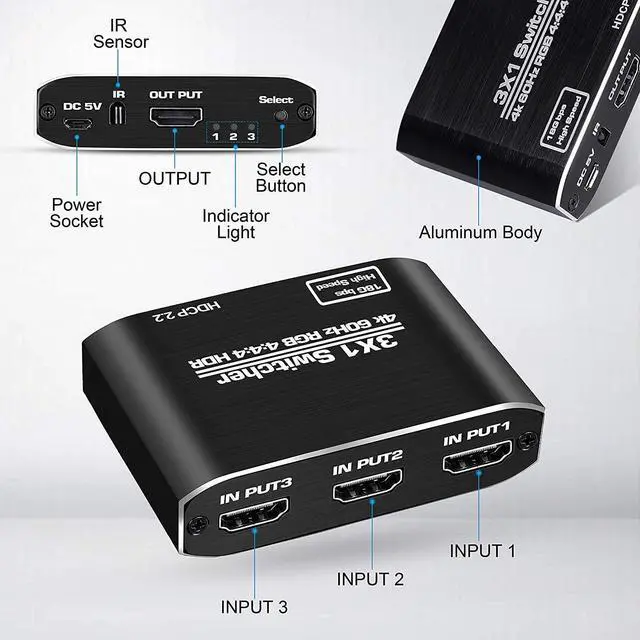

Input: 3 HDMI female ports and 1 Micro USB female power port

Output: 1 HDMI female port

Resolution: 4K@60/30Hz (3840 x 2160), 2K@60/30/24Hz, 3D, 1080P, 1080i, 720P, 720i, 576P, 576i, 480P, 480i

Support 12 bit Deep Color, RGB(YUV:4:4:4)

Compatible with HDMI 2.0, backward compatible with HDMI 1.4, 1.3,1.2 and 1.0

Compatible with HDCP2.2, backward compatible with HDCP 1.4, 1.3,1.2 and 1.0

Support Audio Format: PCM/ LPCM/ Dolby-True HD/ DTS-HD/ DTS/ AC-3/ DSD



Package Included:

1 x HDMI Switch

1 x Micro USB Power Adapter

1 x IR Remote

1 x User Manual



PLEASE NOTE:

1. In order to support the max resolution 4K@60Hz, please use HDMI 2.0 cable which should NOT exceed 6.5FT.

2. Please connect at least two HDMI source devices to the input ports to provide sufficient power for this HDMI switch to work.

3. It is only HDMI switch, Does NOT work in reverse as a HDMI splitter.

4. Welcome to contact our friendly customer service if you need any technical support from us.
