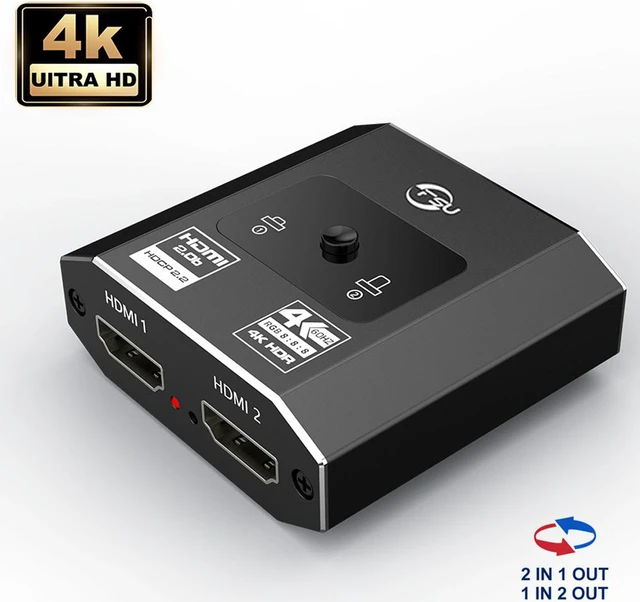

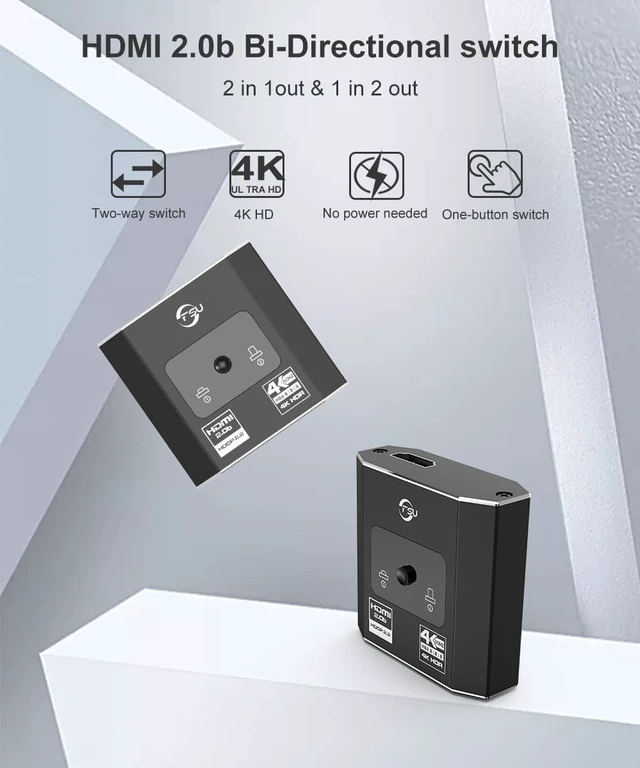

HDMI Switcher 4K HDMI Splitter Bi-Direction 1x2/2x1 Adapter HDMI Switcher 4k2k@60HZ for DVD PS3 PS4 Fire TV HDMI Switch

Specifications:

1.HDMI resolution : 4k2k@60HZ /3D /1080p /1080i /720p /576p /576i/480p/480i

2.Support video color format: 12-bit Deep color per channel; maximum of 32-bits across all channels

3.Support audio format: DTS/Dolby- true HD/LPCM7.1/Diby-AC3/DSD and other audio formats

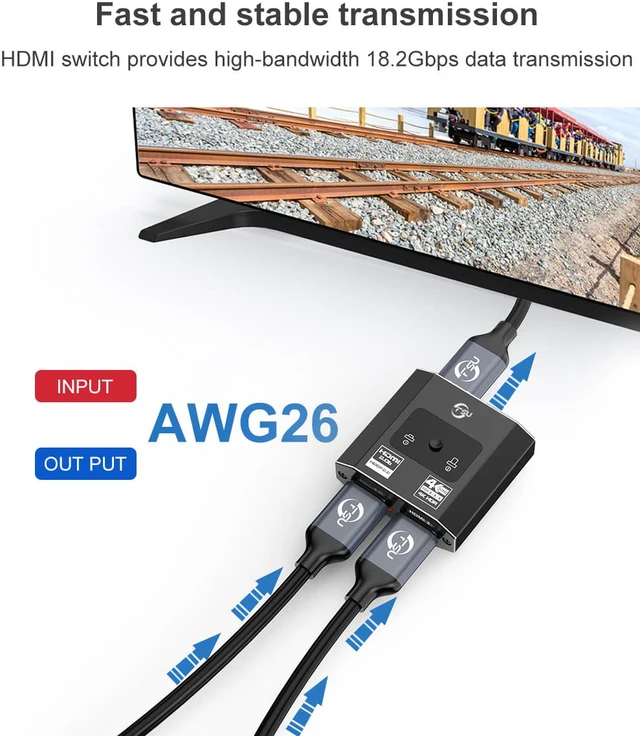

4.Input cable distance: <=3m AWG26 HDMI standard cable(1080P resolution)

5.Output cable distance: <=3m AWG26 HDMI standard cable(1080P resolution)



Package Included:

1.HDMI Bi-Direction switch

2.User manual



Note:

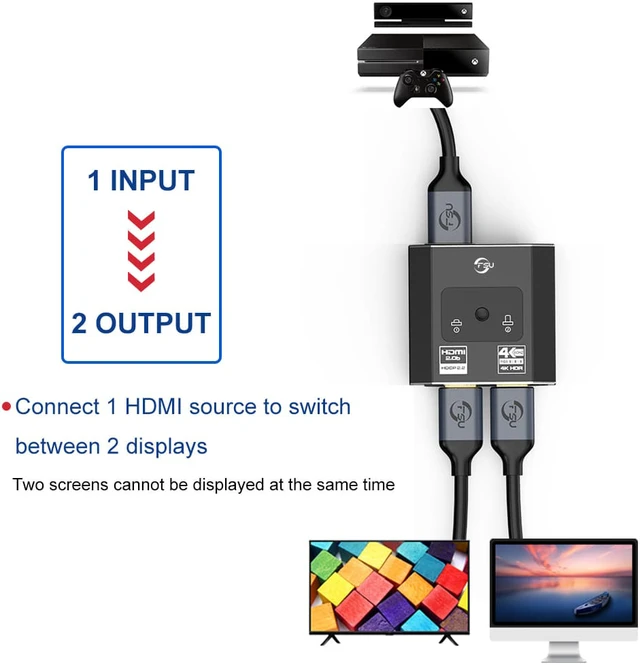

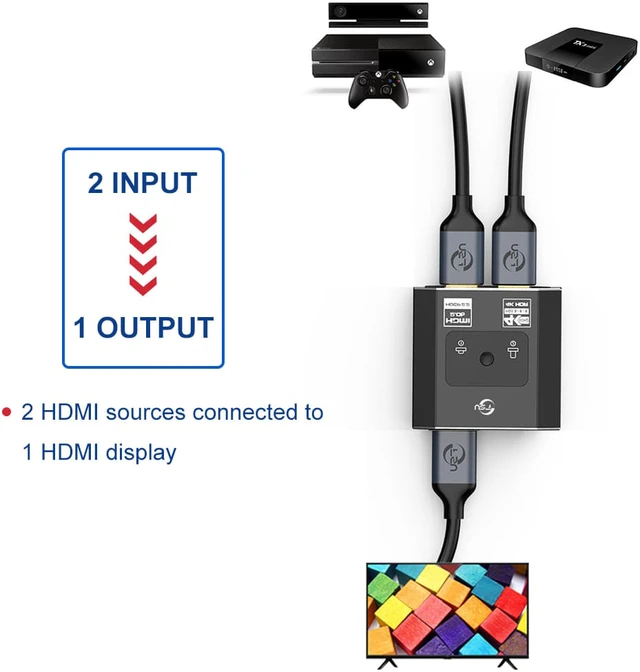

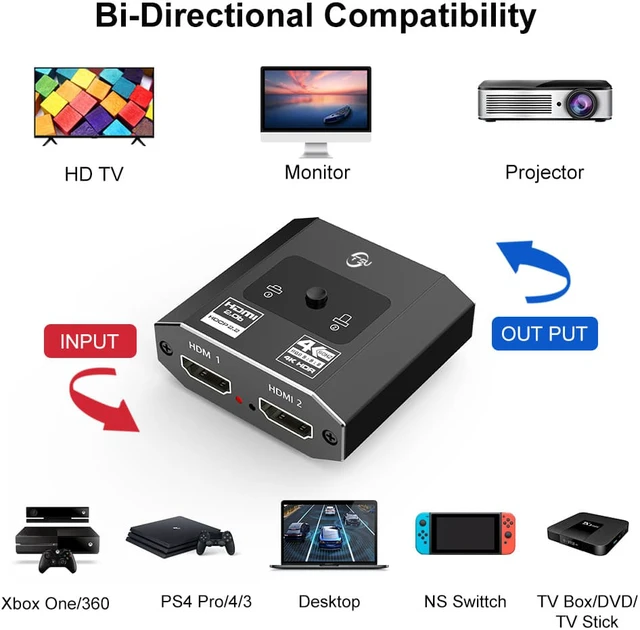

1.According to the connected device to distinguish which mode it is in, for example, when two signal source devices(DVD/PS3/fire TV) are connected, they are in Model 1; when two display devices(TV/monitor) are connected, they are in Model 2.

2.The height of the button determines which HDMI signal/output to switch to.

Eg:When the button is pressed (when the button height is low), HDMI1 is selected;Otherwise, HDMI2 is selected.

3.Our switcher does not support automatic switching, it is completely based on the selection of the button to determine the selected signal source/TV. (For example, if the button is in the"pressed"state, after you connected two input sources and a monitor, the signal of source 1 is selected by default)

4.Our HDMI port does not support connecting audio equipment directly.
