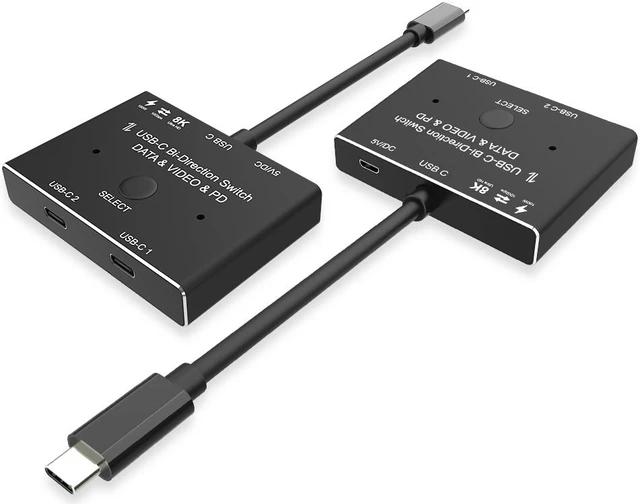

USB-C 8K Bi-Direction Switch USB3.1 USB Type-C PD 3.0 Splitter 1x2 / 2x1 DATA & VIDEO & PD100W Switcher Use for Computer Monitor Mobile Phone Multiple Source and Displays

USB-C 8K Bi-Direction Switch USB3.1 USB Type-C PD 3.0 Splitter 1x2 / 2x1 DATA & VIDEO & PD100W Switcher Used for Computer Monitor Mobile Phone Multiple Source and Displays



NOTE:

1: The product does not include the USB3.1 Gen2 cable, which needs to be purchased separately.

2: The display resolution depends on the connected hardware and system.

3: Type-C switcher only supports USB data protocol.



INTRODUCTION

USB-C 8K Bi-Direction Video Transmissions&Data&Power Switch/Splitter:The USB-C switcher allow you to connect two USB-C sources to one USB-C display or connect one USB-C source to toggle between two displays,(Two displays CANNOT display simultaneously),both of your source and display's USB-C Port should support DP Alternate Mode for Video Transmitting.Ultra HD 8K Video Experience.Please use a standard USB-C Gen-2 cable to connect your signal source or monitor device.

Ultra 8K Video Output,you can output max 8K@30Hz 4K@120Hz 1080P@165Hz via our USB-C Switch/Splitter to your USB-C Displays,The maximum resolution of your output depends on your Source device, monitor and cable used.When you use our switcher to realize the video function, we recommend that you do not use too long cables(The sum of the cables at both ends does not exceed 3 meters).Too long cables at both ends will cause the screen to flicker or the screen cannot be displayed

USB-C Switch with Power and Data Function,It supports Max 100w Power Delivery and Max Transmissions Speed 10Gbps(USB3.1 Gen2),With our switch, you can charge your mobile phone, computer, tablet and other devices, and you can also transfer data from your computer, mobile phone, etc. to your U disk and other devices. Both data and charging functions require your USB-C cable to support the above functions

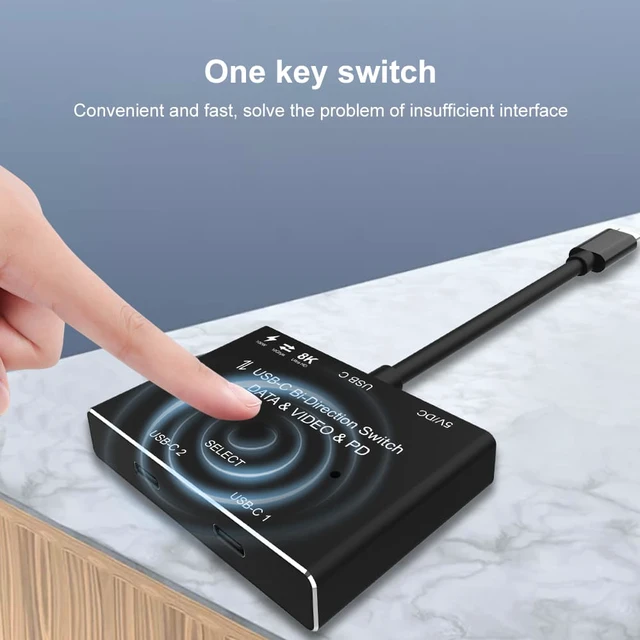

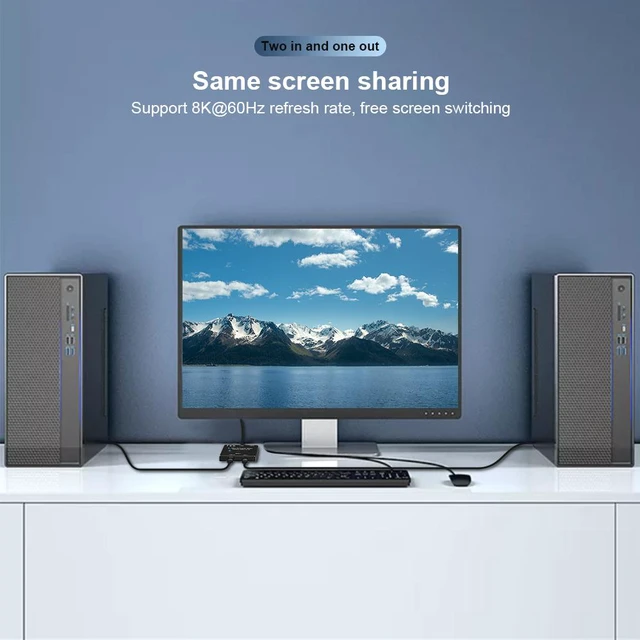

USB-C 8K Switch for Video 2in 1Out,you are allowed to connect two sources to the Port "USB-C 1" and "USB-C 2"in the switch,then connect to the display with the supplied Fixed USB-C Cable.For the USB-C Cable connected between the source devices and Our Switch,these kind of cable should all supporting video transmissiomns.At this connection,you can not connect USB-C hdmi or USB-C displayport cable to your Monitor.Press"Select"Button to switch between two sources.

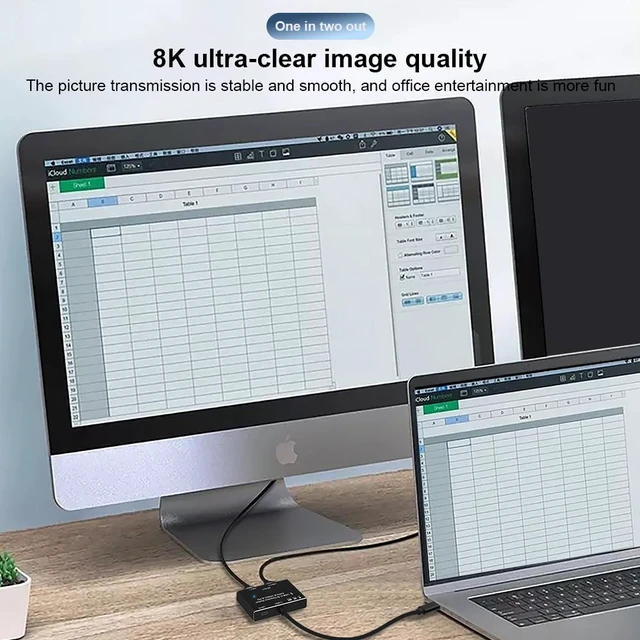

USB-C 8K Splitter for Two Displays 1in 2Out,you are allowed to connect the source device from the USB C end via the supplied fixed USB C Cable,then connect to two USB-C displays to the port "USB-C 1" and port "USB-C 2"in the switch.In this connection,you can connect via USB-C to HDMI or DP Cable to your monitor.Two Displays can not connect at the same time,the USB-C Cable you used should support for video transfer.Press"Select"Button to switch between two displays.



FEATURES

Compliant to link with all USB-C input and output

Complies with USB3.1?USB PD 3.0 and DisplayPort 1.4 specification

Supports: 8K@30Hz

5K@60Hz

4K@120Hz?60Hz

1440P@165Hz?144Hz?120Hz?60Hz

1080P@165Hz?144Hz?120Hz?60Hz

(Depending on the system and the connected hardware)

Supports transmission speed 10Gbps(USB3.1 Gen2)

Supports max 100W power delivery

Supports OS: MAC OS X, Windows

External power is required. Please be sure to power the switch with the supplied USB to DC cable when you use it.

Robust metal housing

Colour: black

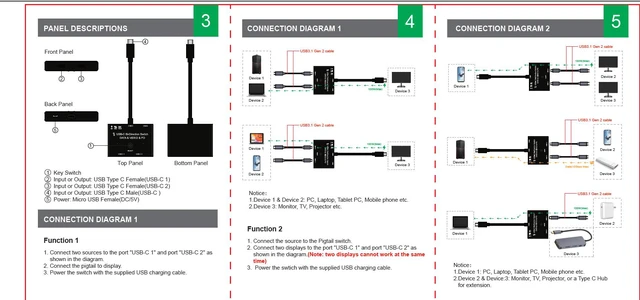

Function 1

when used as a 2x1 switch Input:

2 x USB Type C female

1 x 5 V DC jack 1.35 x 3.5 mm Output:

1 x USB Type C female



Function 2

when used as a 1x2 splitter Input:

1 x USB Type C female

1 x 5V DC jack 1.35 x 3.5 mm Output:

2 x USB Type C female
