Specification

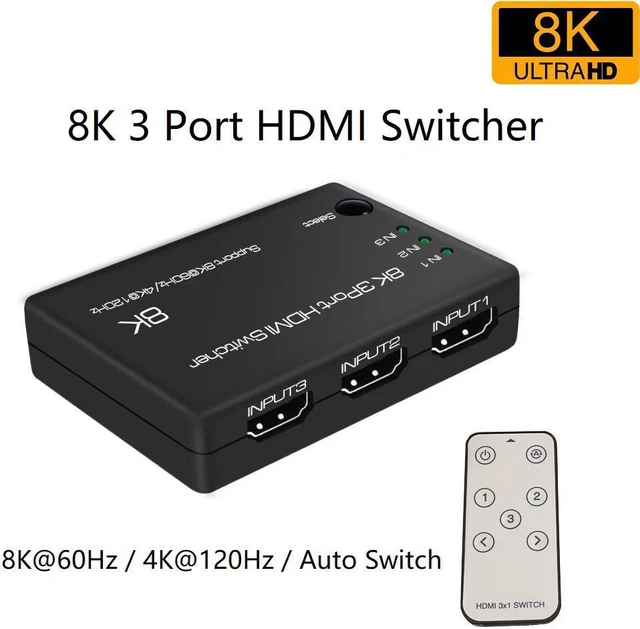

Mode name: 8K 3 Port HDMI Switcher
Input channel: HDMI port x3
Output channel: HDMI port x1
Video format: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz; Up to 4320P@50/60Hz (YCC420), Support HDR/Dolby Vision
Deep color: 8/10/12/16Bit@2160P; 8/10bit@4320P
Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM etc.
HDMI Input/Output cable: 4320P/AWG 26 3m; 2160P/AWG 26 5m; 1080P/AWG 26 10m
HDMI transmission bandwidth: 1GHz Max.
HDMI transmission rate: 40Gbps Max.
Auto switch: Support

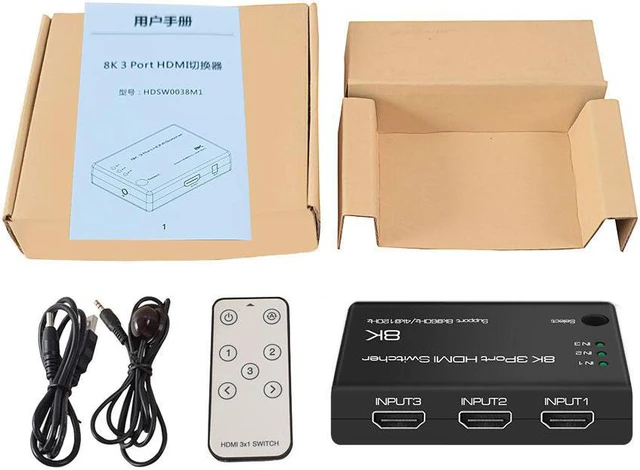

Package included:
HDMI Switch x1,
Manual x1,
Remote x1,
USB Cable x1,
IR Receiver cable x1
Note:
1: Please pay attention that this switcher is not a bi-directional switcher, you can only use from four source to one display, but you can not connect from one source to four displays, only 3 in 1 out, not 1in 3 out.
2: If you need to use our switcher to output 4K@120Hz and 8K@60Hz, please make sure that your HDMI-compatiblecable, HDMI-compatible signal source and HDMI-compatibledisplay all support the above resolution
