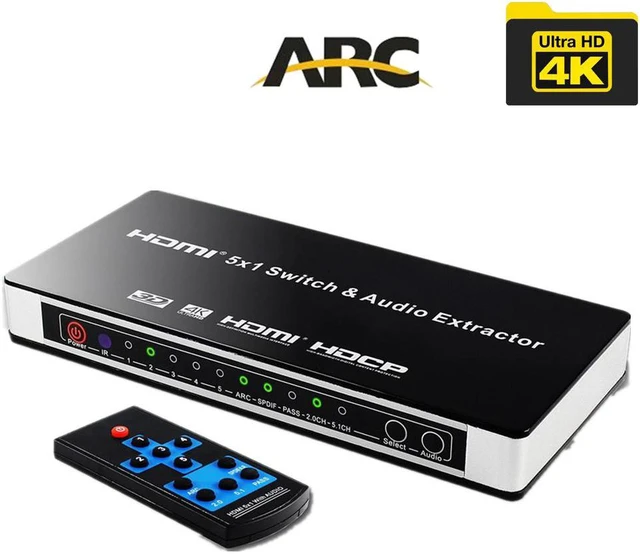

5 Port 4K @30Hz HDMI Switch HDMI Switcher, 5 Port 5x1 HDMI Switcher Splitter Box HDMI 1.4 Audio Extractor Supports 1080P Ultra HD 4K Full HD 3D ARC with Remote
- Supports 5 HDMI sources to switch to share one HD display device, compatible with HDMI 1.4 and DVI transmission interfaces, and supports HDCP 1.2 high-definition digital content protection technology.
- The HDMI audio sampling frequency supports up to 192 kHz, the optical fiber audio (S/PDIF) sampling rate supports up to 192 kHz, and the HDMI input/output supports high-bitwidth (HBR) audio.
- It is not necessary to connect HDMI output terminals to play analog audio or optical fiber digital audio. It supports analog 2-channel output RCA terminals and a set of optical fiber digital audio output terminals. HDMI transmission can reach up to 15 meters (1080p/transmission 8 bits). ) Or 10 meters (1080p/12-bit or 4K2K).
- Built-in PCM 2.0 CH, PASS (TV) or 5.1 audio EDID switching functions.

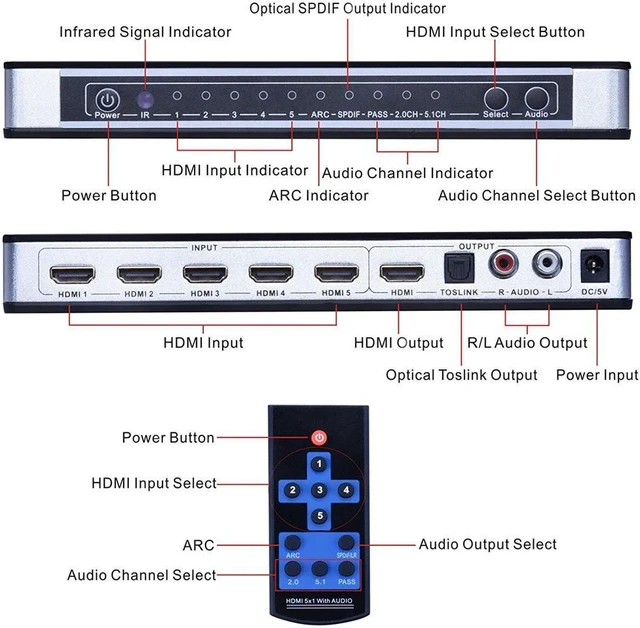

- Support status switch indicator, Support infrared remote control or manual key control, Support 3D signal transmission, support ARC audio return function, support standby mode.
+
+
Overview
Specs
Reviews
Introduction:

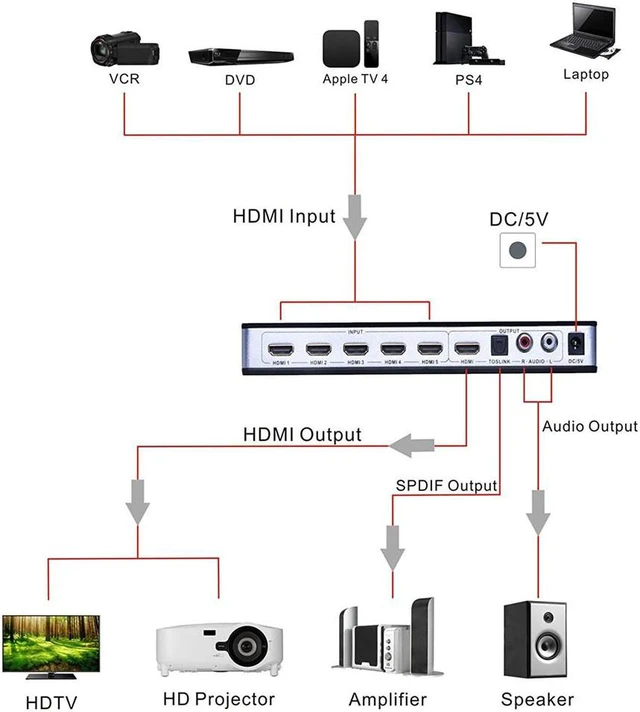

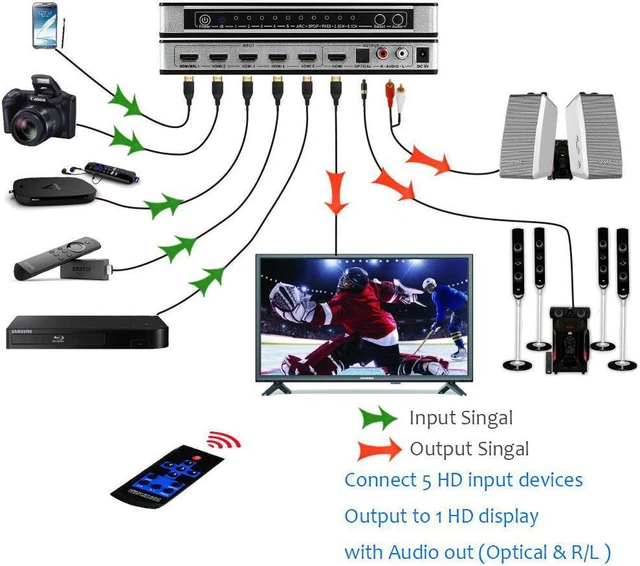

5 Port HDMI Switch & Audio Extractor Toslink/RCA stereo outputs with Ultra HD 4K ARC EDID setting allows you to connect five HDMI input to one HDMI output.
It also allows you to connect to a 7.1 channel digital surround on HDMI output or 5.1 channel digital surround sound on the Toslink digtital output or 2.0 channel PCM audio on the RCA stereo output.
It has a source select button on the switch and a remote control to provide flexibility for you to manually switch between five sources.
Product Description:

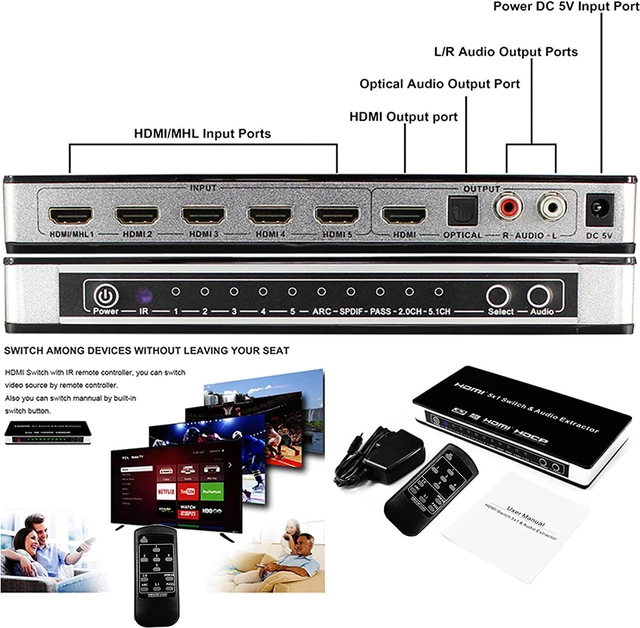

Input: HDMI x 5;
Output: HDMI x 1,
Optical x 1,
L/R 2RCA x 1
HDMI Version: HDMI 1.4 /HDC 1.4.
Resolution: Supports for Ultra HD 4Kx2K@30Hz.
Features:
Supports HDCP pass-through.
Supports HDMI pass-through.

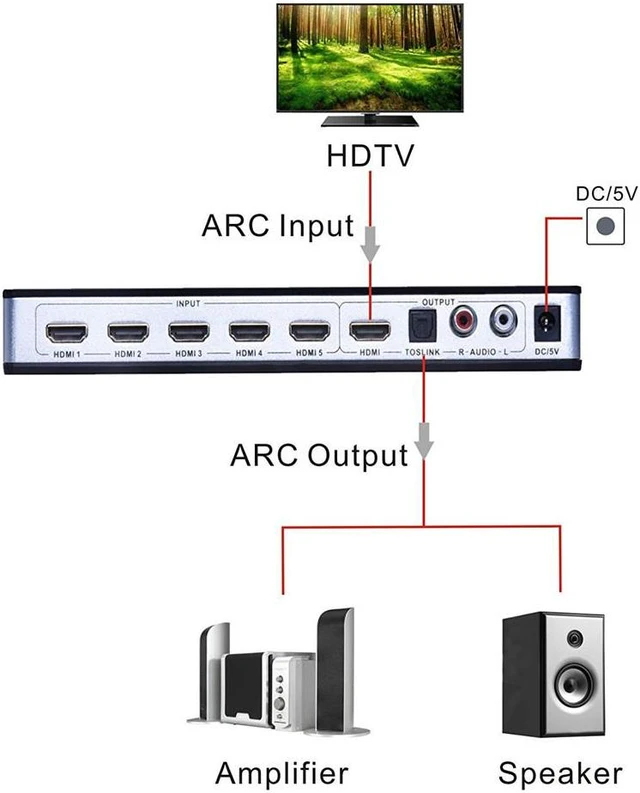

Supports for ARC (Audio Return Channel).
Supports uncompressed audio such as LPCM.
Supports up to 5.1CH digital surround on Toslink output. Supports up to 2.0 channel analog stereo on Stereo output.
Supports 12-bit Deep Color per channel, maximum 36-bit all channels.
Supports 4K Ultra HD (4Kx2K@30Hz), 3D (1080p@120Hz), Full HD (1080p@120Hz)
Supports DTS-HD, Dolby TrueHD, DTS, Dolby Digital AC3, DSD, LPCM 7.1, DTS-HD, and Dolby TrueHD.
Supports 3.0G bps TMDS/300MHz pixel clock rate per channel, maximum

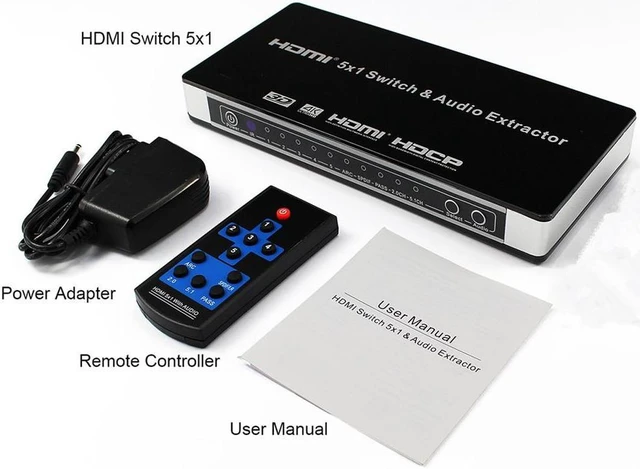

Package included:
1*HDMI Switch 5x1
1*5V AC Power Adapter
1*Remote Control
1*User Mannual
Warm tips:
1. We recommend to use standard 19+1 HDMI cable for improve performance and stability.
2. For PS4 and FIRESTICK we strongly suggest to connect the HDMI NO. 5 input port while apply on TV or projector
5 Port HDMI Switch & Audio Extractor Toslink/RCA stereo outputs with Ultra HD 4K ARC EDID setting allows you to connect five HDMI input to one HDMI output.
It also allows you to connect to a 7.1 channel digital surround on HDMI output or 5.1 channel digital surround sound on the Toslink digtital output or 2.0 channel PCM audio on the RCA stereo output.
It has a source select button on the switch and a remote control to provide flexibility for you to manually switch between five sources.
Product Description:
Input: HDMI x 5;
Output: HDMI x 1,
Optical x 1,
L/R 2RCA x 1
HDMI Version: HDMI 1.4 /HDC 1.4.
Resolution: Supports for Ultra HD 4Kx2K@30Hz.
Features:
Supports HDCP pass-through.
Supports HDMI pass-through.
Supports for ARC (Audio Return Channel).
Supports uncompressed audio such as LPCM.
Supports up to 5.1CH digital surround on Toslink output. Supports up to 2.0 channel analog stereo on Stereo output.
Supports 12-bit Deep Color per channel, maximum 36-bit all channels.
Supports 4K Ultra HD (4Kx2K@30Hz), 3D (1080p@120Hz), Full HD (1080p@120Hz)
Supports DTS-HD, Dolby TrueHD, DTS, Dolby Digital AC3, DSD, LPCM 7.1, DTS-HD, and Dolby TrueHD.
Supports 3.0G bps TMDS/300MHz pixel clock rate per channel, maximum
Package included:
1*HDMI Switch 5x1
1*5V AC Power Adapter
1*Remote Control
1*User Mannual
Warm tips:
1. We recommend to use standard 19+1 HDMI cable for improve performance and stability.
2. For PS4 and FIRESTICK we strongly suggest to connect the HDMI NO. 5 input port while apply on TV or projector
