10 / 100mbps RJ45 8 Port Fast Ethernet Switch Lan Hub US EU Plug 5v Adapter Power Supply Network Switch

Definition

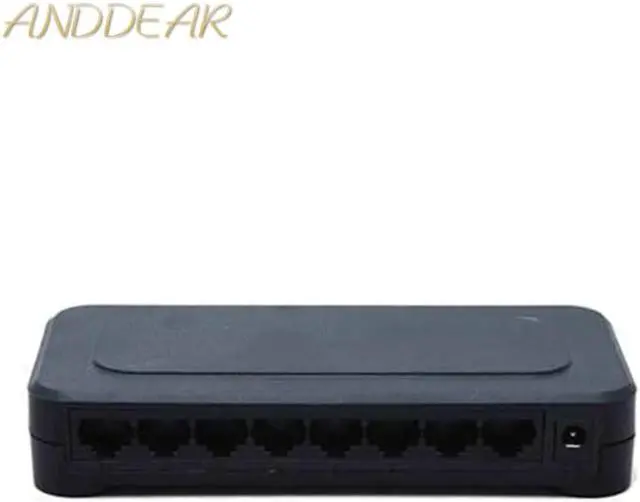

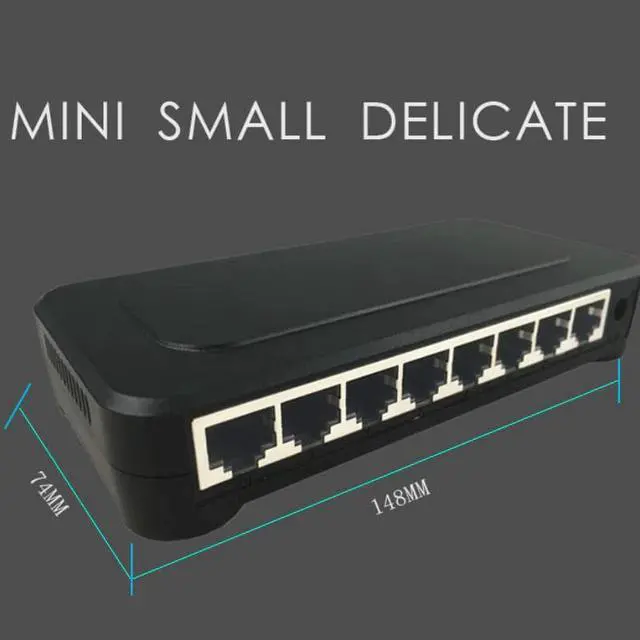

This is a 8 port 10 / 100mbps rj45 dekstop fast ethernet network switch

Features

1 fast ethernet network switch 8 port

2 Desktop

3 Plug n Play

4 Plastic case

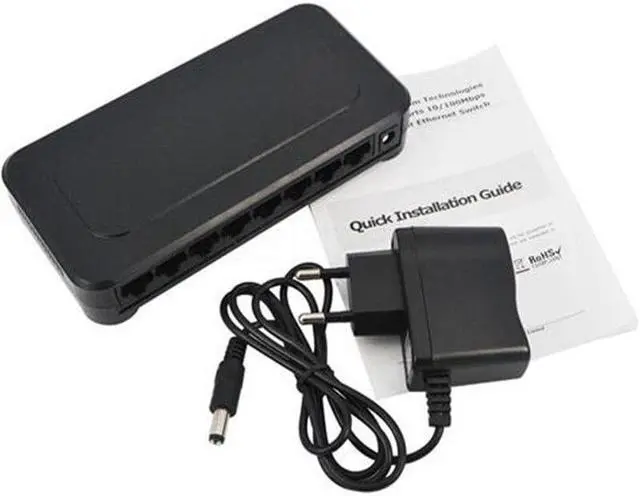

5 5v 1a power adapter

Applications

The fast ethernet network switch 8 port is widely used in companies, hotels, school, office, small Local area network and other places

Features

Complies with IEEE 802.3, IEEE 802.3u standards

8 port 10 / 100Mbps Auto-Negotiation RJ-45 ports, supporting Auto-MDI / MDIX

Supports 2K-entry MAC address table with 4-way hash algorithm

Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port

Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput

Support MAC address auto-learning and auto-aging

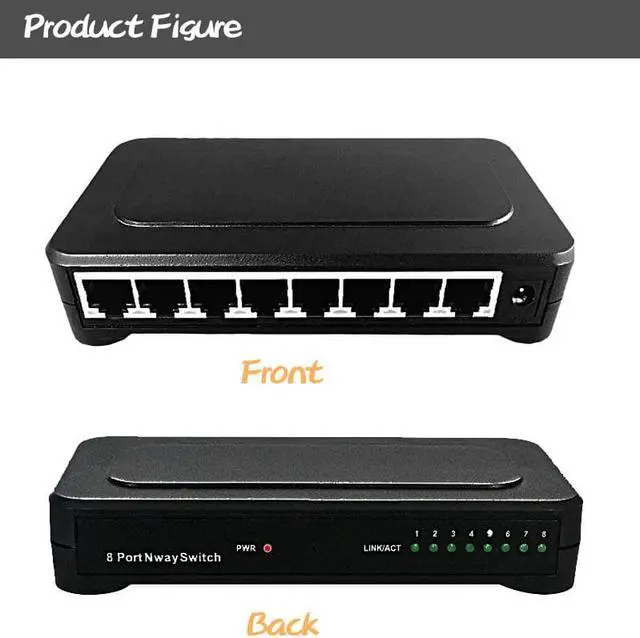

LED indicators for monitoring power, link and activity

Desktop metal case

External supply power DC5v 1a

8 port 10 / 100mbps rj45

Specifications

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3x flow control

protocol

CSMA/CD

Transmission Rate

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port

Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port

Topology

Star

Network Medium

10Base-T:Cat 3 or above Cat.3 UTP(100m)

100Base-TX:Cat 5 UTP(100m)

Number of Ports

8 port 10/100Mbps RJ45 ports

UPLINK

Any port (support Auto-MDI/MDIX function)

Transmits Method

Store-and-Forward

Temperature

1.6G
