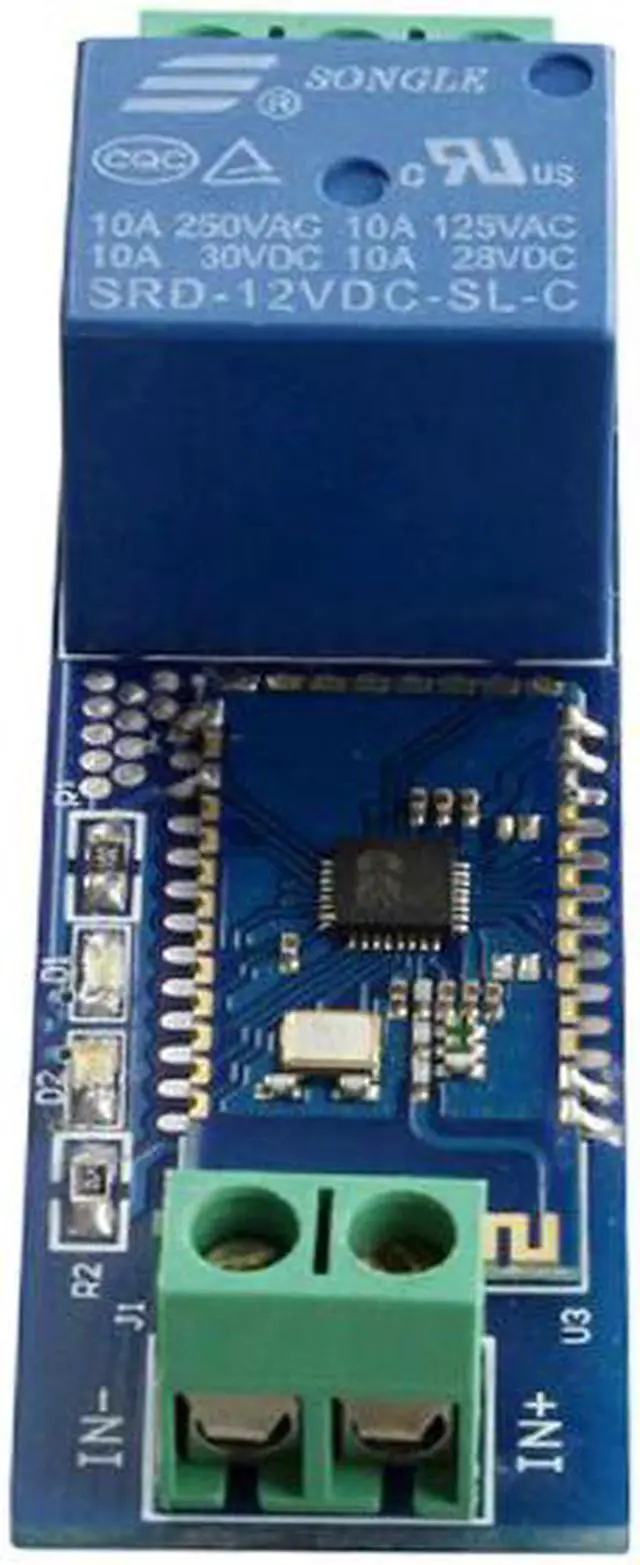

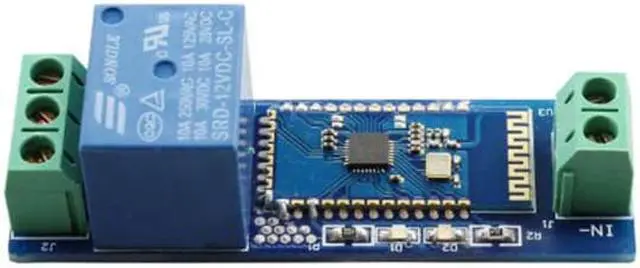

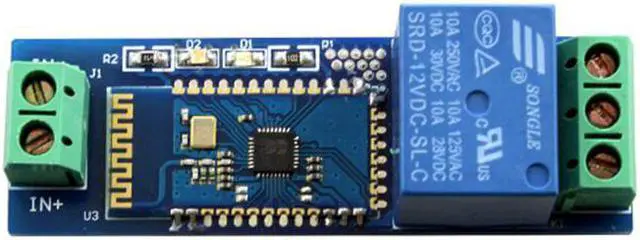

Internet Bluetooth Module Smart Remote Control Mobile Phone Switch DC12V Wireless Module Component

Internet Bluetooth Module Smart Remote Control Mobile Phone Switch DC12V Wireless Module Component

100% brand new and high quality

Features:

Bluetooth module,mobile phone switch,web/bluetooth module.

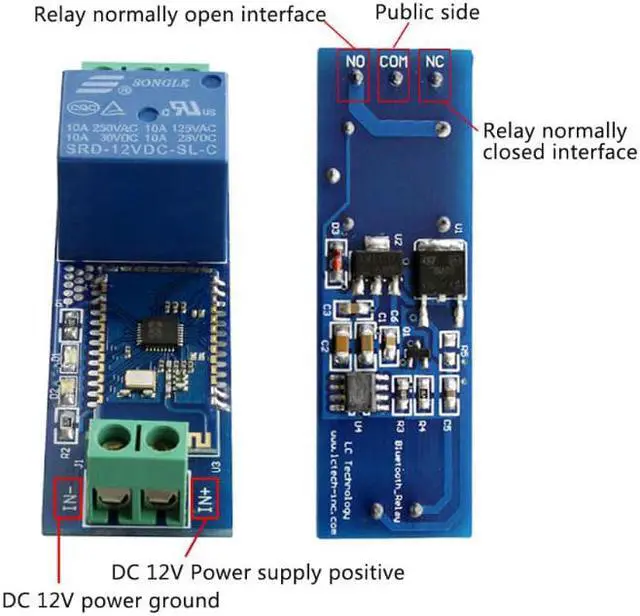

normally open interface: hanging before is shooting,short connect with COM after shooting.

normally close interface: hanging after shooting,short connect with COM before shooting.

module only,other accessories demo in the picture are not included!

Instructions:

Install the "bluetooth intelligent control" app on the android phone terminal after the correct connection,

search for the bluetooth device and connect it. The pairing password is 1234.

Long press the gray box in the interface to add the serial port instruction,

and input the name and content of the instruction (open the when the instruction content is A00101A2 / close the when the instruction content is A00100A1).

And choose to send in the form of hexadecimal, then the corresponding shock box can control the switch of the ,

you can also download other bluetooth app in the app store by sending instructions to control.

Parameters:

Onboard Module: onboard SPP-C bluetooth serial port integrated with wireless control function.

Onboard : onboard 12V,10A/250V AC,10A/30V DC ,longlife ,can absorb 0.1 million times continuously.

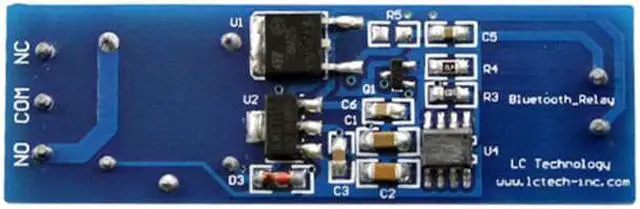

Protective Drain Diode: equip with diode drain protection,and short response time.

Indicator: Bluetooth status indicator(slow flashing without connection,steady flashing after connection) and indicator light(light up after shooting).

Control Distance: 10m(wide and open environment)
