Definition

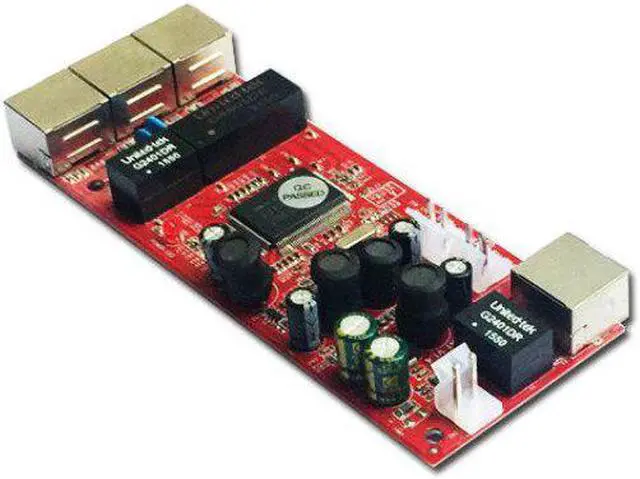

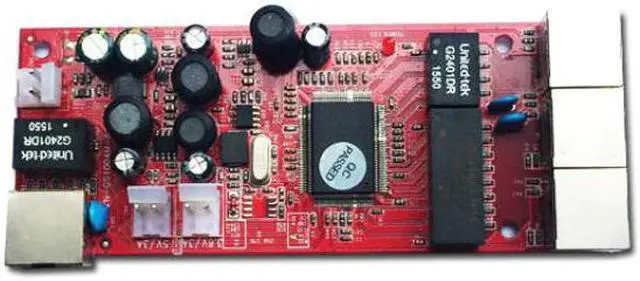

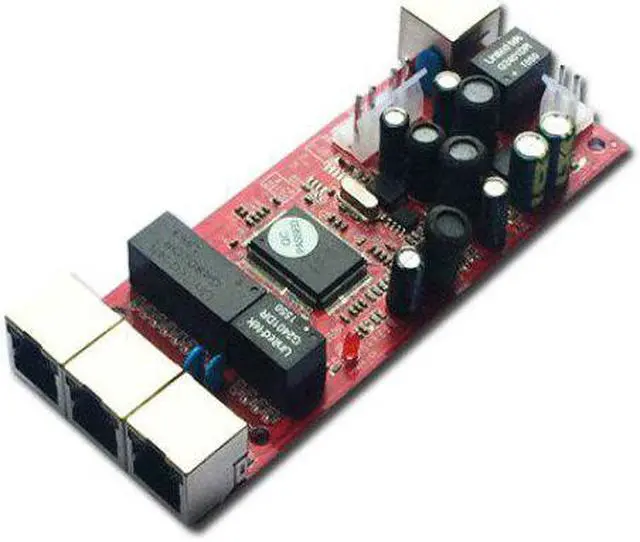

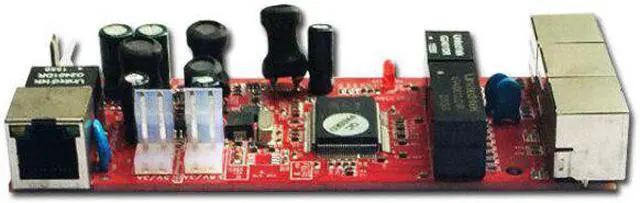

This is a 8 port 10 / 100mbps rj45 dekstop fast ethernet network switch module
Features
1 fast ethernet network switch module 8 port
2 Desktop
3 Plug n Play
4 Plastic case
5 5v 1a power adapter
Applications
The fast ethernet network switch 8 port is widely used in companies, hotels, school, office, small Local area network and other places
Features
Complies with IEEE 802.3, IEEE 802.3u standards
8 port 10 / 100Mbps Auto-Negotiation RJ-45 ports, supporting Auto-MDI / MDIX
Supports 2K-entry MAC address table with 4-way hash algorithm
Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port
Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput
Support MAC address auto-learning and auto-aging
LED indicators for monitoring power, link and activity
Desktop metal case
External supply power DC5v 1a
8 port 10 / 100mbps rj45
Specifications
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3x flow control
protocol
CSMA/CD
Transmission Rate
Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port
Topology
Star
Network Medium
10Base-T:Cat 3 or above Cat.3 UTP(100m)
100Base-TX:Cat 5 UTP(100m)
Number of Ports
8 port 10/100Mbps RJ45 ports
UPLINK
Any port (support Auto-MDI/MDIX function)
Transmits Method
Store-and-Forward
Humidity
