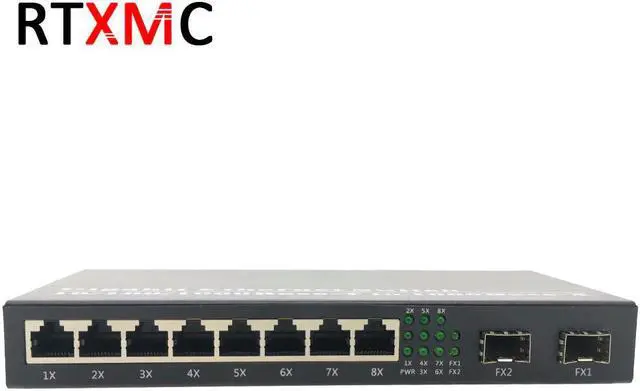

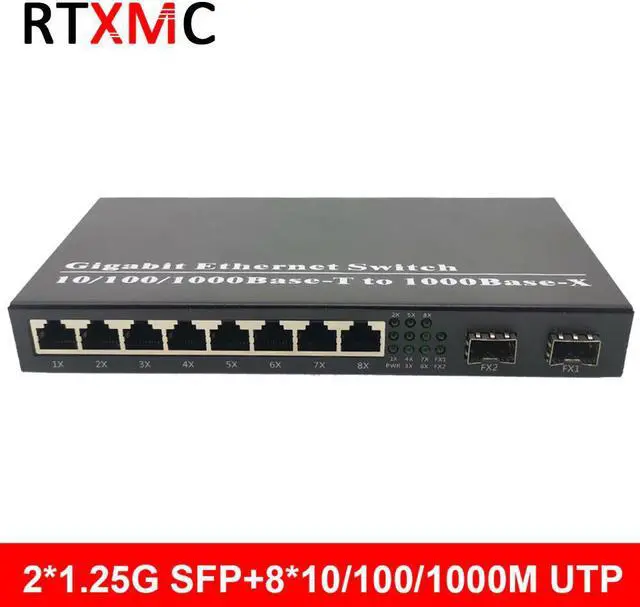

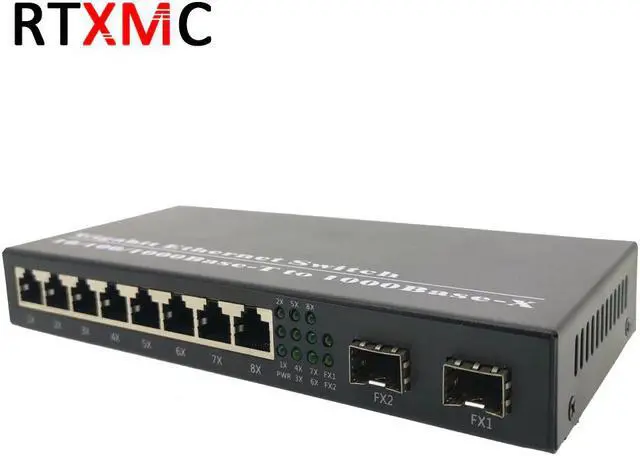

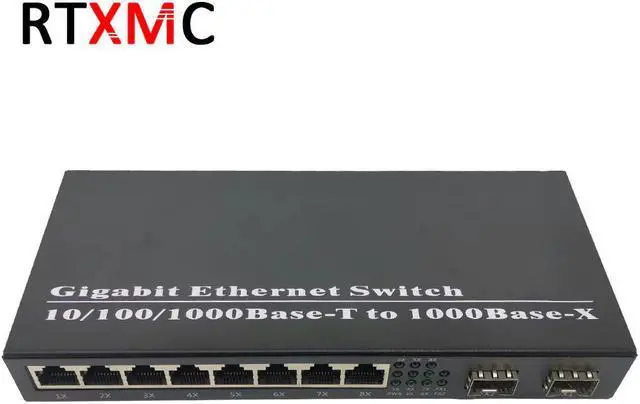

2SFP 8RJ45 2G8E Gigabit Media Converter 10/100/1000M Ethernet Converter Transceiver fiber optical switch

10/100/1000 Mbps SFP Slot 2G8E Fiber Switch

Please Note:

1.This Price is not include SFP Module,If you need SFP modules also,welcome to contact us.

2.Default with EU power adapter.UK,US,BR,AU standards can be provided as request.

3.There are price for Fiber Optical Media Converter Board with adapter , and cheap price for only adapter ! please choose waht you need !

Overview

This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between

10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customersrequirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.

Key Features

Modular design, plug and play

Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards

Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex

Available in single fiber WDM versions - 1310/1550 nm wavelengths used

Supports automatic cross of twisted pair ports

Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status
