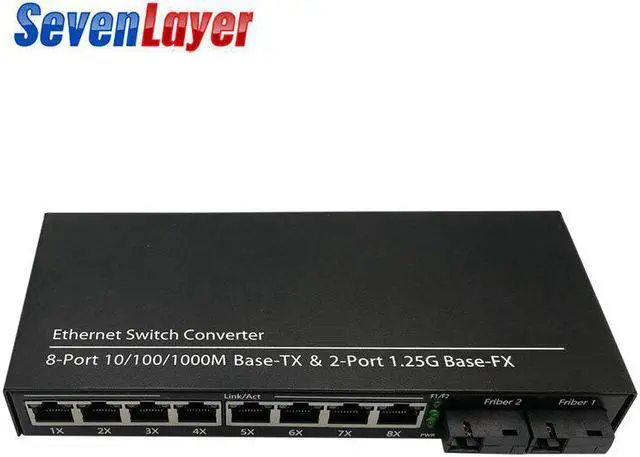

Optical Media Converter Gigabit Ethernet switch 10/100/1000M 8 RJ45 UTP and 2 SC Port

please note:

1. Default with 1pcs 1310nm A side module and 1pcs 1550nmB side, 2pcs 1550nm B Side or 2pcs 1310nm A side can be provided as request.

Gigabit Ethernet Switch 2G8FE Series Switch

The Gigabit 2G8FE is an Ethernet Switch which is specially designed for network monitoring. It

has eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps ports. It adopts Marvell chips to ensure

low power consumption and high stability. It extends the transmission distance of a network from

100m to 120km via copper cables. It can extend the transmission distance; there are also many other

advantages such as isolation protection, good data security, working stability and easy maintenance.

Main Features:

1.Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX

2.2*1.25Gbps full-duplex ports and 8*10/100/1000M Ethernet ports with auto-negotiation function

3.Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

4.Each port has the complete LED Indicator light

5.Support single mode single ,single mode dual ,multi-mode dual and SFP slot

6.Support IEEE802.1d Spanning Tree

7.Support high performance QoS function on each port

8.Support 12V voltage input

9.Support IEEE 802.3x flow control and back pressure control

10.Require no configuration and will instantly operate as soon as you power it up

11.Low power consumption chip with heat sink built in to ensure longtime efficient operation

Specifications:

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control

IEEE802.1p QoS
