Displayport1.4 1x3 Splitter 8K@30Hz 4K@144Hz MST SST Hub Multi Monitor Splitter Adapter DP Splitter With Extended Display and Mirror Mode

Displayport1.4 1x3 Splitter 8K@30Hz 4K@144Hz MST SST Hub Multi Monitor Splitter Adapter DP Splitter With Extended Display and Mirror Mode



Note:

1.Need external power supply: when using, please make sure to use USB cable to power the switch

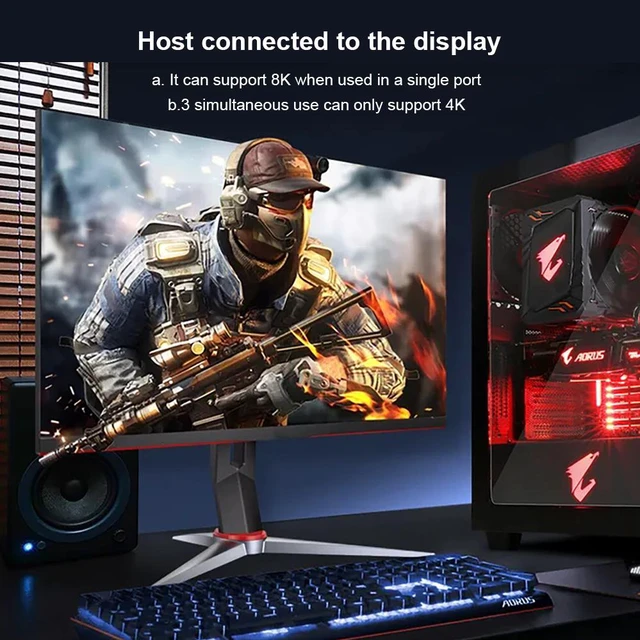

2.In MST expansion mode, the single port output can reach 8K, and the three ports output can reach 4K at the same time

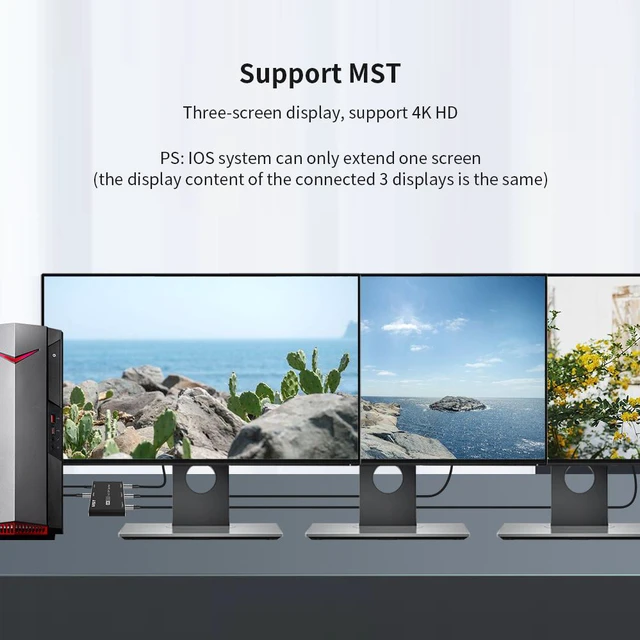

3.MST mode of Apple system can only extend one screen (limited by iOS System)



Product manual:

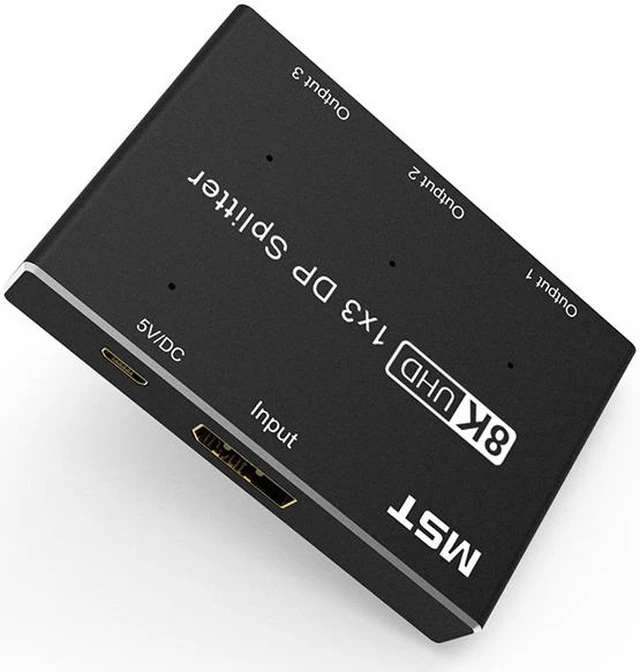

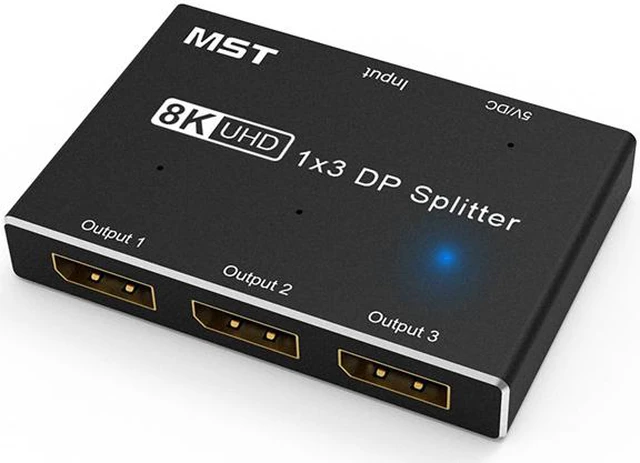

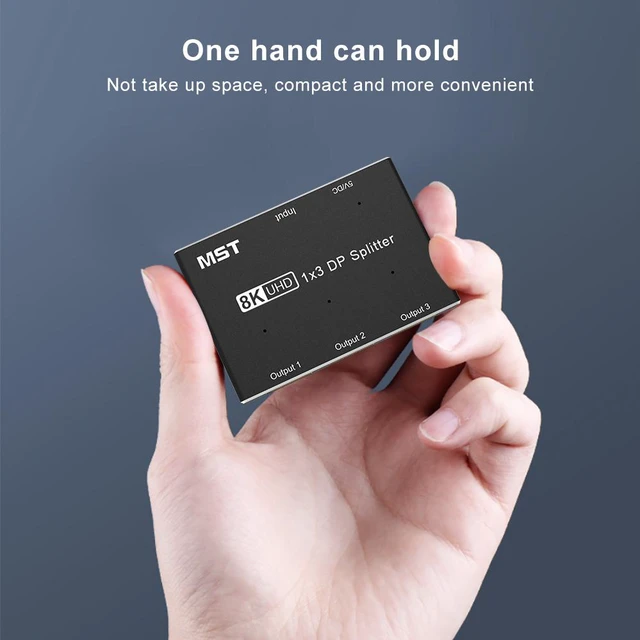

This super slim 1x3 DP splitter is compact and efficient.

It allows you to distribute one HD source to three displays simultaneously without any signal loss.

The system is compatible with DP1.4?DP1.3?DP1.2?DP1.0, Support 3D and 4K?8K ultra HD, Support SST and MST.

This splitter is ideal for home theater, school, hotels and any other installations where needs to take an Ultra HD source to up to 3 Ultra HD displays.



1)Pls make sure the DP port of your PC or laptop is of DP1.0 and above.Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications.

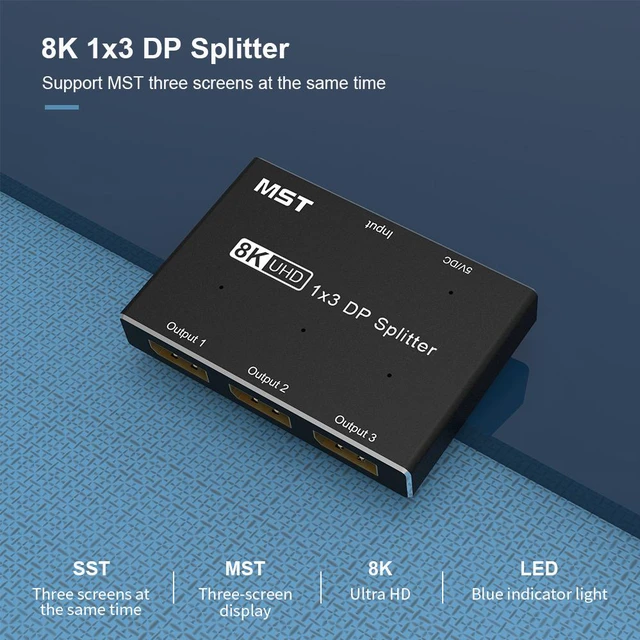

2)pls make sure that the DP soure has already implemented full support for MST/SST. splitter Support SST (Mirror) and MST (Extended) mode ,Support HDR 4:4:4, 4:2:2, 4:2:0.

3)DP direct connections are recommended for reliability and compatibility.

4)Vesa certified Displayport cable is needed(most screen flickering or vidoe on/off are caused by non-qualified Displayport cable).

5)Support operating system: Apple (iOS) system, Windows system, Android system.

6)this Displayport MST splitter does not work with any dock.

7)Number of Displays:MST function can not increase the number of displays a video card supports.Regardless of the number of video outputs your video card comes, each video card has a limited number of display it can support.(Most AMD and Nvidia video cards supports no more than 4 dispalys while intel supports no more than 3 displays.)



Specifications:

8K:Single port 7680x4320 @30Hz display

4K:Single port 3840x2160 @144Hz



Support resolution:

8K@30Hz

4K@144Hz, 120Hz, 60Hz

1440P@165Hz, 144Hz, 120Hz, 60Hz

1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz

(Depends on your graphics card, monitor, operating system and DP cable support)



Package Contents:

1.1 x DP splitter host

2.1 x U SB A t o U SB Micr o B power supply line

3.1 x User Manual
