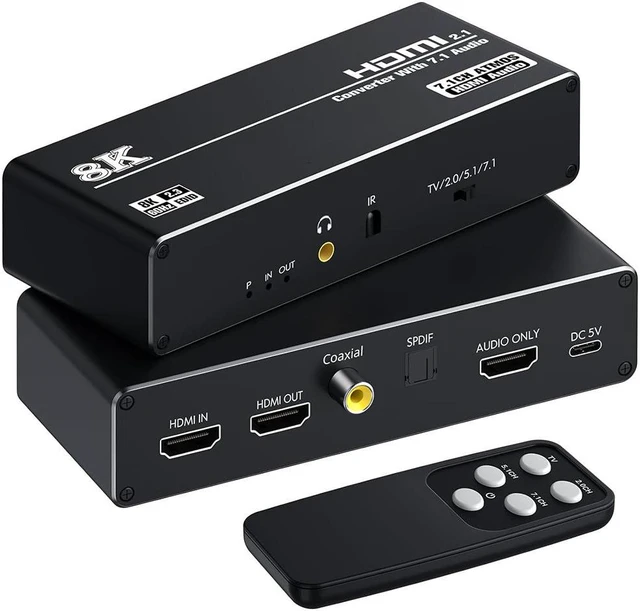

8K@60Hz HDMI Audio Extractor Splitter, HDMI to HDMI Audio Converter + 7.1CH HDMI Audio + Optical Toslink SPDIF + Coaxial + 3.5mm Audio Jack, Support HD-MI 2.1, HDCP 2.3, Do-lby, DTS, HDR10



Features:

• Supports 8K@60Hz, 4K@120Hz (4K@165Hz, 4K@144Hz), 2K/1080P@240Hz, and is backward compatible.
• Supports Dynamic HDR, HDR10+, VRR, and Chroma 4:2:0 / 4:2:2 / 4:4:4. Bandwidth: 48Gbps
• Supports Dolby Vision and is HDCP 2.3 compliant.
• Supports variable refresh rate (VRR) for AMD FreeSync and G-Sync.
• HDMI Audio Formats: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

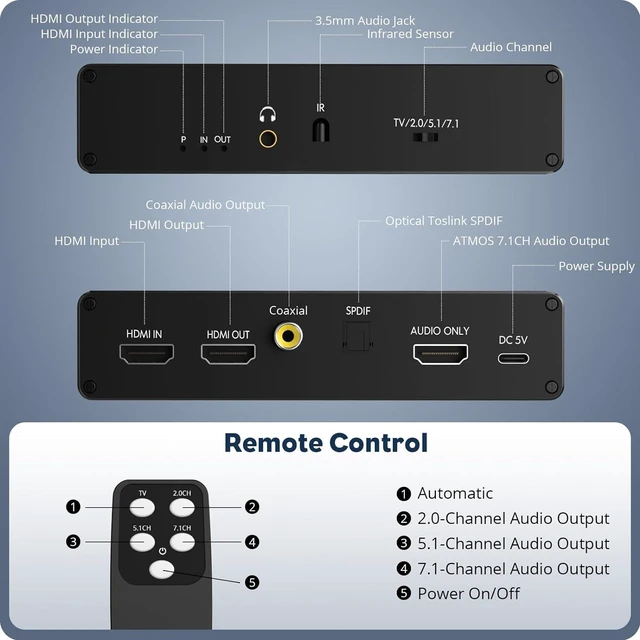

• 4-speed toggle switch to switch between TV, 2.0, 5.1, and 7.1 audio formats.

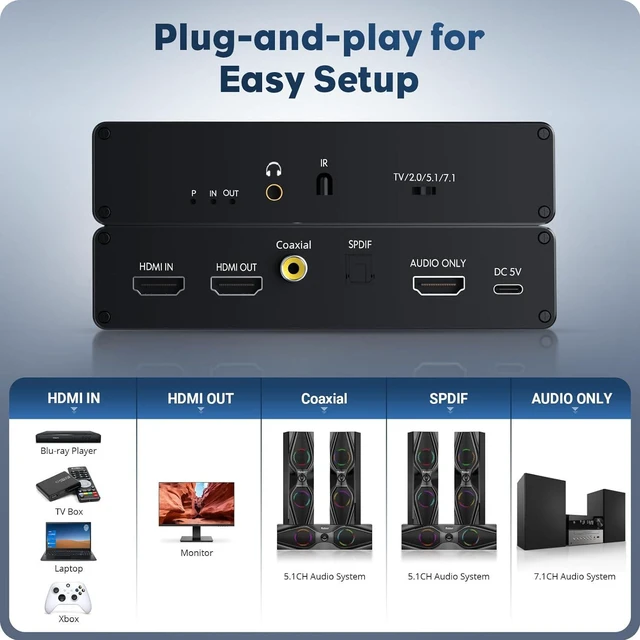

• HDMI video/audio output: monitors, TVs, projectors.
• HDMI Audio/SPDIF/Coaxial/3.5mm Audio Output: receivers, amplifiers, speakers, headphones, and other audio devices.



• TV: In TV Mode, the HDMI output signal is in TV Copy Mode. So, the output resolution will be based on the EDID displayed on the TV. HDMI Audio Extract output will also extract audio. 2.0ch audio signal will be output on the 3.5mm port, and 5.1ch audio output will be available on the SPDIF port.





• 2.0CH: In 2.0ch Mode, the HDMI Audio Extract output signal will be output on the 3.5mm port. The audio format of HDMI Audio Output and SPDIF port output will be both 2.0ch PCM format.





• 5.1CH: In 5.1ch Mode, the HDMI Audio Extract output signal will be output on the HDMI Audio Output and SPDIF port. (NOTE: The 3.5mm Audio port does not support 5.1ch. In the 5.1ch Audio format, please disconnect the 3.5mm port.)





• 7.1CH: In 7.1ch Mode, the audio format is LPCM. The HDMI Audio Extract output signal will be output on the HDMI Audio Output. (Note: If the TV or monitor does not support 7.1ch, there will be no audio signal.)
