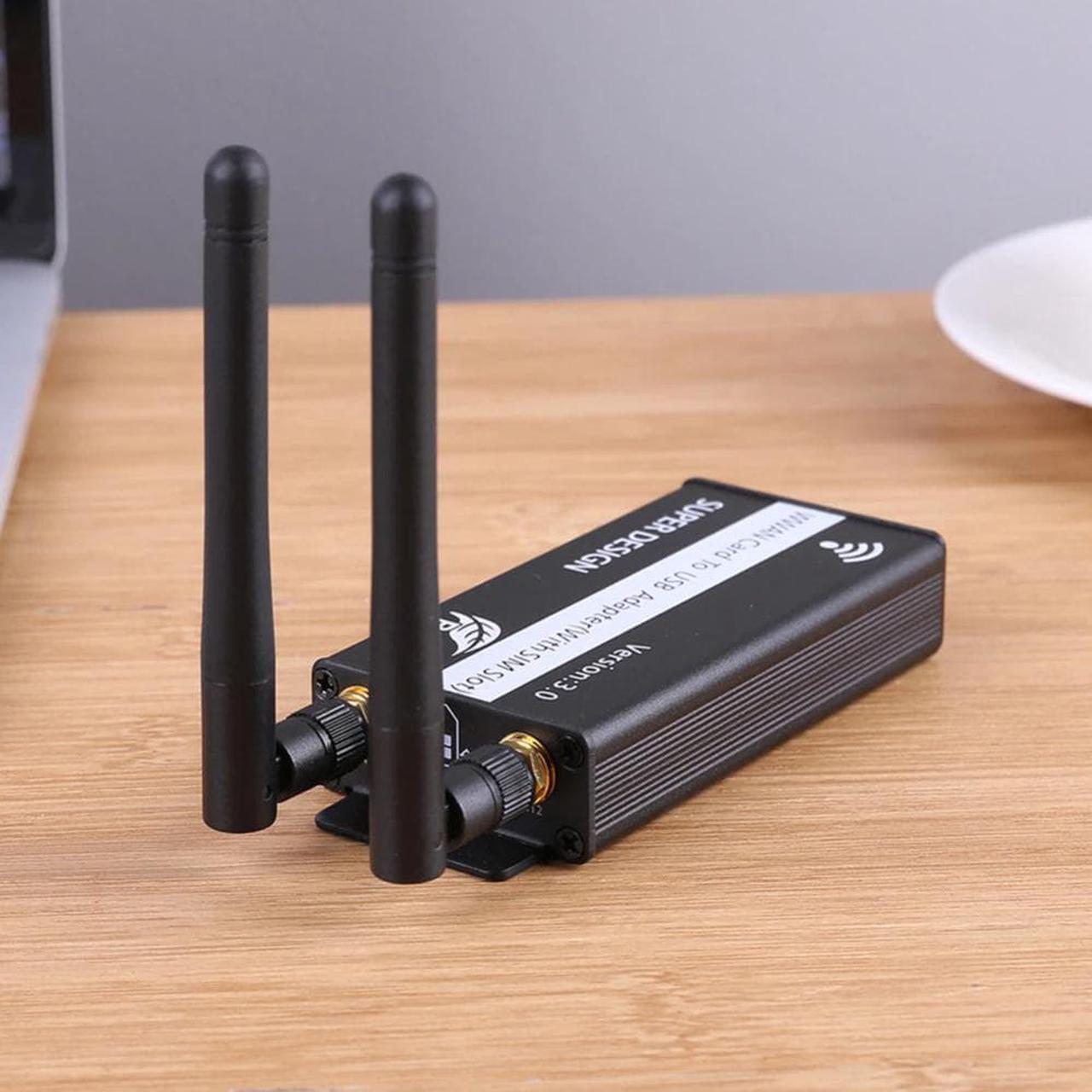

PCI-E Mini PCI-E PCI Express Wireless Card To USB Adapter Card With SIM Card Slot Wireless Adapter For WWAN/LTE Module

Description:

This adapter does not include  mini PCI-E  module and SIM Card.

The  adapter is designed for desktop/Embedded system that converts 3G/4G wireless Mini-Card to USB port.

You can only insert your USB Bus type minicard such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port, doesn't support PCI-E bus type minicard such as Wifi module.

As standard SIM card is provided, you can connect to network carrier with SIM card.

Features:

Doesn't support PCI-E bus type minicard such as Wifi module,  only supports USB bus interface of Mini-Cards such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, and Mini-Card to desktop PC.

Easy installation & no driver required, but make sure you have installed the software drivers for your WWAN card.

Support SIM 6pin/8pin card connector.

No additional power required.

Supports Plug & Play and Hot-Swapping.

Supports any OS, like WindowsXP/Win7/Win8/Win8.1/Win10, WinCE, Linux & iMAC etc.

Case dimension: approx. 89x45*18mm/3.5*1.77*0.7''

Note:

Please allow 1-3cm differs due to manual measurement.

Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

1 x PCI-E to USB Adapter

1 x USB Cable

2 x Antennas

1 x Screw Driver

2 x M2 Screws
