M.2 WiFi A.E Key A+E To PCI-e x4 Extender Adapter Card Cable Gen3.0 AE Key A E For PCIE 3.0 x1 x4 x16 M2 R52SF/R52SL/R52SR

Brand new arrival, excellent product performance, word of mouth super good products, official authentic products,100% electrified test delivery.

Product model: R52SF, R52SL, R52SR (R52 series)

Product name: m. 2-a \Ekey extension cord for transfer board

Length of wire: 3-100cm (support line length customization, different line length has different price, line length customization, please contact customer service to change the price and then pay)

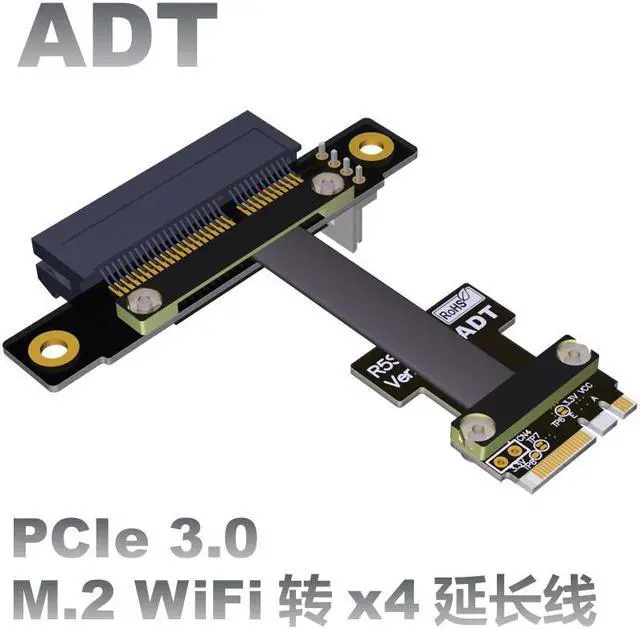

Range of adaptation: support M.2 WiFi (A.E key) to PCIE x4 interface

Speed bandwidth: pcie3.0x1

Use restrictions: only for professional engineers designated purchase, general use is not suitable can not be used, ordinary buyers do not buy.

Description of wire length:The length of wire in this shop refers to the part of visible wire, excluding PCB and connector. If PCB and connector are included, another 3cm is required.The total length is about 8cm. Please refer to the line below for the size of 5cm blue letters.

Product advantage

1.Advantages of wire, imported wire with German patent, connector imported from Taiwan, support PCIe 3.0 8G/bps full speed stable transmission

2.Line length advantage, from 3 cm to 1 m can be customized, the shop sales of the transfer wiring, wire impedance is low, line length within 60 cm support PCIe3.0 full speed.

3.The differential signal has no hole design, and there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and no CAF micro-short circuit phenomenon. The product is durable

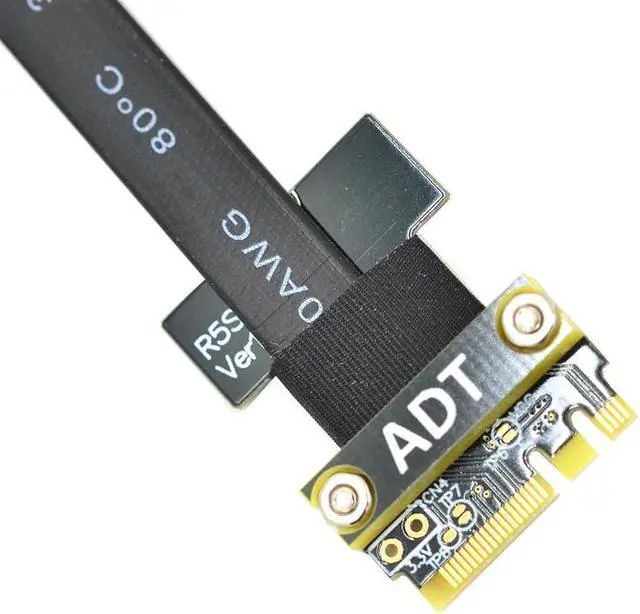

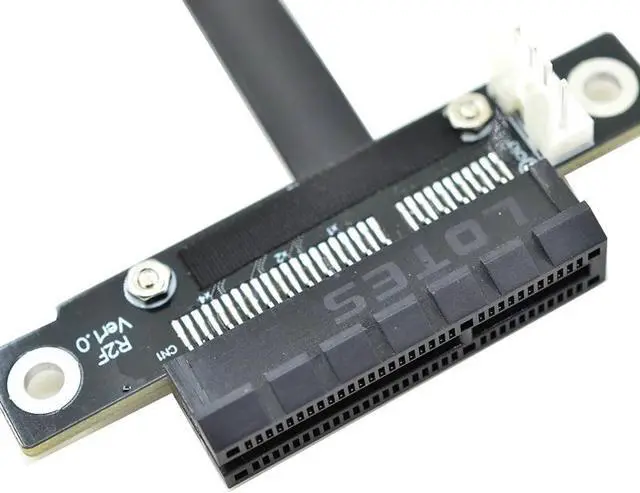

Product Photograph

Summary of technical problems:

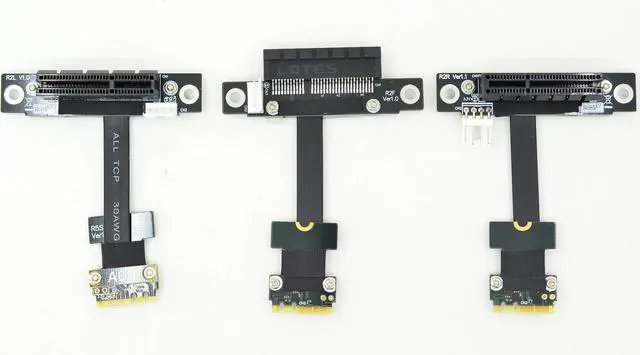

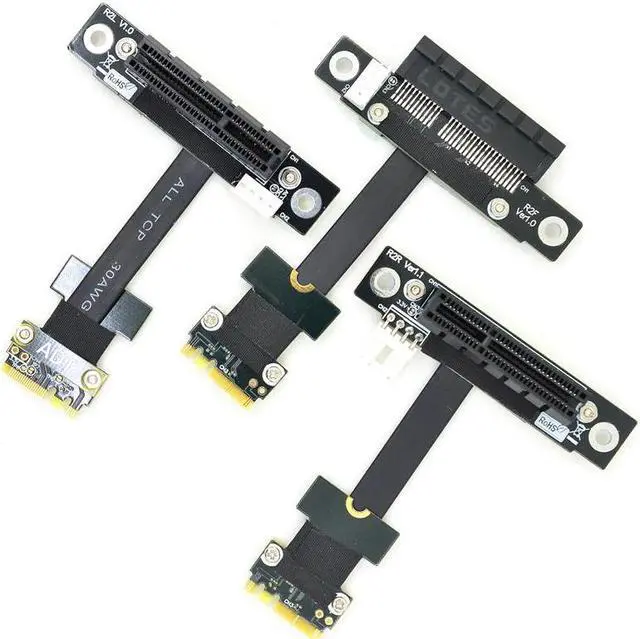

What's the difference between 90 degrees left (SL), 180 degrees left (SF), and 270 degrees right (SR)?
