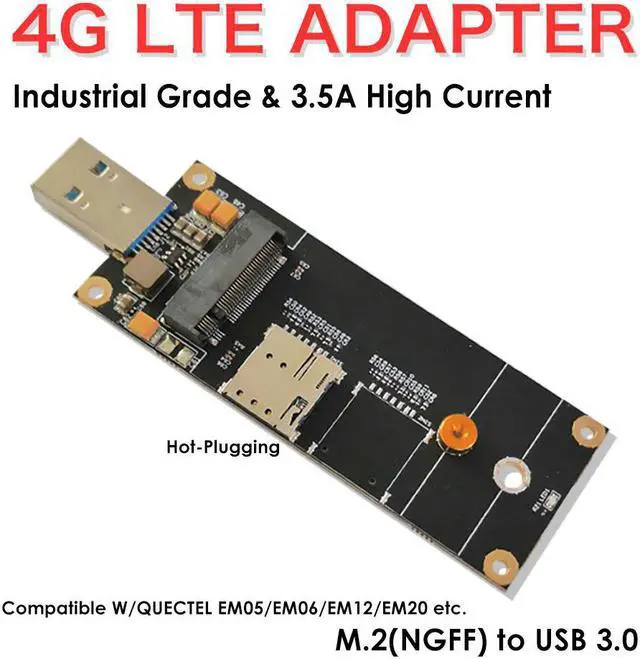

    EXVIST 4G LTE Industrial M.2(NGFF) to USB3.0 Adapter W/Nano SIM Card Slot Work with 4G LTE Module Like Quectel EM05 EM06 etc. Applicable for M2M & IoT Applications Like Raspberry Pi Industrial Router

    Be the first to review this product...
    • Compatility - It's compatible with 4G IOT NGFF (M.2) modules from some brands, like Quectel EM05, EM06 etc.
    • Application - It can be widely used for M2M IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage etc.
    • Reliability - It adopts industrial electric circuit design, DC-DC power chip and 3.5A synchronized current to make sure the module can always be working fine and never offline even under severe environment.
    • Principle - The interface definition of NGFF(M.2) is USB signal and 3.7V, the input voltage 5V by USB will be converted into 3.7V via DC-DC power chip to power on module and UIM/SIM card.
    • Interfaces - There are M.2 (NGFF) for connecting 4G IOT module, USB 3.0 connector which can be compatible with USB3.0 and USB2.0 connector, NANO SIM card slot(Push-Push Type) which supports hot-plugging but not dual SIM cards.
    +
    +
    Overview
    Specs
    Reviews

    Advantages

    • This adapter's design is based on indutrial electric circuit, DC-DC power chip and 3.5 synchronized current.
    • It's well compatible with 4G IoT M.2(NGFF) module like HUAWEI, ZTE, AIRCARD, LONGSUNG, YUGA, QUECTEL, MEIG, SIMCOM, SAMSUNG, HUAYU, DTT etc. etc.
    • It's equipped with M.2(NGFF) factor, USB 3.0 connector(USB 2.0 compatible) and NANO SIM card slot(Push-Push Type).
    • The hot-plugginig for SIM card is supported but doesn't support dual SIM cards as the module doesn't support it).
    • With DC-DC power chip equipped, the voltage source will be stable to power on module and UIM/SIM card continuously.
    • It also adopts high current as it is another key factor to make sure module is always online even under severe environment.

    Specificiation

    Basics

    • Model: 4GM2A
    • Dimension: 78.2mm(L)x31.5mm(W)
    • The design of NGFF(M.2) is compliant with industrial criteria.
    • Applicable for 4G modems with dimension 2242 or 5G modems with dimension 2252.
    • LED indicator will be always on when it is working.
    • Pure hardware desgin, no driver needed.

    Package Contents

    • 1x 4G LTE Industrial M.2(NGFF) to USB3.0 Adapter(Packed in Antistatic Bag)
    • 1x Matched Screw
