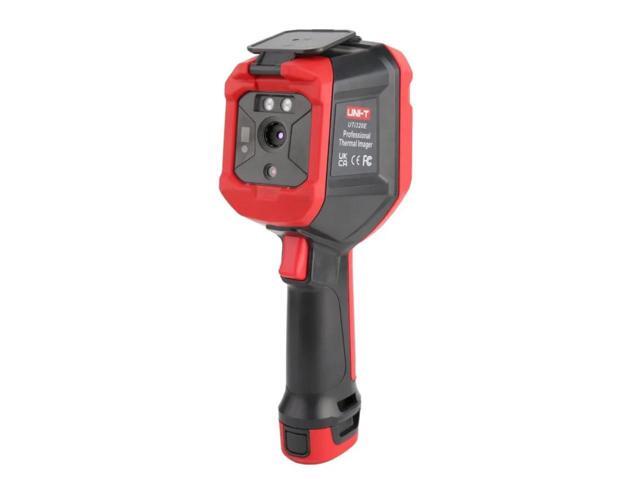

UNI-T UTi320E Infrared Thermal Imager High Resolution Handheld Thermal Camera PCB Circuit Floor Heating Detection

UNI-T UTi320E Thermal Imager Industrial Infrared Thermal Camera High Resolution 320x240 Pixel Professional Thermographic Camera



UTi320E handheld infrared thermal imager, with a 3.5 "display screen paired with 320 in imaging × The infrared resolution of 240 and visible light pixels of 200w make you see more clearly. The wide temperature measurement range of -40~400 meets more usage scenarios. The center point temperature measurement/high and low temperature automatic tracking/custom analysis object/isotherm custom temperature limit function is more conducive to quickly discovering anomalies or parts that you want to observe. In addition to the powerful functions on the body, it is also equipped with mobile PC software for viewing and analysis.



Main features of UTi320E

* 3.5 "IPS screen (640 * 480)

* Infrared resolution: 320x240

* Frequency frame: 9Hz

* Temperature measurement range: -40 to 400

* Temperature measurement accuracy: ± 2 /± 2%

* Support visible light fusion (200W visible light pixels)

* Digital amplification: 2x, 4x

* LED lighting

* Isothermal function

* Custom Image Storage File Library

* High and low temperature limit alarm

* Fast Cold Hot Spot Tracking

* Custom temperature measurement (point, rectangle, circle, line)

* PC analysis software+PC projection software

* Mobile app supports Wi Fi photo download

* Type C direct charging/detachable lithium battery, battery pack can be charged separately

* IP54 protection level, 2 meter drop
