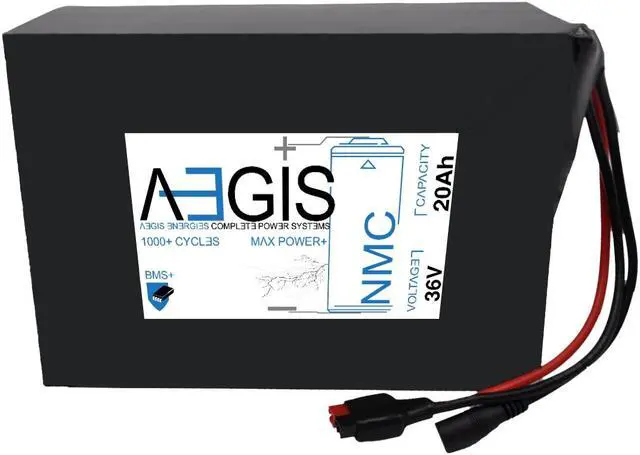

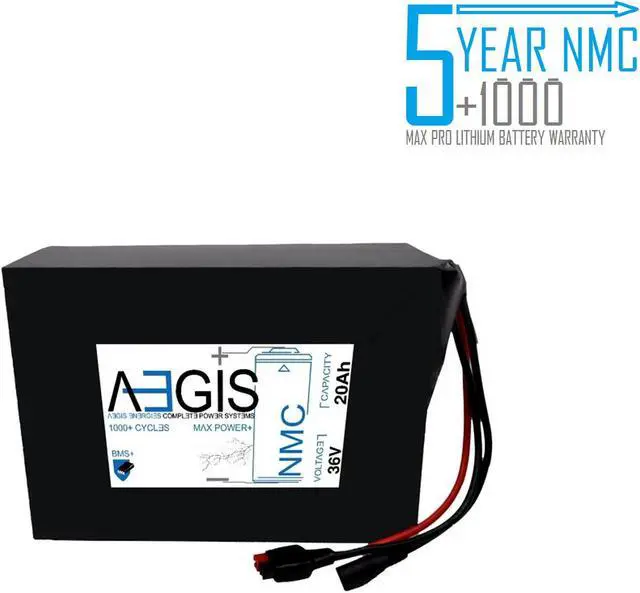

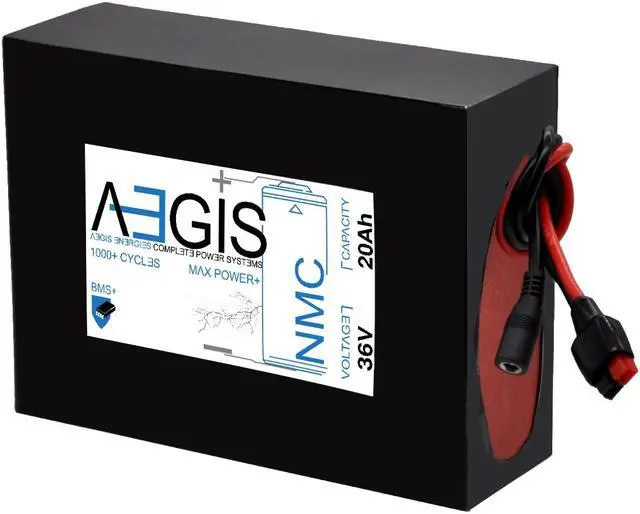

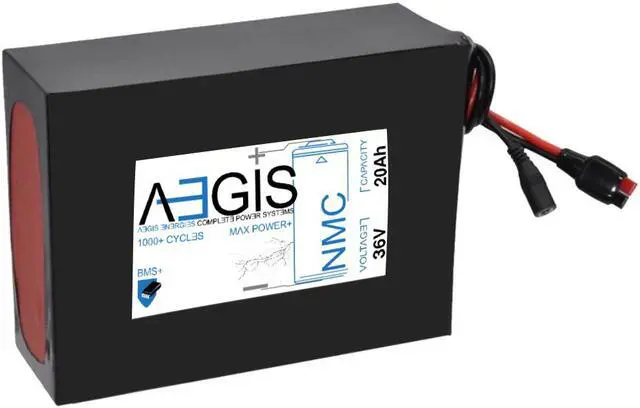

The Aegis 36V 20Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 36V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson Powerpole connectors making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.
Advantages
Light weight, higher energy density, and smaller size than any rechargeable battery
No memory effect and rechargeable
Longer storage life than NiMH battery
Built-in IC chip will prevent battery pack from over-charge, over-discharge and prolongs battery life
Specifications
Battery Type PVC Pack
Battery Chemistry Lithium-Ion
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 36V
Capacity (Ah) 20Ah
Energy Stored (Wh) 720 Watt-Hours
Weight 8.84 lbs. (4.01 kg)
Dimension (L x W x H) 205 mm x 155 mm x 70 mm
Cycle Life 1000+ cycles
Normal Charge Current 2.0 Amps
Maximum Continuous Charge Current 5.0 Amps
Nominal Continuous Discharge Current 10.0 Amps
Maximum Continuous Discharge Current 20.0 Amps
Maximum Pulse (Peak) Discharge Current (2 sec.) 40.0 Amps
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing
Warranty: 5 years NMC Battery Warranty
30 Day Money Back Return | 2 Year Repair/Replace
3-5 Year Pro Rated Based on Remaining Capacity
Cancellation: Within 24 Hours ? No charge
Shipping: Standard within 2 business days
