Weastlinks PCIe x16 to x16 adapter Cable graphics video cards extension 90 Degree Angled design for ITX motherboard chassis mini pc-case

Feature:

Product name: PCIe x16 to x16 extension cable for ITX.

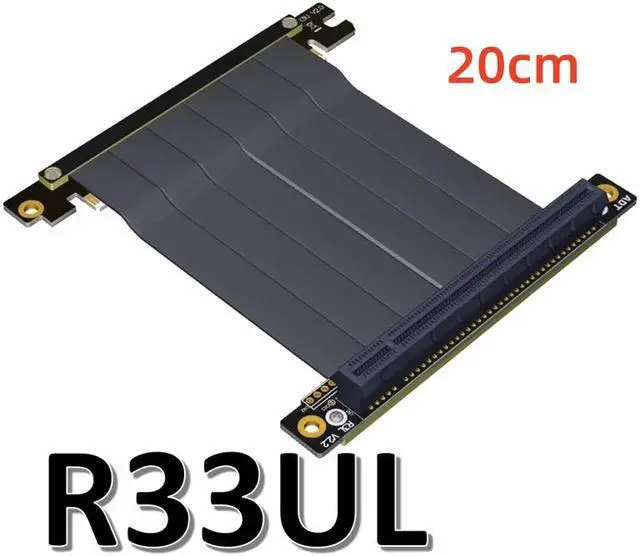

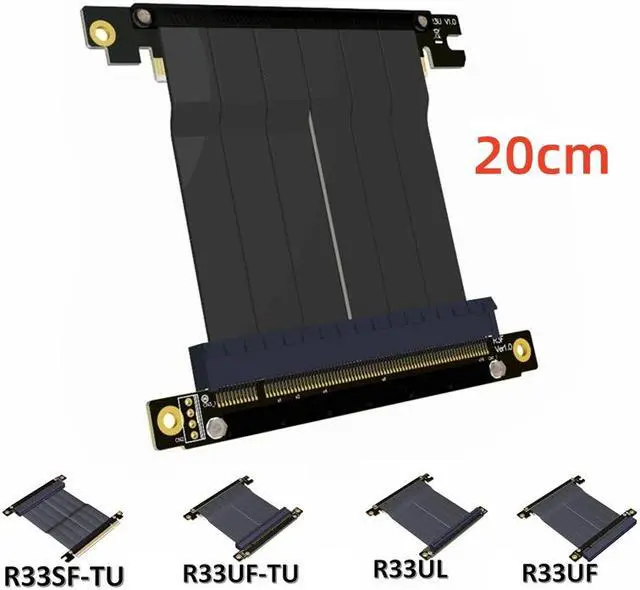

Product model: R33UF-TU , R33SF-TU , R33UL , R33UF.

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.).

Wire length: 20cm, the length can be customized.

Application: PCIe x16 graphics video card to PCIe x16 slot extension cable for ITX mainboard housing.

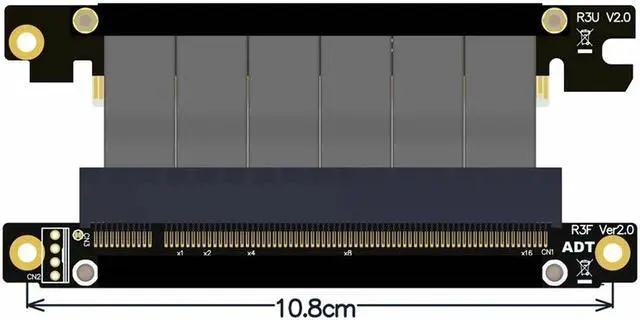

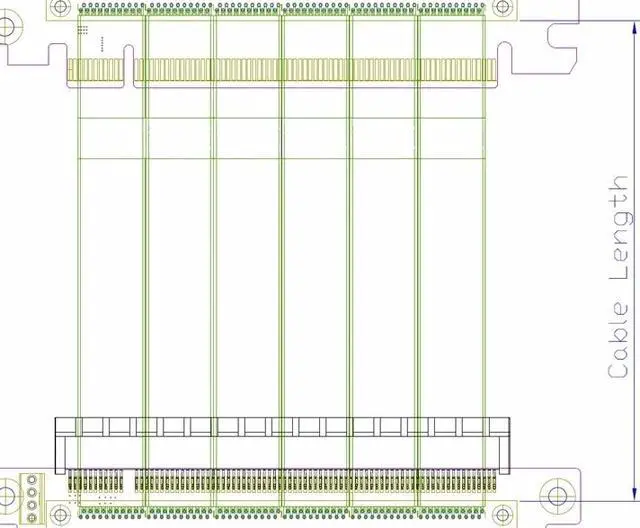

Cable length Description:The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector.


Compatibility list:

ITX Chassis model , ADT model , Note
zs-a4 R33UL 18cm
zs-a4m R33UL 18.5cm
zs-4s R33UL 18.5cm
zs-a4dc R33UL 18.5cm
TBOX M41 R33UF-TU 18.5cm
D-A4W R33UF-TU 19.5cm
D-A4L R33UF-TU 18cm
LZmod LZ-A4 R33UF-TU 20cm
sunmilo T03 R33UF-TU 18.5cm
GEEEK A31 a4 sfx R33UF-TU 17.5cm
GEEEK A35 a4 sfx R33UF-TU 18cm
GEEEK A50 a4 sfx R33UF-TU 18cm
GEEEK A50x a4 sfx R33UF-TU 18cm
DAN Cases A4-SFX V3 R33UF-TU 18.5cm
cube x1 R33UF-TU 18.5cm
cube x1m R33UF-TU 18.5cm
makertime A2 R33UF-TU 18.5cm
SeaDamaged SE mini4 R33UF-TU 17.5cm.

Product advantage:

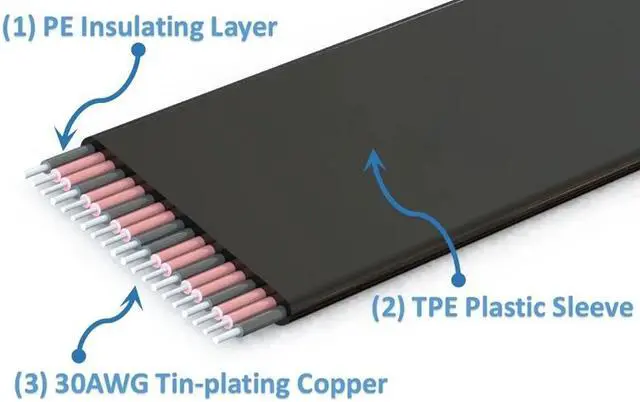

1. Wire advantage, using German patented imported wire, using Taiwan imported Lotes connector, high frequency support PCIe 3.0 stable transfer.

2. Cable length advantage, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.

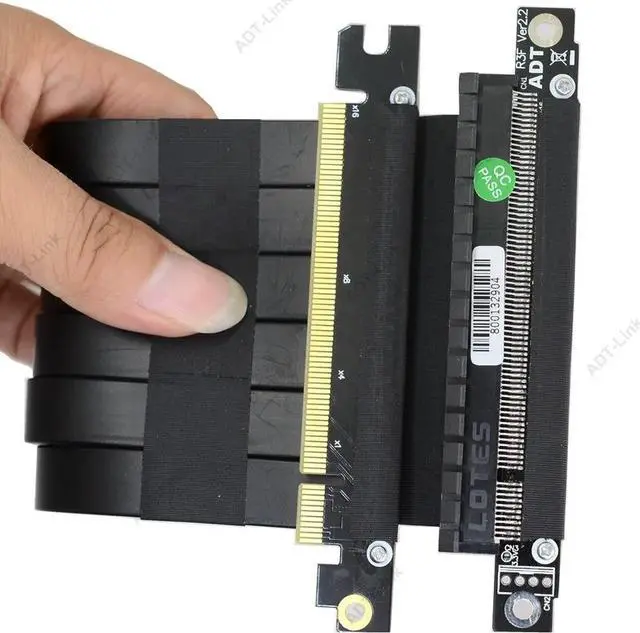

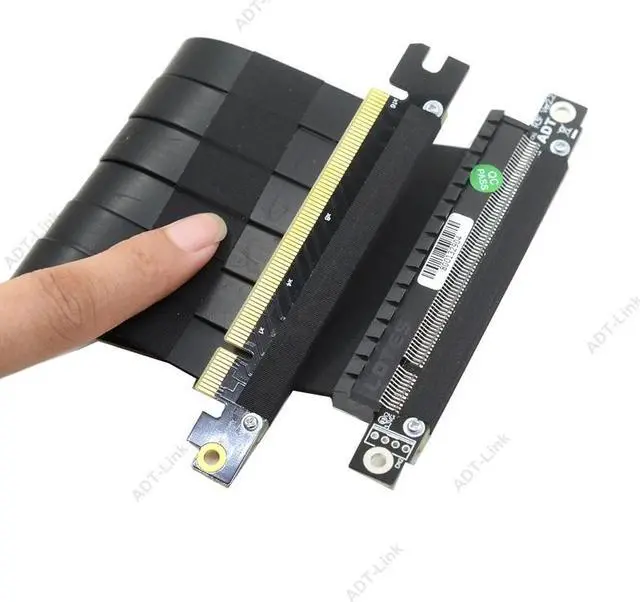

5. The cable used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and is fastened with screws and hex nuts. The product is strong and reliable, resistant to pulling, anti-interference, and will not be broken. The nail problem. The wire can be bent and folded without affecting the use.

6. PCB dwarf and fat design, dwarf will not get stuck to the graphics card, add fat and long design to make the board easier to install, reducing the chance of damage.

Purchase Notice:

1. All kinds of Motherboard and equipment condition such as signal driving ability is different, the results of our test does not guarantee that it is the same as your test results. You need to know, as long as using a extension cable, the signal will have a loss. The buyer who requires perfectly, please don't buy.

2. The PCI-E card or motherboard is an electronic equipment which will increase over time and oxidant aging. It will become more unstable if plug in an extension cable. Does not support the old equipment. The device which is more than four years, please don't buy.

Packing list:
1 x PCIe x16 to x16 extension cable for ITX.
