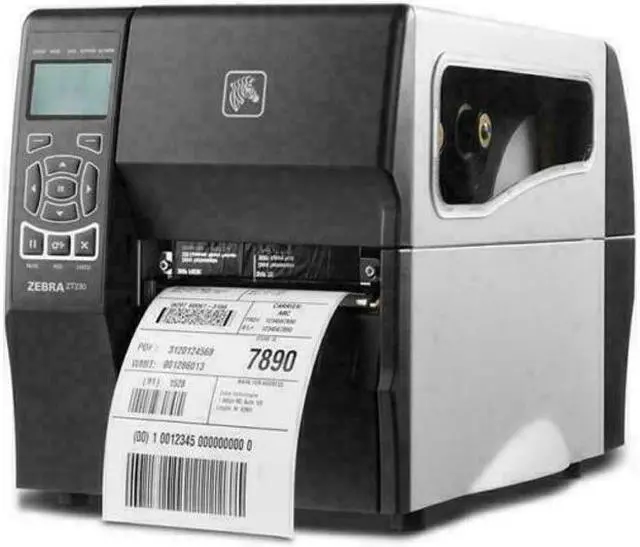

-The Zebra ZT230 Industrial Direct Thermal Tabletop Label Printer with metal frame which prints 4" wide labels at 6" per second and 203 dpi (8 dots/mm). An element energy equalizer (E3) and side-loading metal print mechanism with head open lock help to increase work efficiency. It has an LCD graphical user interface for reading and navigation and 128 MB Flash and 128 MB RAM for high throughput. Media sensors are transmissive and reflective to accommodate different label types including continuous, die-cut, notch, and black mark. Connection options include serial and USB 2.0.
Specifications Dimensions* 10.9 x 9.5 x 17 inches/277 x 242 x 432 mm (H x W x D) Print width x length
Width: 4.09" /104 mm width, Length: 157"/3, 988 mm Print speed 6"/152 mm per second Label and liner width
Minimum: 0.75" / 19.4 mm, Maximum: 4.50" /114 mm Maximum non-continuous label length 39"/991 mm Maximum Media Roll Size 8.0" /203 mm OD on a 3"/76 mm ID core, 6.0" /152 mm OD on a 1"/25 mm ID core Media thickness 0.003" / 0.076 mm to 0.010" / 0.25 mm ID Core 1.0" / 25.4 mm Agency approvals IEC 60950, EN 55022 Class B, EN55024, EN 61000-3-2, EN 61000-3-3
