HDMI 2.0 Extender Repeater HDMI 2.0 Signal Amplifier 4K@60HZ 3D HD HDMI-compatible Extension Female-to-Female Up to 40 m (131 ft)

HDMI Extension HDMI 2.0 Signal Amplifier 4K@60HZ 3D HD HDMI-compatible Extender Repeater Female-to-Female Up to 40 m (131 ft)

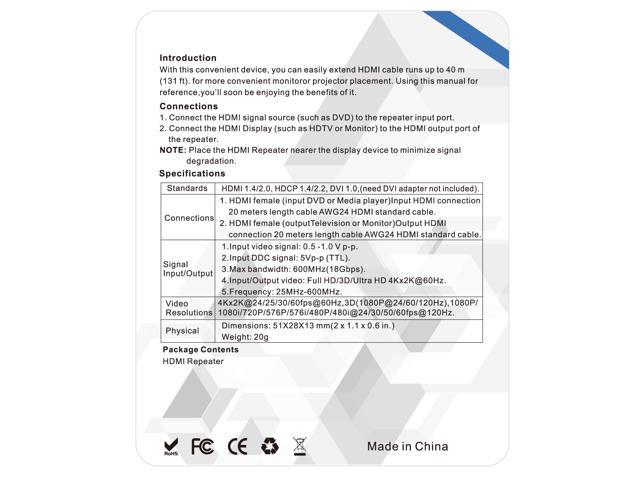

Introduction

With this convenient device, you can easily extend HDMI cable runs up to 40 m (131 ft). for more convenient monitoror projector placement. Using this manual for reference, you'will soon be enjoying the benefits of it



Connections

1.Connect the HDMI signal source(such as DVD)to the repeater input port

2.Connect the HDMI Display(such as HDTV or Monitor)to the HDMI output port ofthe repeater



NOTE: Place the HDMI Repeater nearer the display device to minimize signal degradation



Specifications

Standards HDMI 1.4/2.0, HDCP 1.4/2.2, DVI 1.0, (need DVI adapter not included)



Connections

1.HDMI female(input DVD or Media player)Input HDMI connection,20 meters length cable AWG24 HDMI standard cable.

2.HDMI female(outputtelevision or Monitor)Output HDMI connection 20 meters length cable AWG24 HDMI standard cable



Signal Input/Output/

1.Input video signal: 0.5-1.0V p-p.

2.Input DDC signal: 5VP-P(TTL).

3.Max bandwidth: 600MHZ(18GBPS).

4.Input/Output video: Full HD/3D/Ultra HD 4KX2K @60HZ.

5.Frequency: 25MHZ-600MHZ



Video Resolutions

4Kx2K@24/25/30/60fps@60Hz,3D(1080P@24/60/120Hz)1080P/1080i/720P/576P/576i/480P/480i@24/30/50/60p@120Hz



Physical

Dimensions: 51X28X13 mm(2 x 1.1 x 0.6 in.)

Weight: 20g



Package Contents

HDMI Repeater
