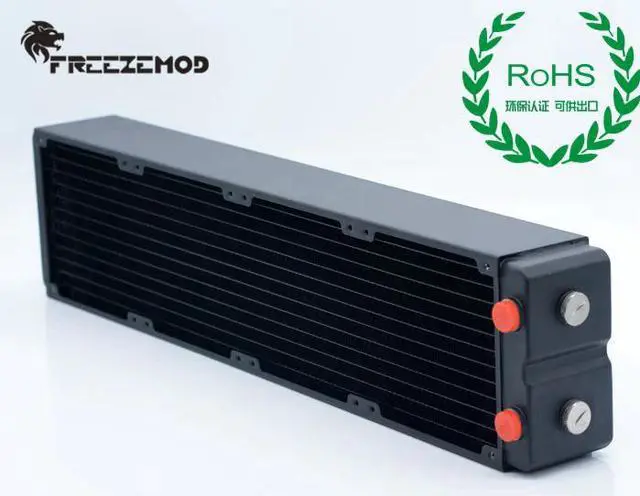

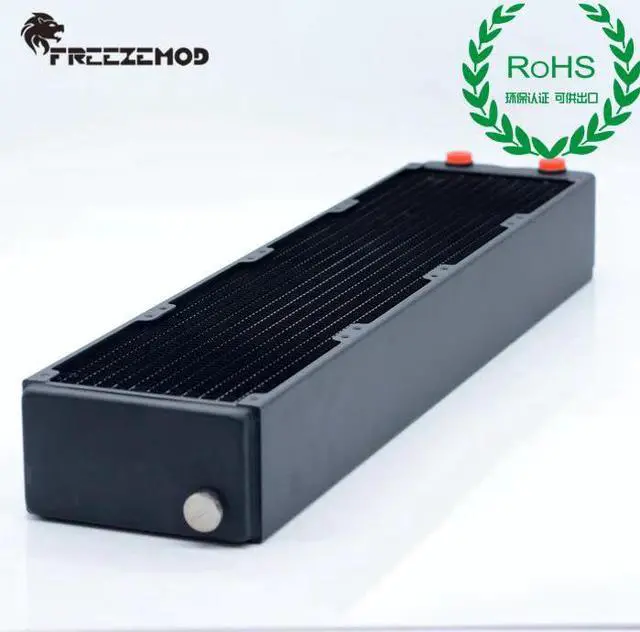

computer pc water cooler copper radiator 3 layers 65MM thick copper fins five holes G1/4. TSRP-HP65-480

Description:

Model: TSRP-HP65

Name: Copper radiator

Specifications:

TSRP-HP65-480:about length 511mm* width 120mm* thickness 65mm (excluding inlet and outlet thread height and the end plug thickness)

Accessories: Long screws 16 pcs (total length about 31mm) + short screws 16 pcs (total length is about 9mm) and the thread is 6#32. Water stop plug *3 (installed)

Material: water chamber + flat tubebrassFincopperGuard plate stainless iron SUS430

Net weight2.092

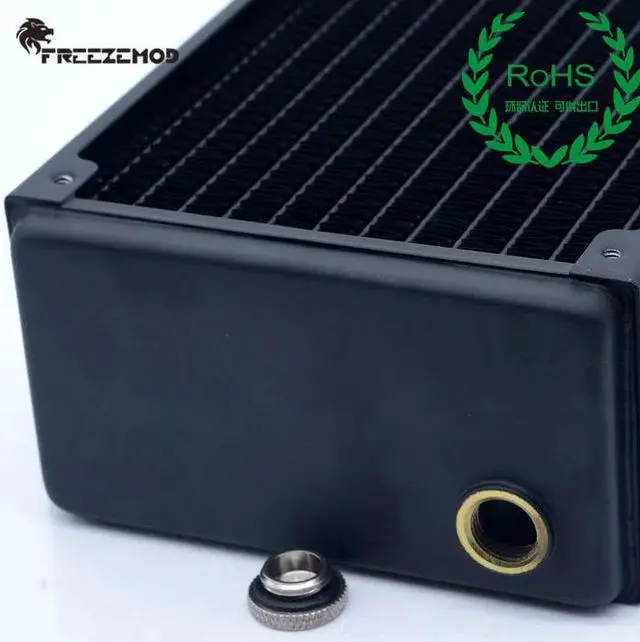

Thread: G1/4

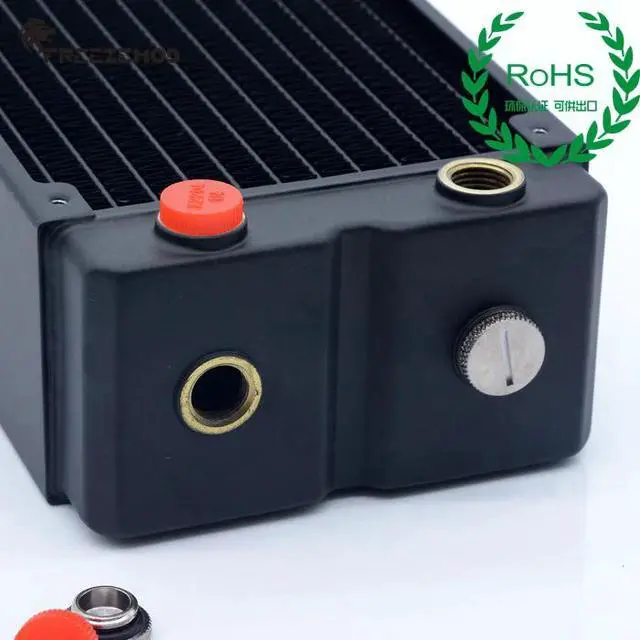

Threaded hole position: 5 (Launching chamber * 4 + upper water chamber * 1)

Number of pipes: 12 * 3 layers

Fin spacing: 4mm

Surface treatment: spraying

Packing list

480 copper radiator*1

Screw*1 set

Protected original design, please do not copy.

Note: The solder of this product is made of tin with a purity of 99.6%, which is not the purity of 60% tin in the market. Therefore, the whole series has passed ROHS 2.0 certification and can be exported to the EU.

Important note:The below four situation will not accept any dispute for refund,please pay attention to it before order the copper radiator,thank you.
