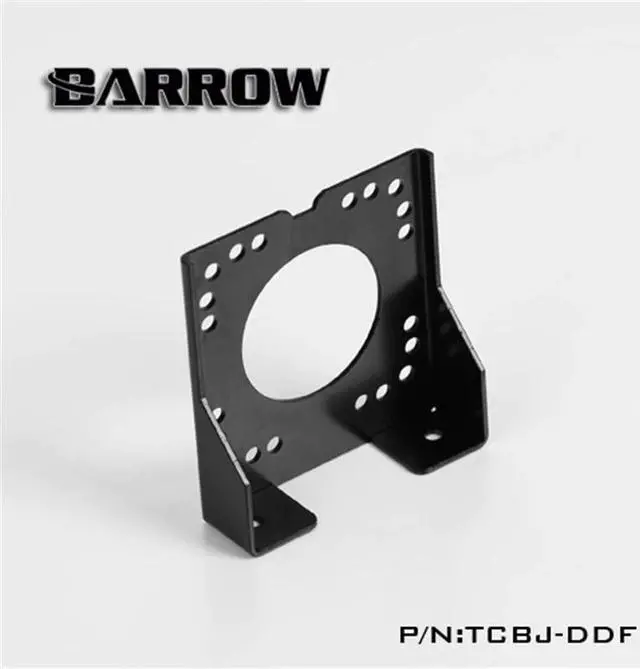

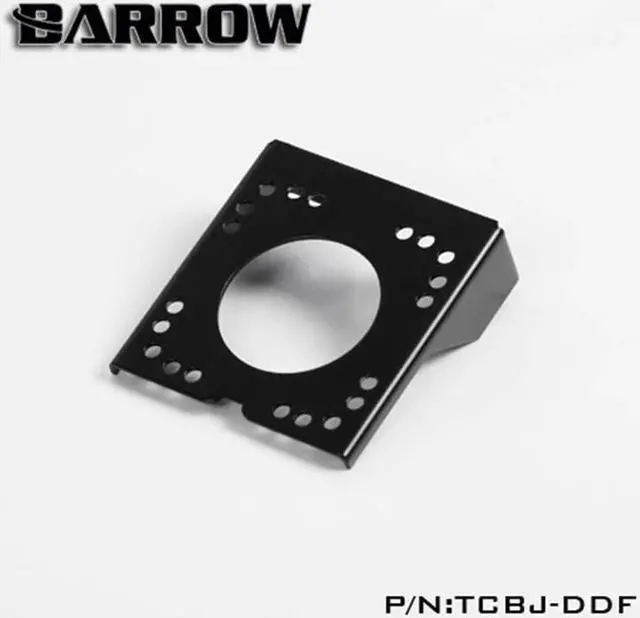

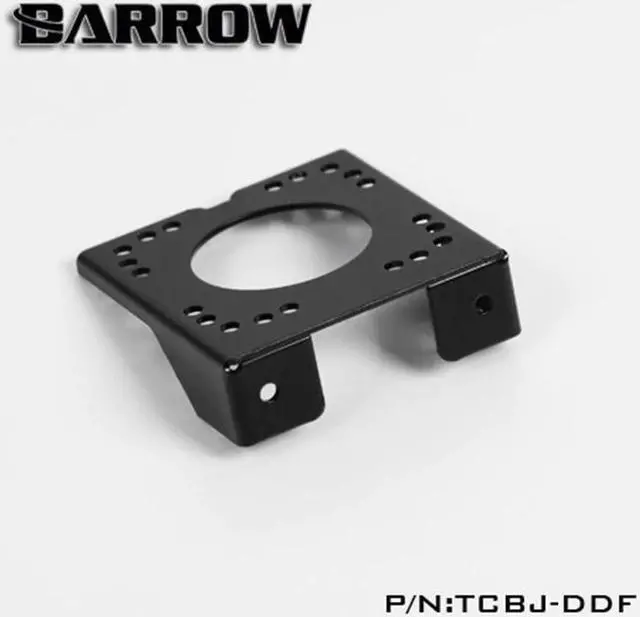

DDC Bracket Water Pump Row Expand Aub-stent for Water Cooling TCBJ-DDF

Suitable for 120 mm cold type hole position to expand stents TCBJ - G and TCBJ - P, by matching the expand stents, implementation of DDC type water pump installation fixed.

The bracket combines class DDC pump mounting hole and the mounting angle of demand, with a plurality of mounting holes, DDC pump can achieve DDC collocation cooling package to achieve the level of need 360 degrees 4 angle 90 degrees vertical installation and installation of a variety of location.

General M4 screw mounting and fixing, the whole installation type pump Gaigengke pump pump box + box collocation

Material: alloy steel

Number: 1PCS / only

Screw: M4/4PCS

Packing: box

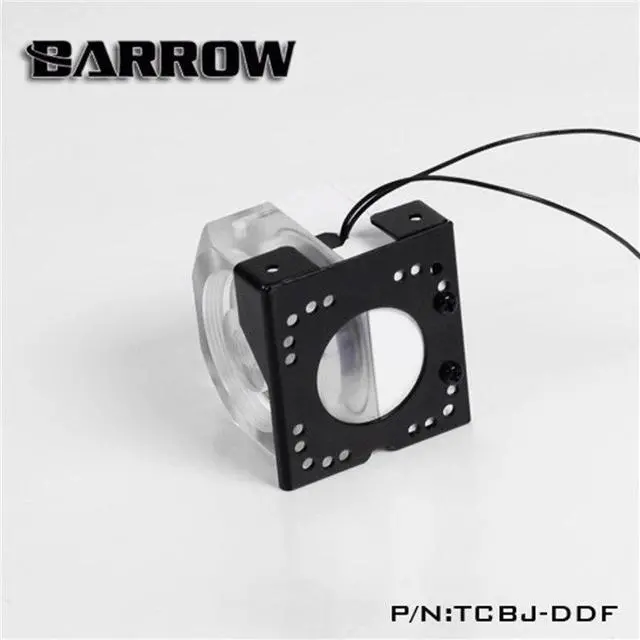

Using the method of fixing the M4 screw and nut in the accessory package, install the extension bracket and the cold row installation bracket first, then select the appropriate installation position and direction, and install the DDC pump on the bracket

Vertical installation plan sample 90 degrees
