OLED/TFT Color DevKit ESP32 Watch Development Board

What is it?

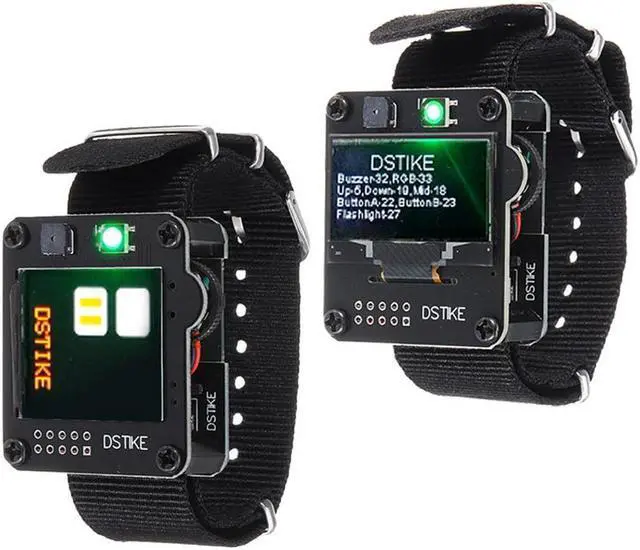

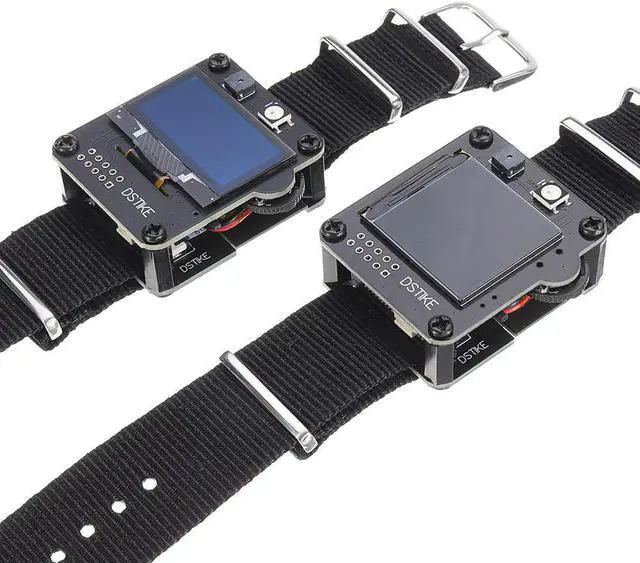

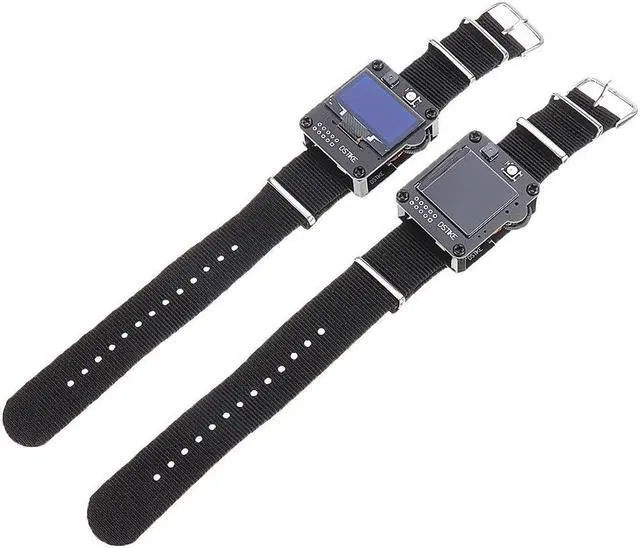

It is a ESP32 Watch development board. There are two versions: OLED version and TFT color version. Both version share the same bottom board.

Why did you make it?

This product was planned at the same time of deauther wristband. I learned a lot of experience from deauther wristband and I knew ESP32 is a better choice for a "Watch".

The break ou pads are also designed to connect different sensors.

TX/RX could be used to communicate with computer or other control board.

17/16 is IIC port could be connected with RTC module or other IIC sensors.

SVP/SVN could input ADC signals.

25/26 could output DAC signals.

What makes it special?

Small size: 3.8x4.5cm

Height:1.5cm

Double 4 layer board

600mAh battery inside

On/OFF Power Switch

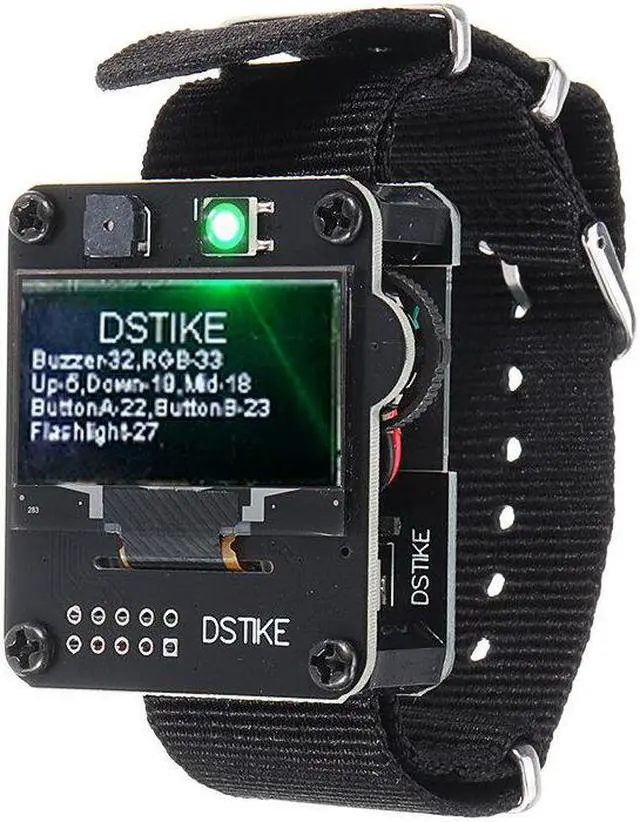

OLED version:1.3OLED SH1106(SDA-17,SCL-16)

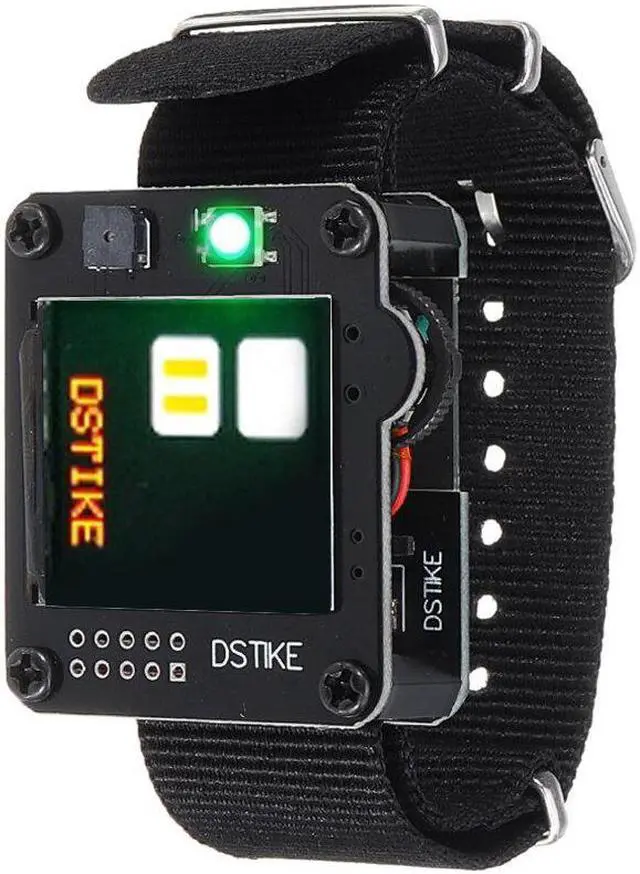

TFT color version: ST7789 240*240 LCD(SDA-17,SCL-16,DC-22,RES-23)

Buzzer-32

WS2812b RGB LED-33

Navigation Button(Up-19,Center-18,Down-5)

OLED version external slide button(22,23)

Highlight LED(27)

Indicate charging LED(On means Charging,OFF means Full)

Reset and Flash Button at Bottom board

Break ou GPIOs(TX,RX,17,16,SVP,SVN,25,26,GND,3V)

SD Card support

GPIO12--DAT2

GPIO13--DAT3

GPIO15--CMD

GPIO14--CLK

GPIO2--DAT0

GPIO4--DAT1

GPIO21--card

Tutorial:

1.Install the environment for ESP32

2.Install OLED library

Install TFT LCD library

3.Install Adafruit NeoPixel Library

4.Code Example for oled version

Code Example for TFT color version

Upload config

Package Included:

1 x DSTIKE ESP32 Watch DevKit
