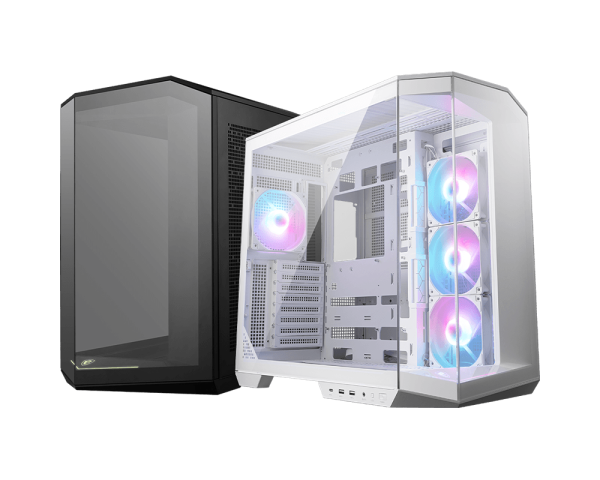

MAG PANO 100R PZ
A New Turning Point

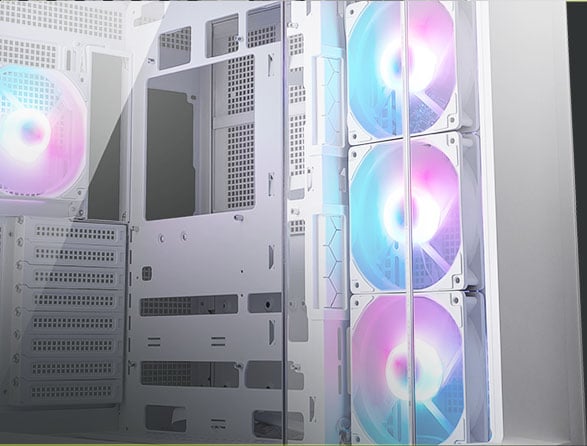

The MAG PANO 100R PZ comes with a 270-degree tempered glass panel and is compatible with two different sizes of Back-connect motherboards, adding to the cleanliness of your PC build while enhancing its overall aesthetics and organization. MAG PANO 100R PZ offers spectacular ambient illumination with 3 x 120 mm Reverse-blade ARGB PWM intake fans and 1 x 120 mm ARGB PWM exhaust fan pre-installed. This PC case offers a vertical graphics card installation bracket.
/11-320-067/2.jpeg)

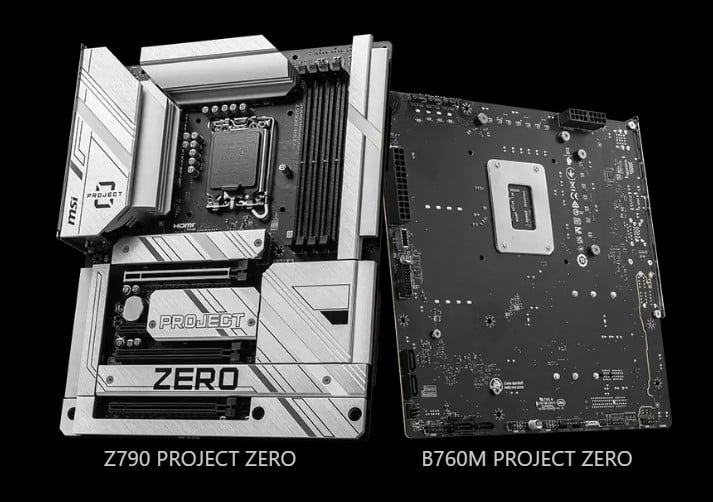

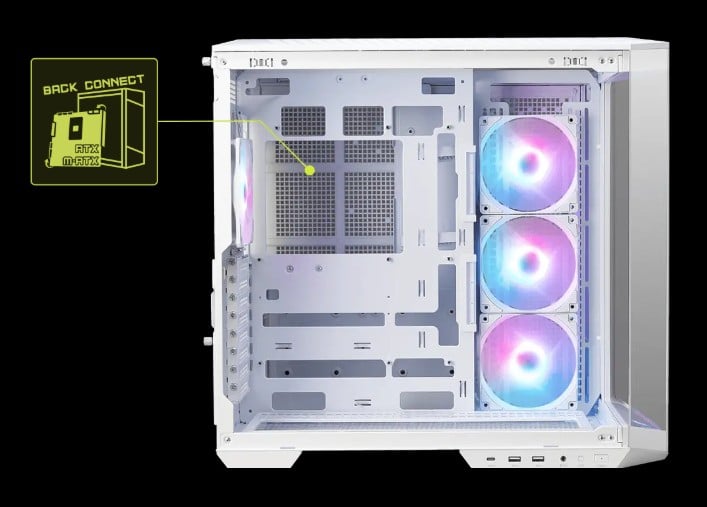

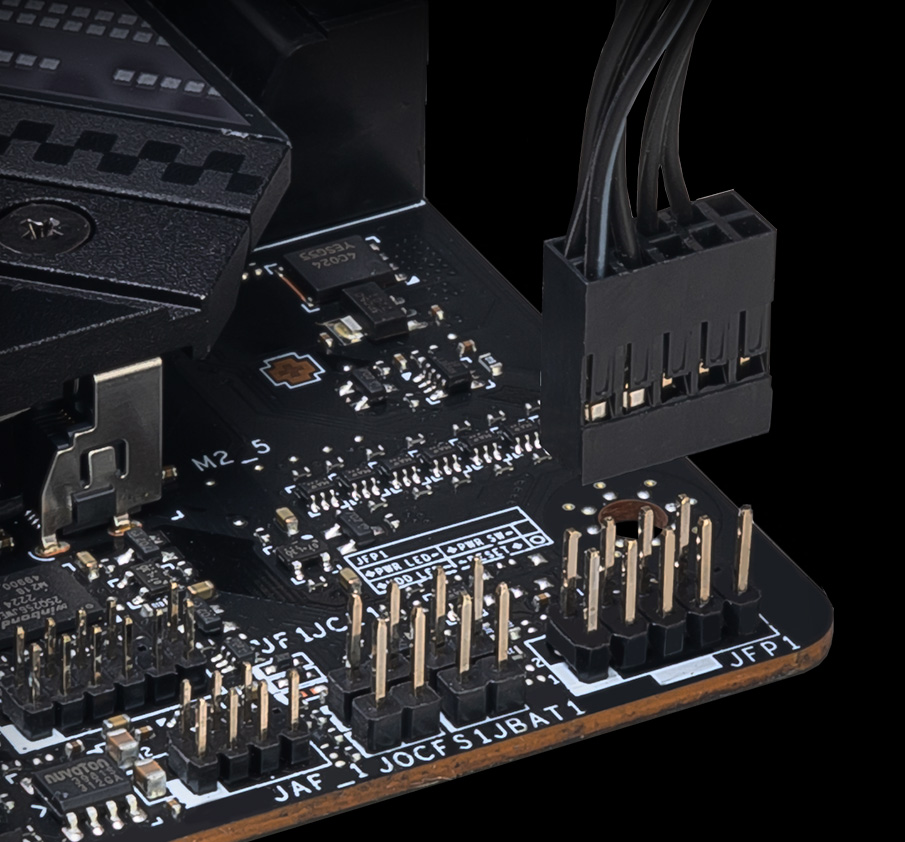

Organize Easily
Supporting Back-connect motherboards simplifies the installation process and makes cable management easier. It also prevents interference with cables in front of the motherboard, keeping the interior of the case much cleaner.

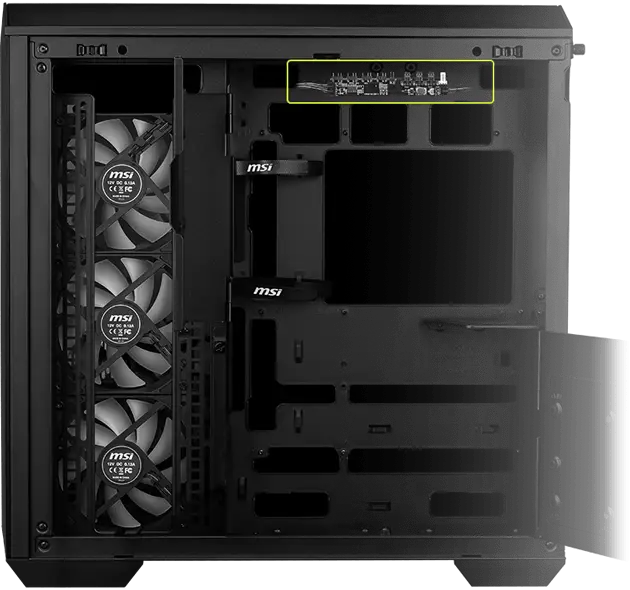

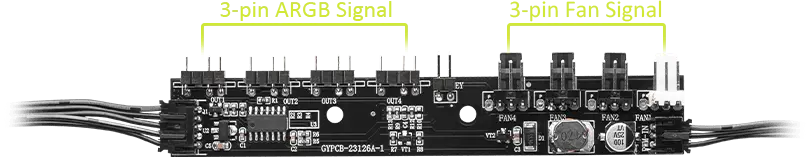

This PC case comes pre-installed with a 1-to-4 ARGB-PWM control board, helping to organize fan cables and control ARGB lighting easily.
/11-320-067/3.jpeg)

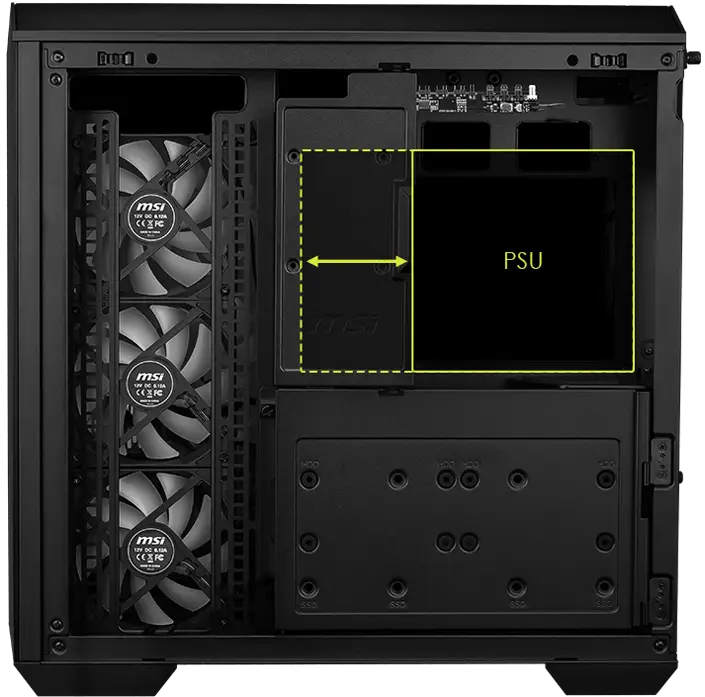

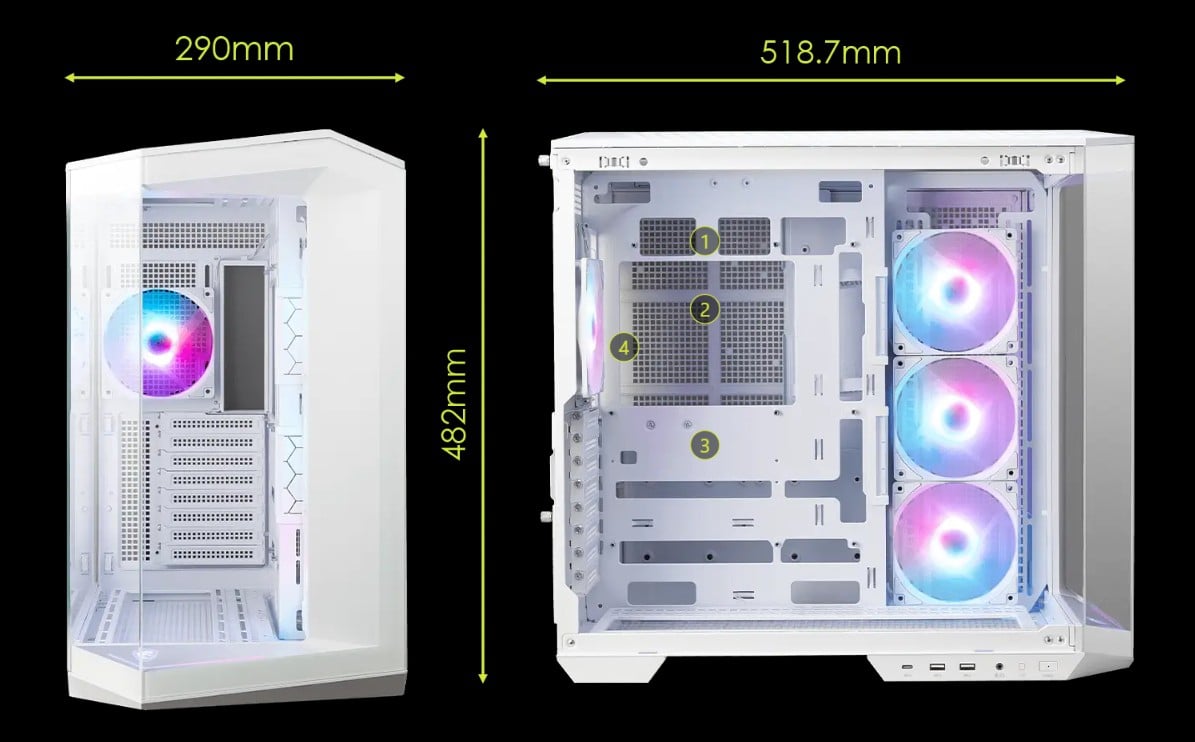

Extensive Compatibility

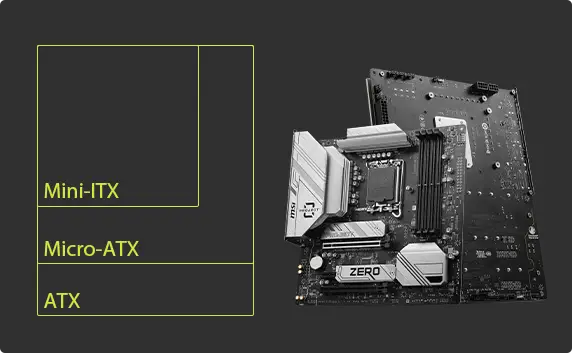

Motherboard support: ATX and Micro-ATX (Back-connect and regular motherboard compatible) and Mini-ITX (regular motherboard compatible).
Component clearances:

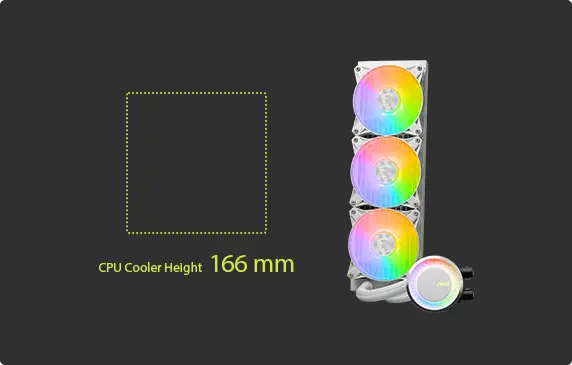

1. CPU Cooler height: 166 mm

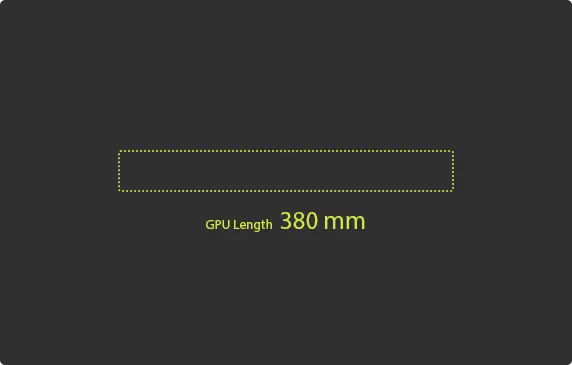

2. GPU length: 380 mm

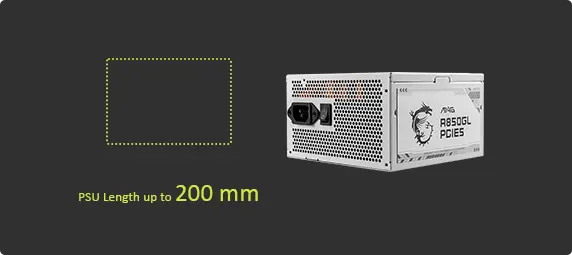

3. PSU length: Up to 200 mm

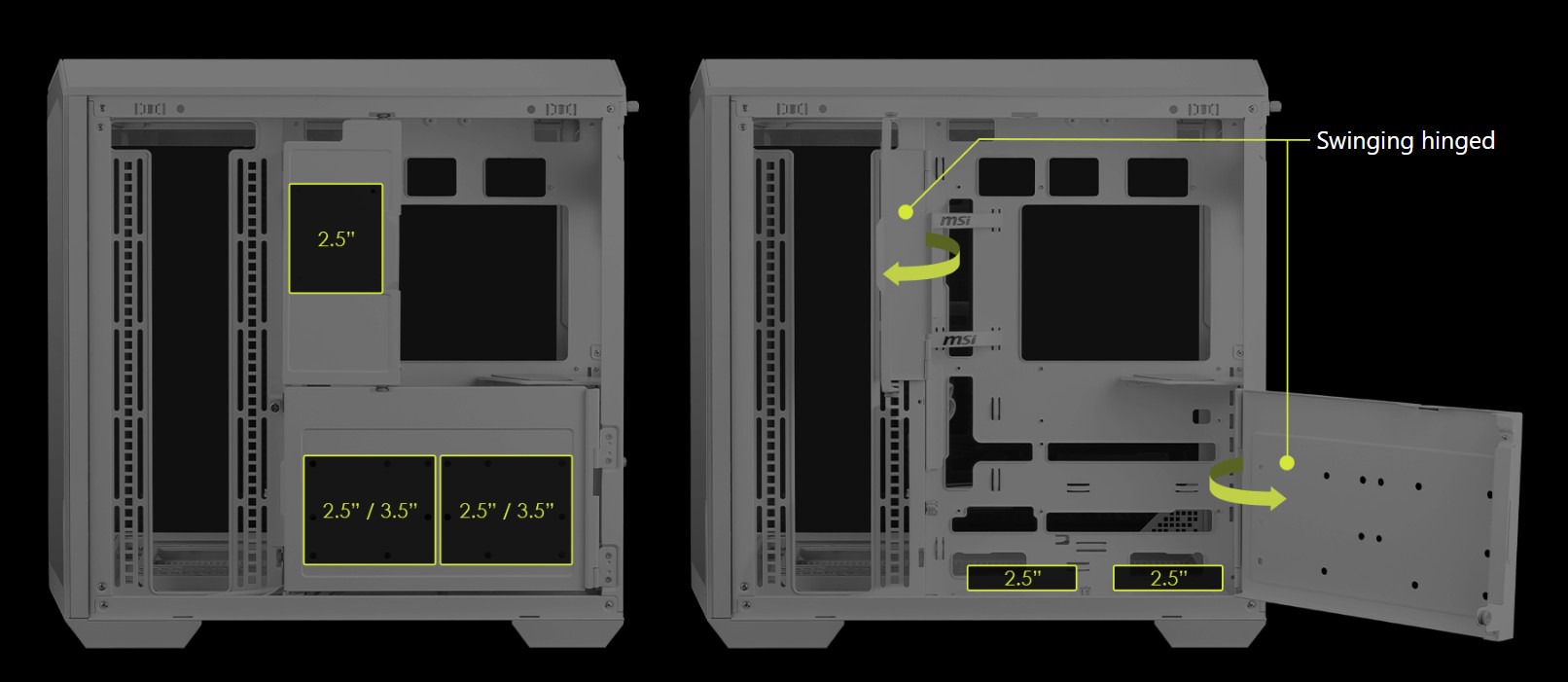

Storage options
- 3 x 2.5"
- 2 x 2.5"/3.5" SSD combo bay
/11-320-067/4.jpeg)

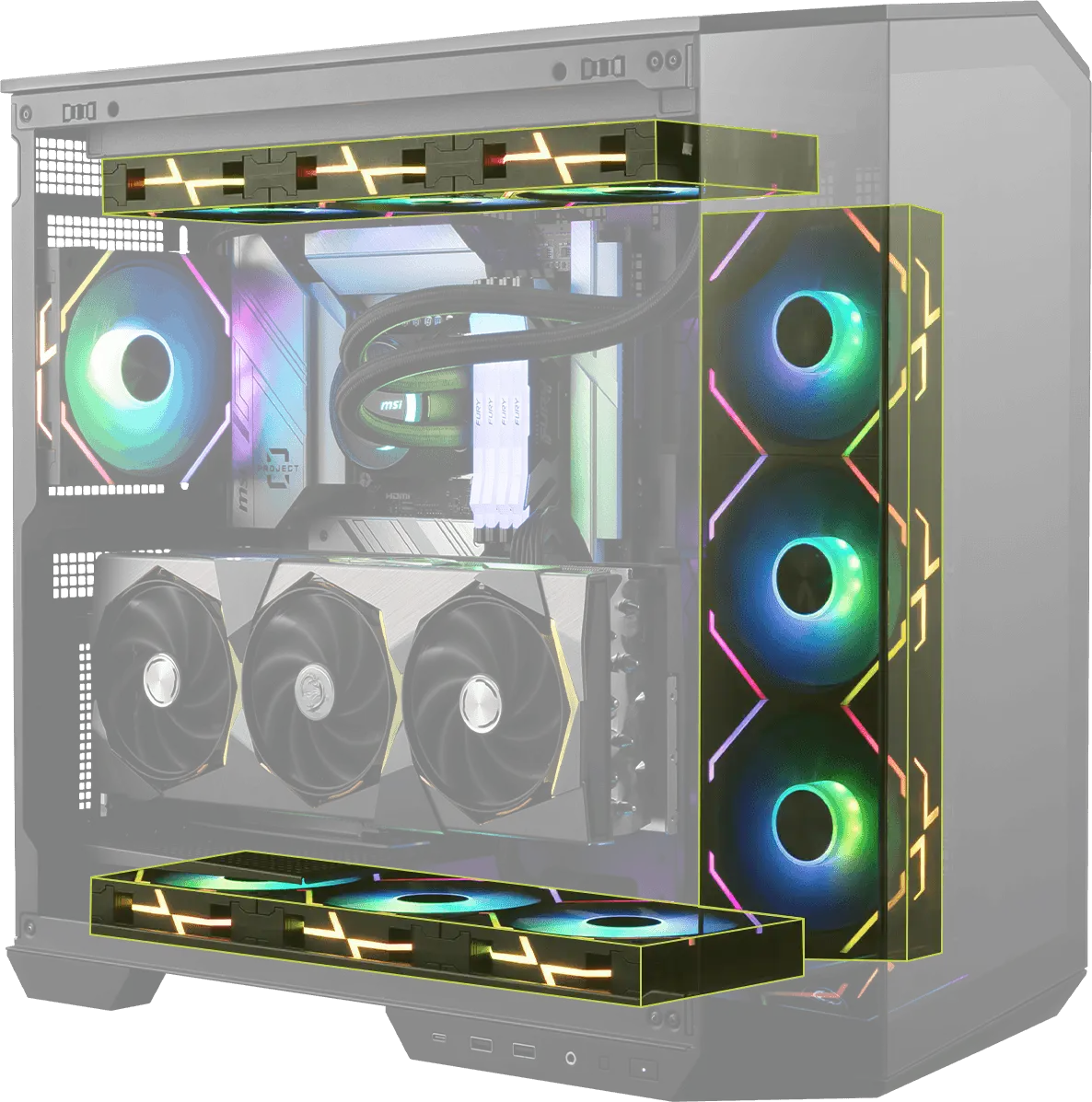

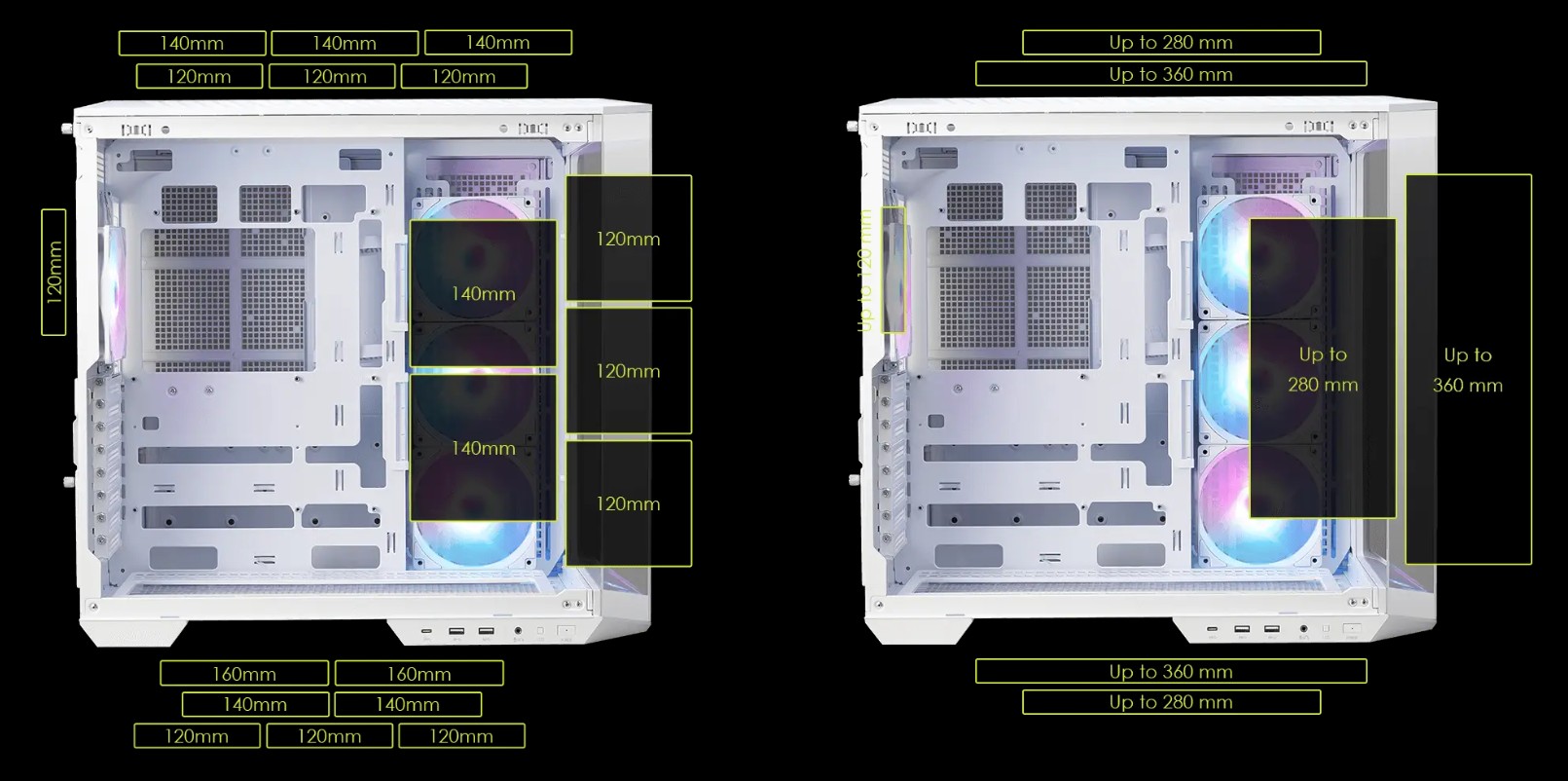

Extensive Cooling Support
The MAG PANO 100R PZ fan cooling options include:
- Top: 3 x 120 / 3 x 140 mm fans
- Rear: 1 x 120 mm fan*
- Side: 3 x 120 / 2 x 140 mm fans*
- Bottom: 3 x 120 / 2 x 140 / 2 x 160 mm fans
* Pre-installed with 3 x 120 mm reverse blade ARGB fans at the side and 1 x 120 mm ARGB fan at the rear.
/11-320-067/5.jpeg)

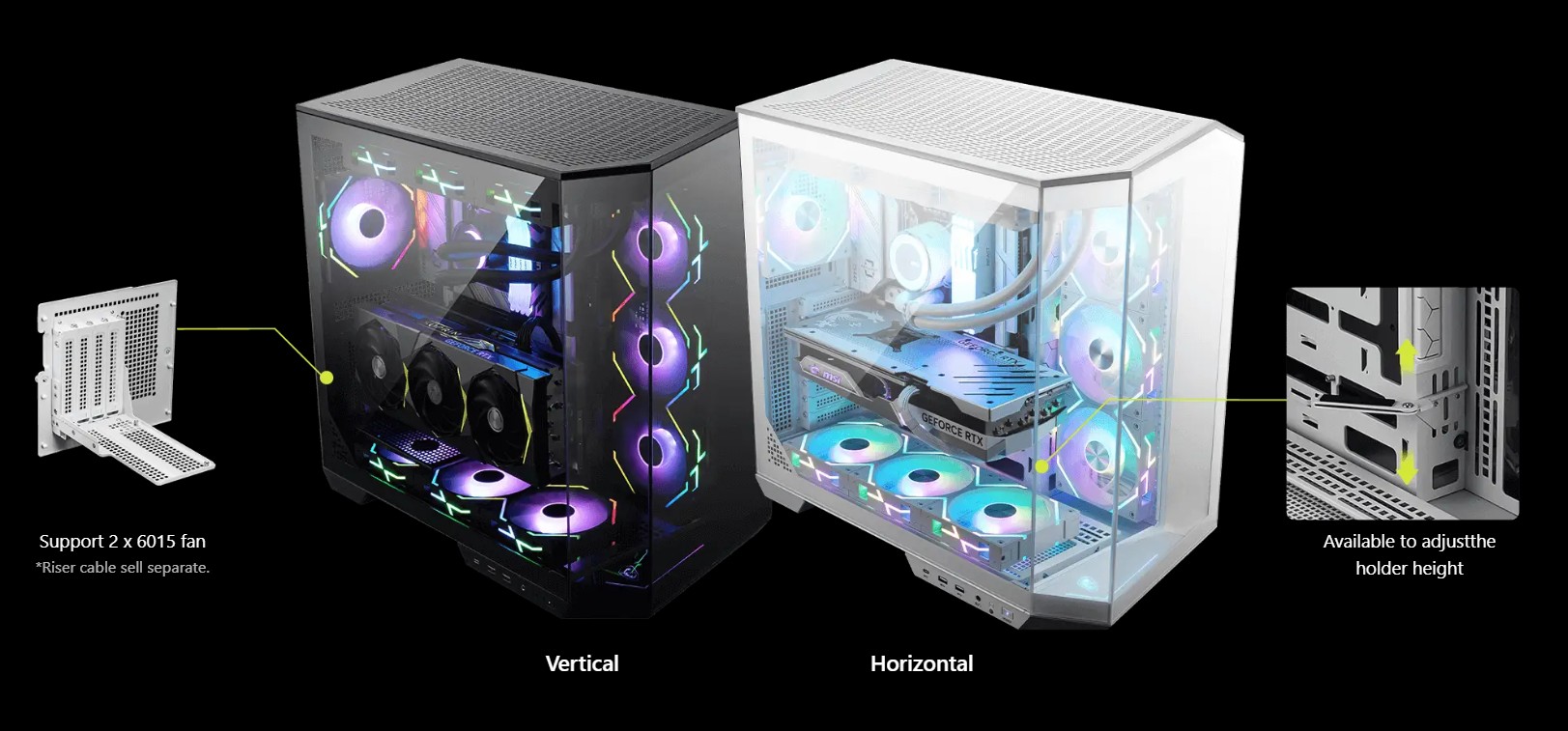

Graphics Card Support
This PC case comes with Switchable PCIe brackets for expansion slot options:
1. Standard 8-slot PCIe expansion plate (pre-installed).
2. Vertical 4-slot* PCIe expansion plate which includes additional exhaust fan docks.
* PCIe riser cable not included.
/11-320-067/6.jpeg)

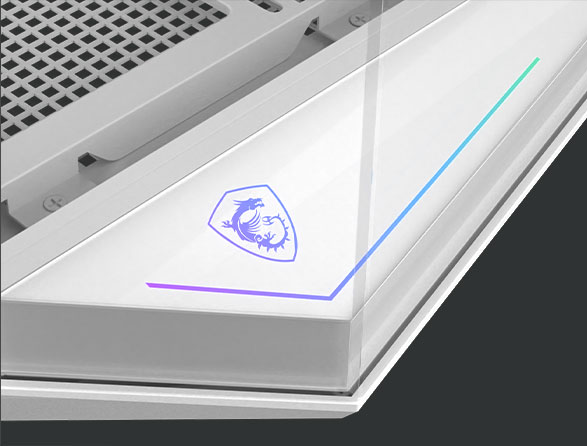

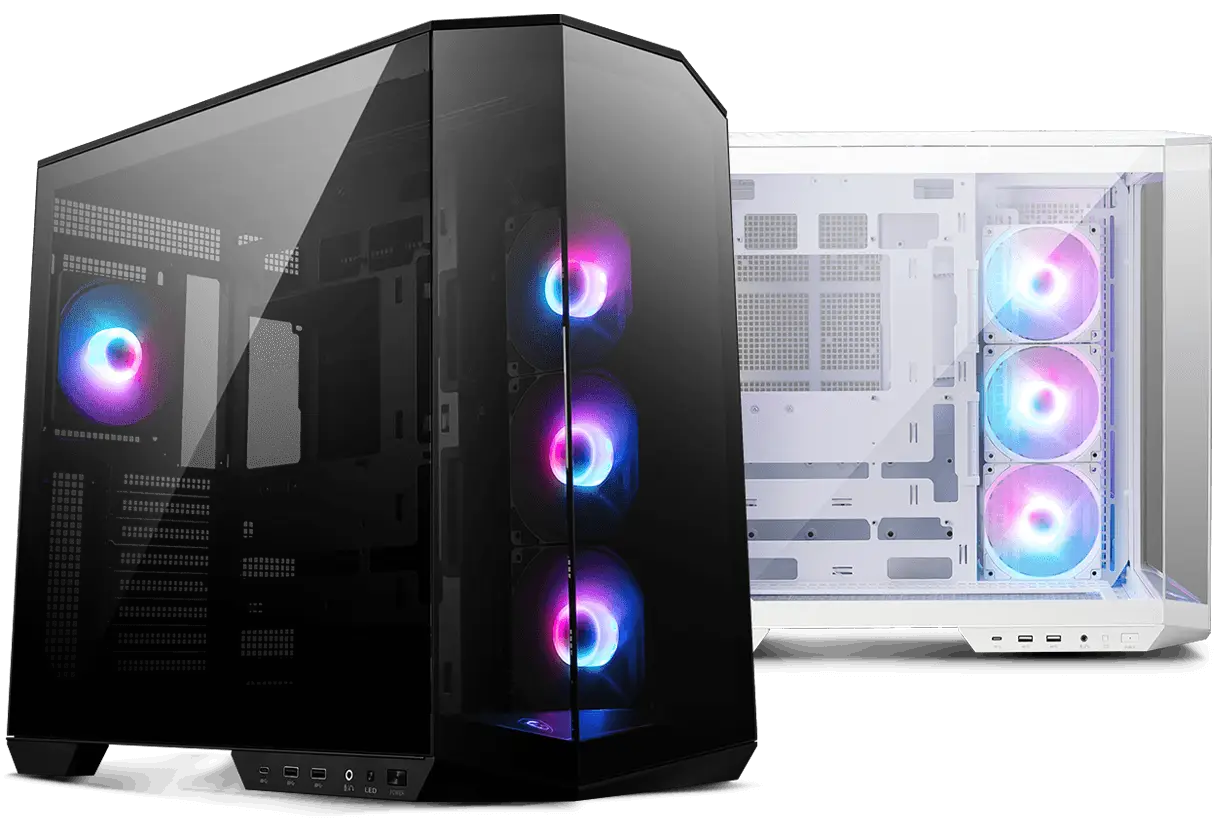

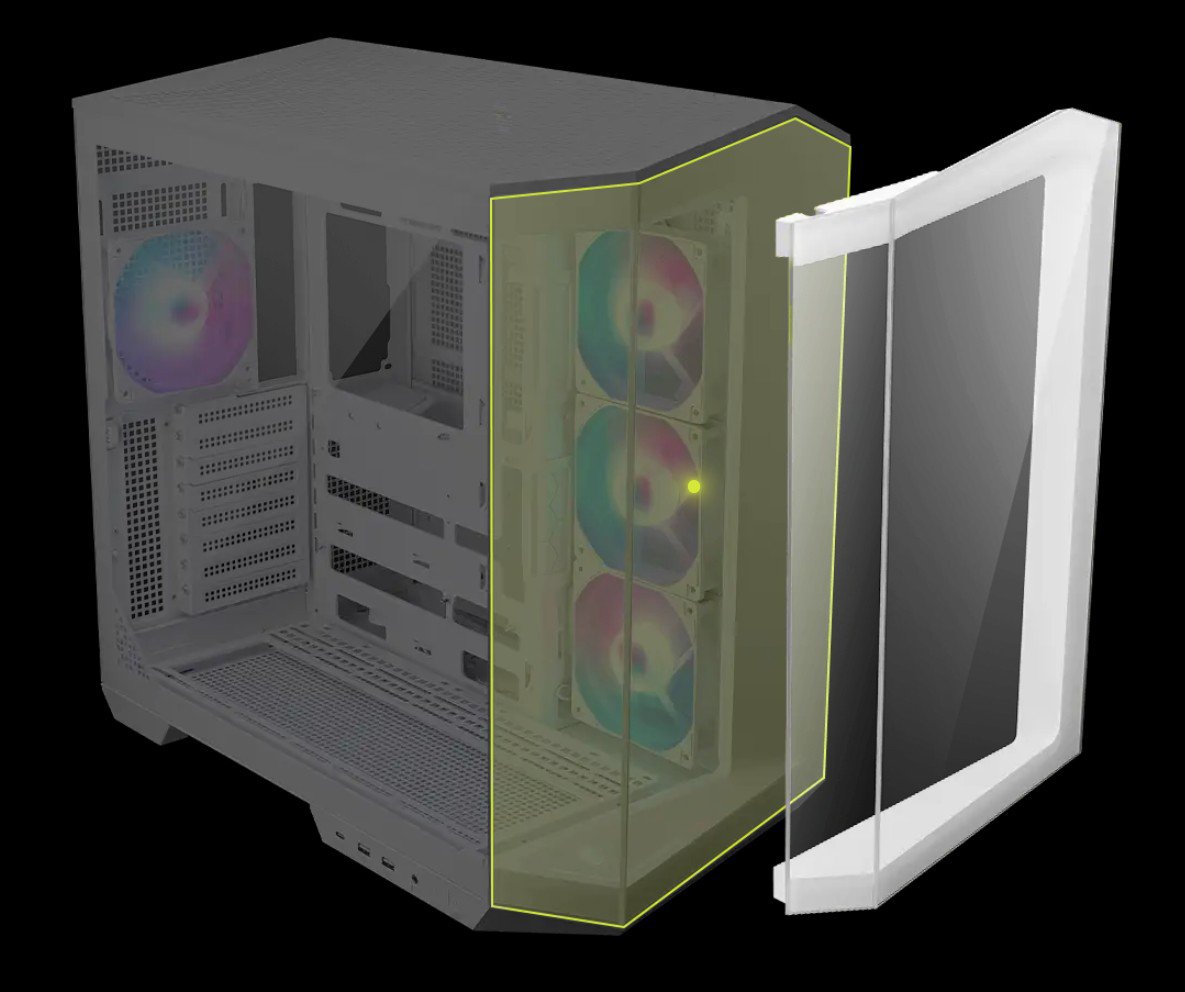

270-Degree Panoramic View
This case features a 270-degree reinforced glass design, providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.
/11-320-067/7.jpeg)

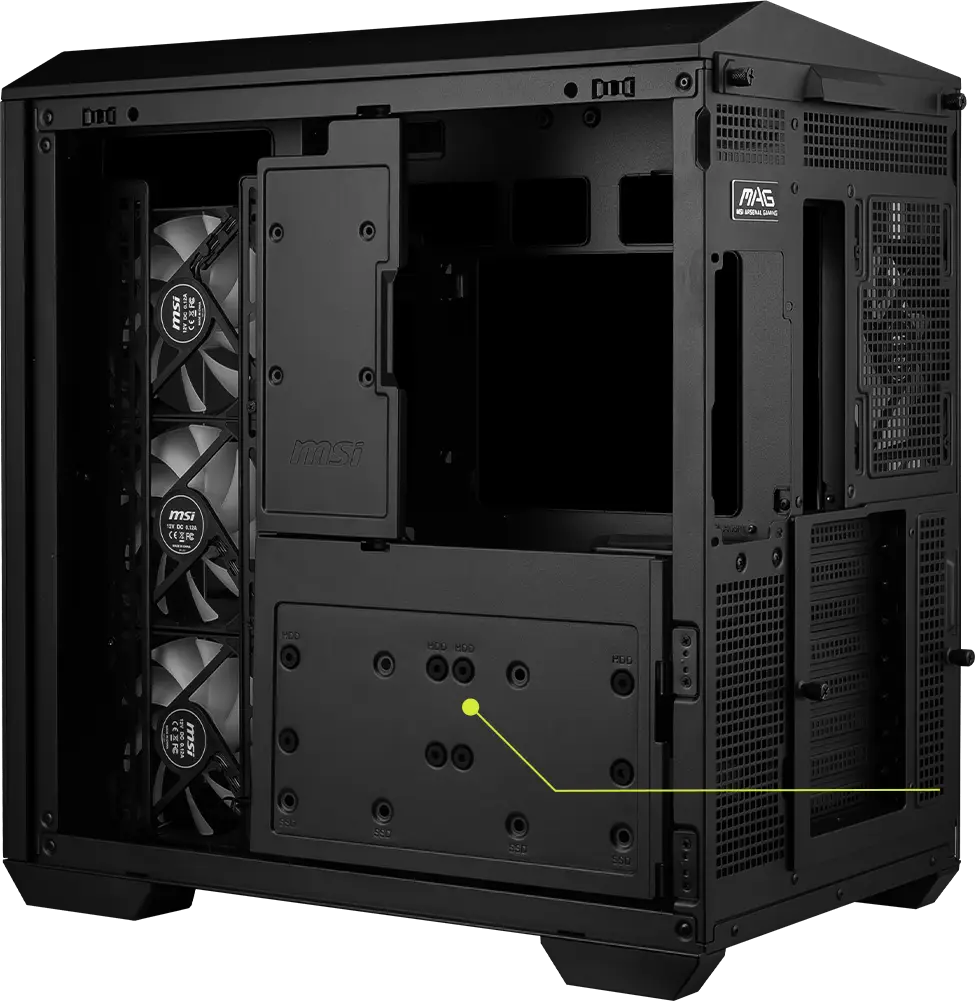

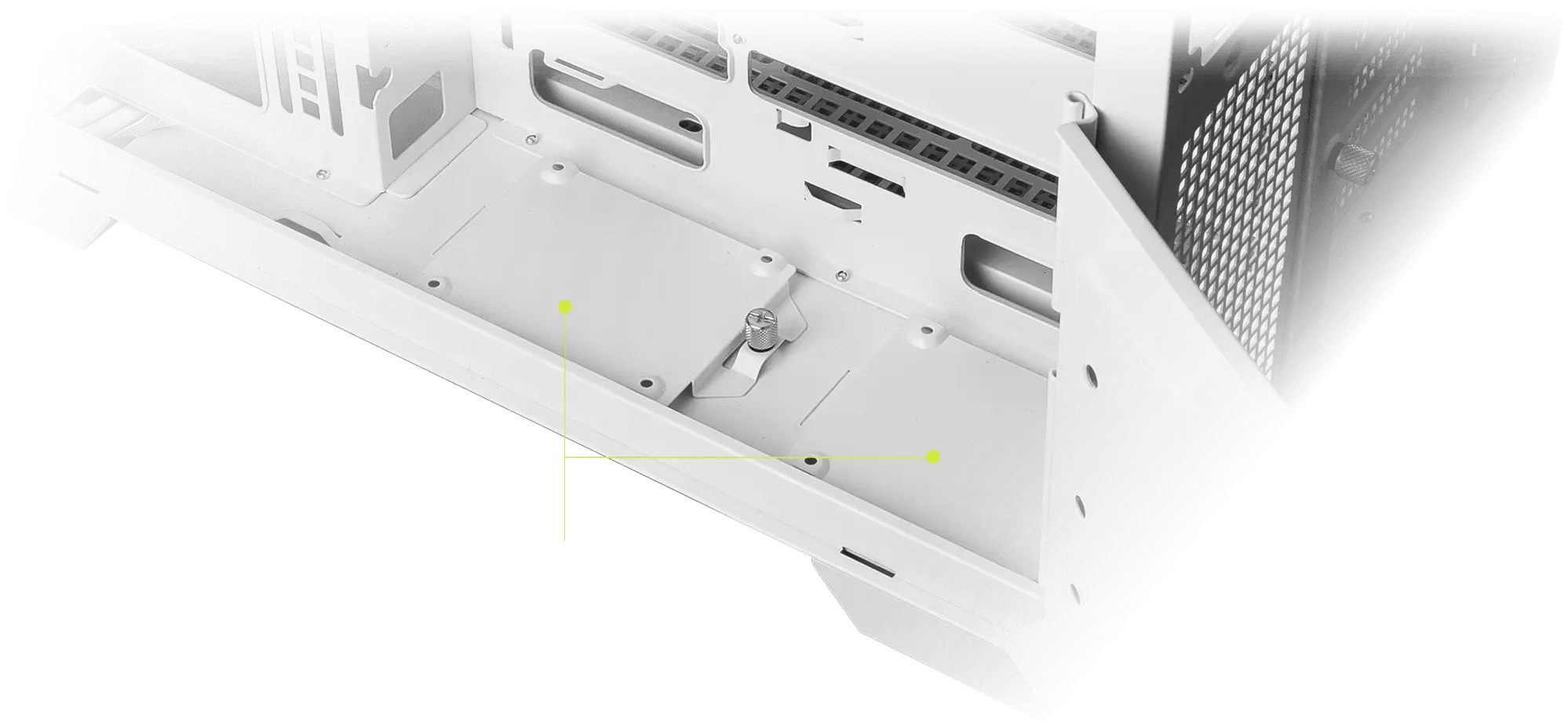

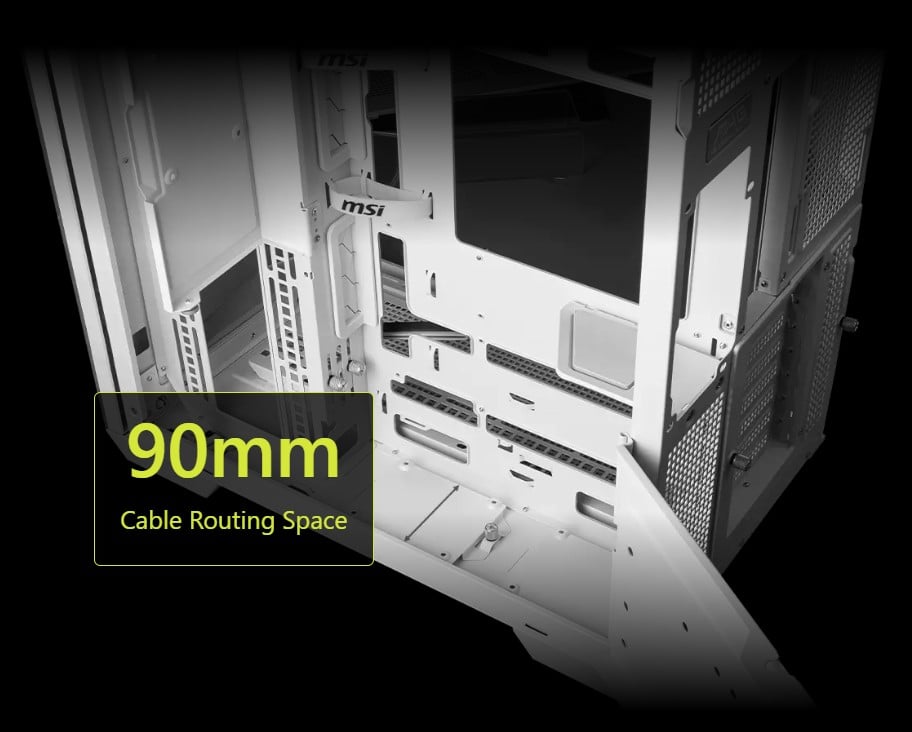

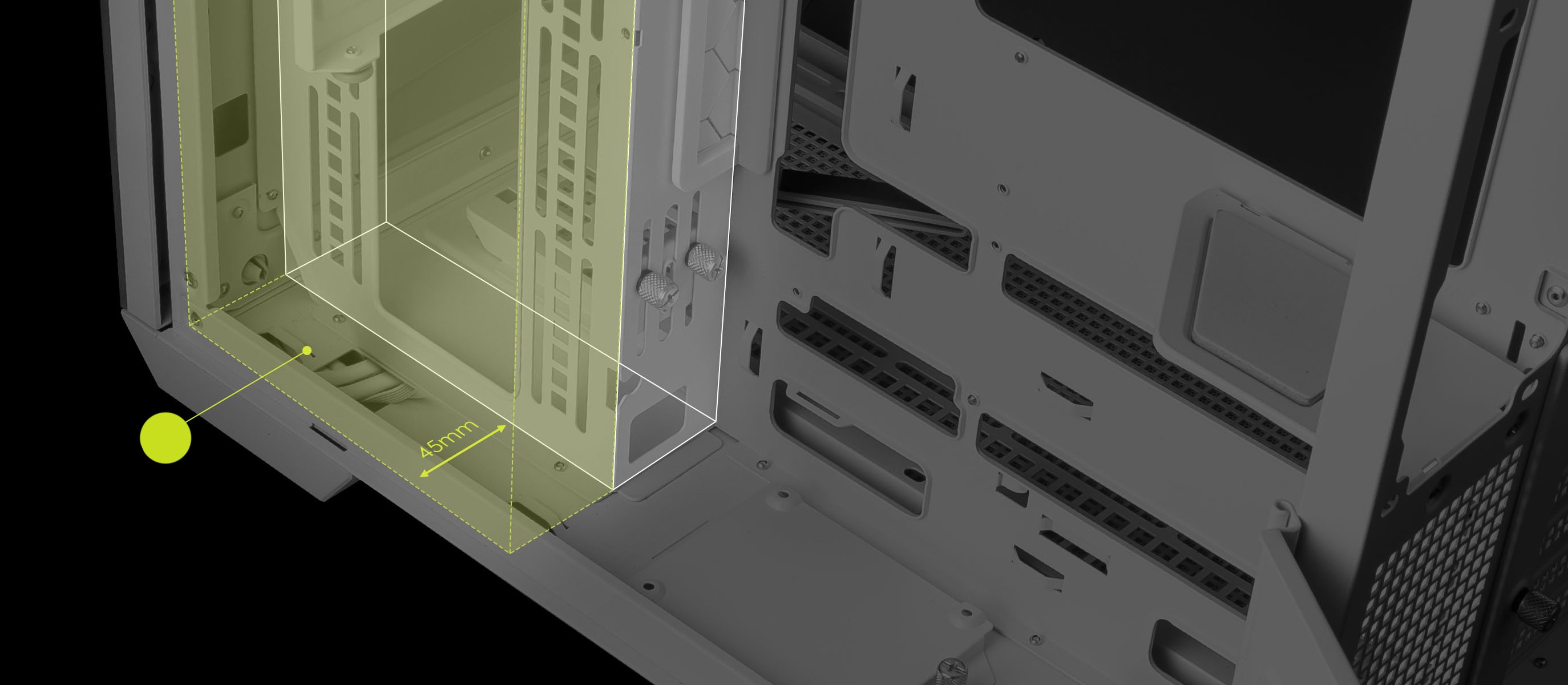

DIY Friendly
This PC case comes with a multi-function storage bracket and dual chamber, combining these two features allows users to easily maintain a clean visual look.
/11-320-067/8.jpeg)

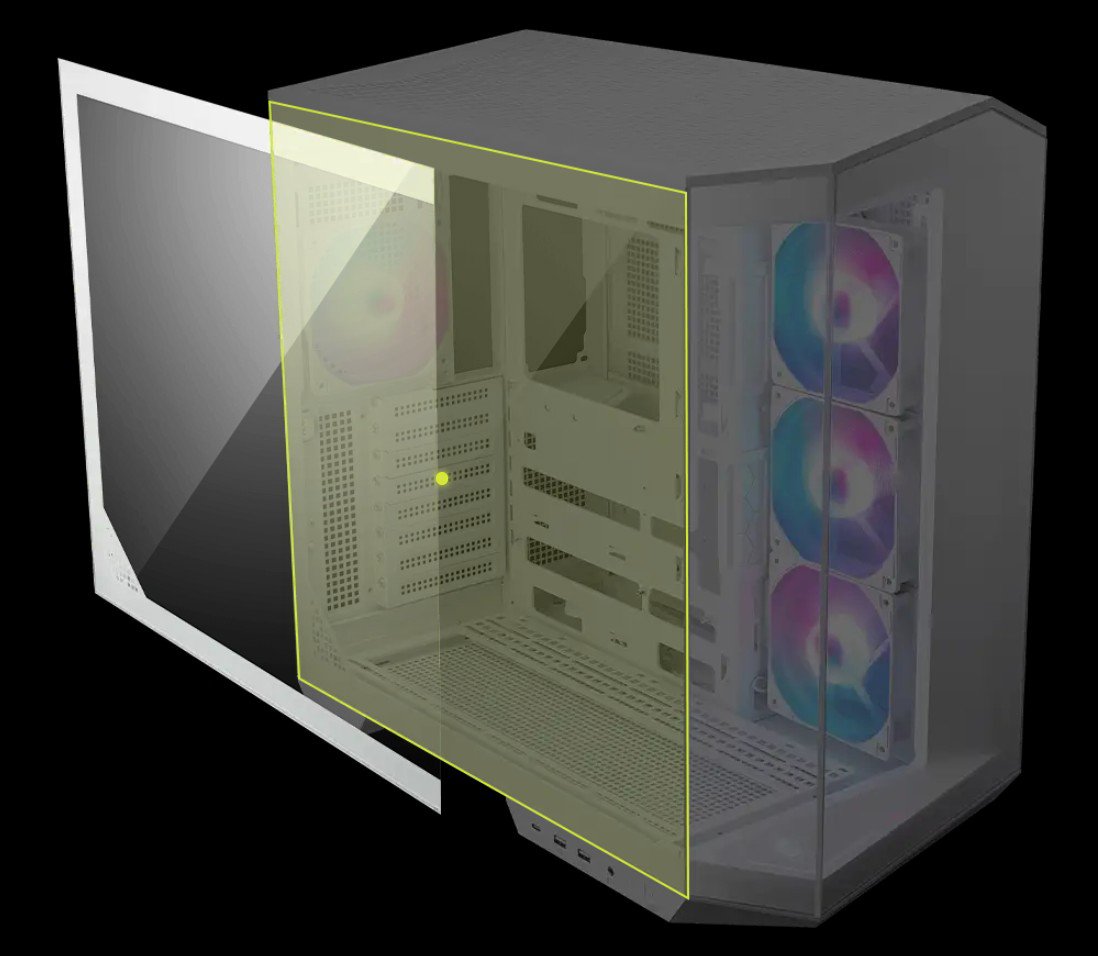

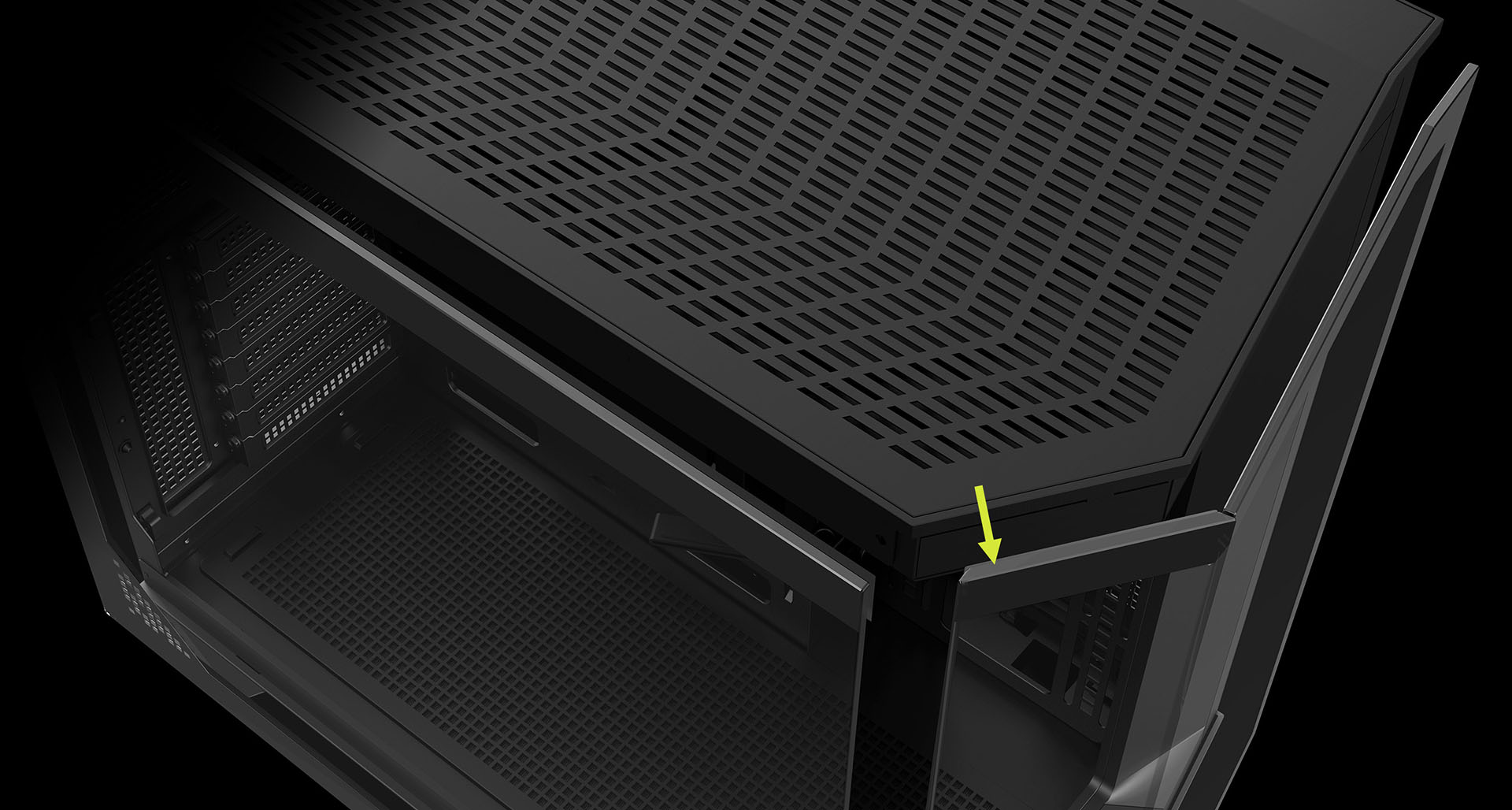

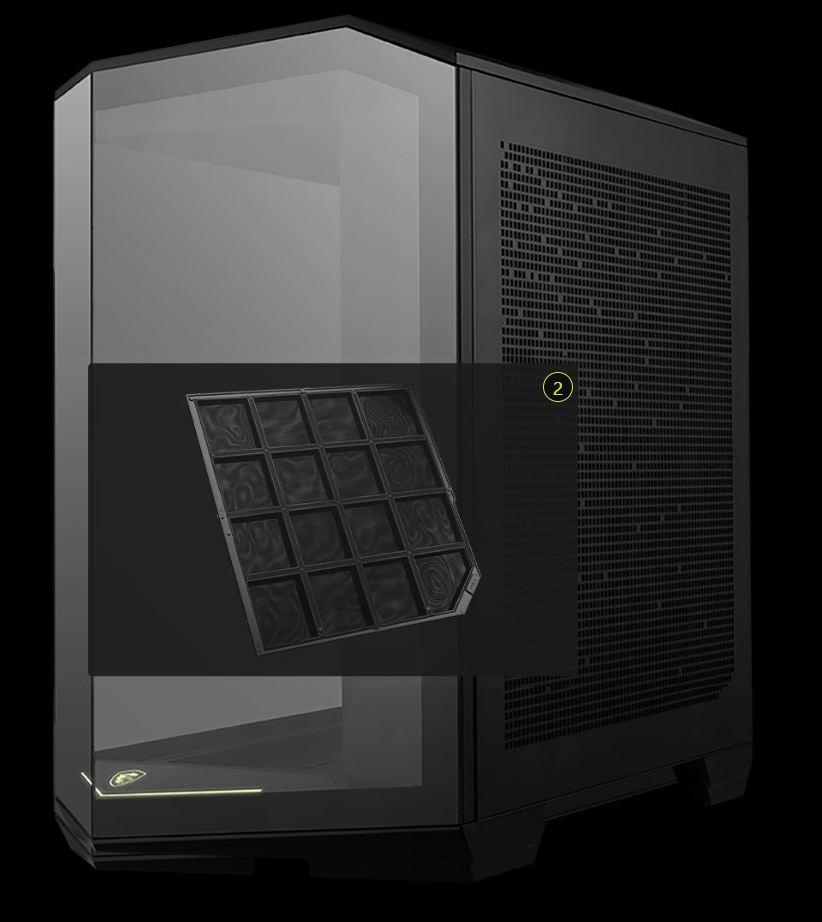

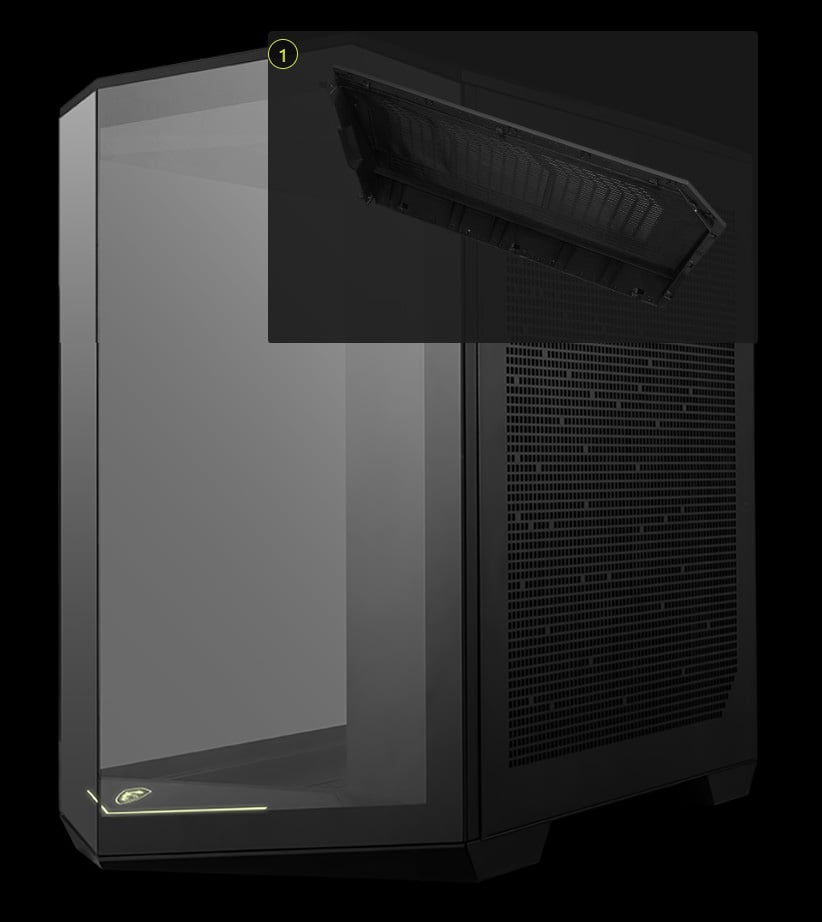

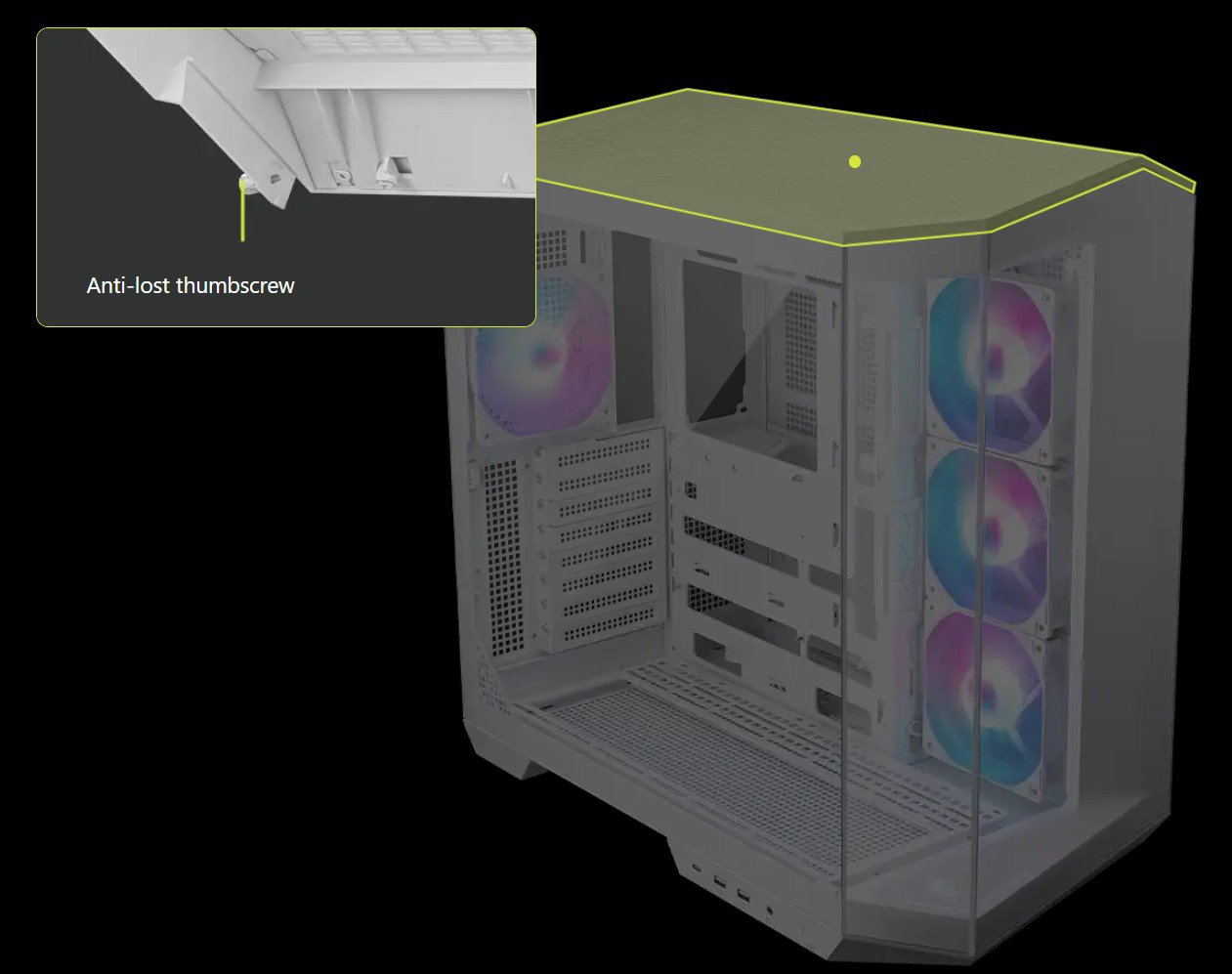

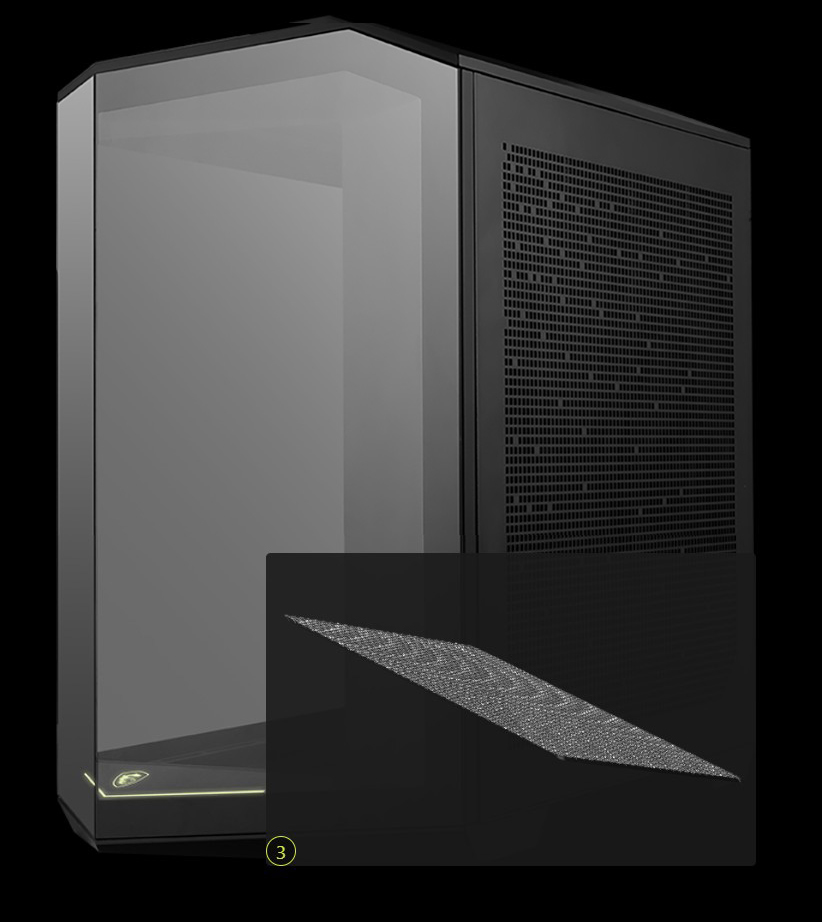

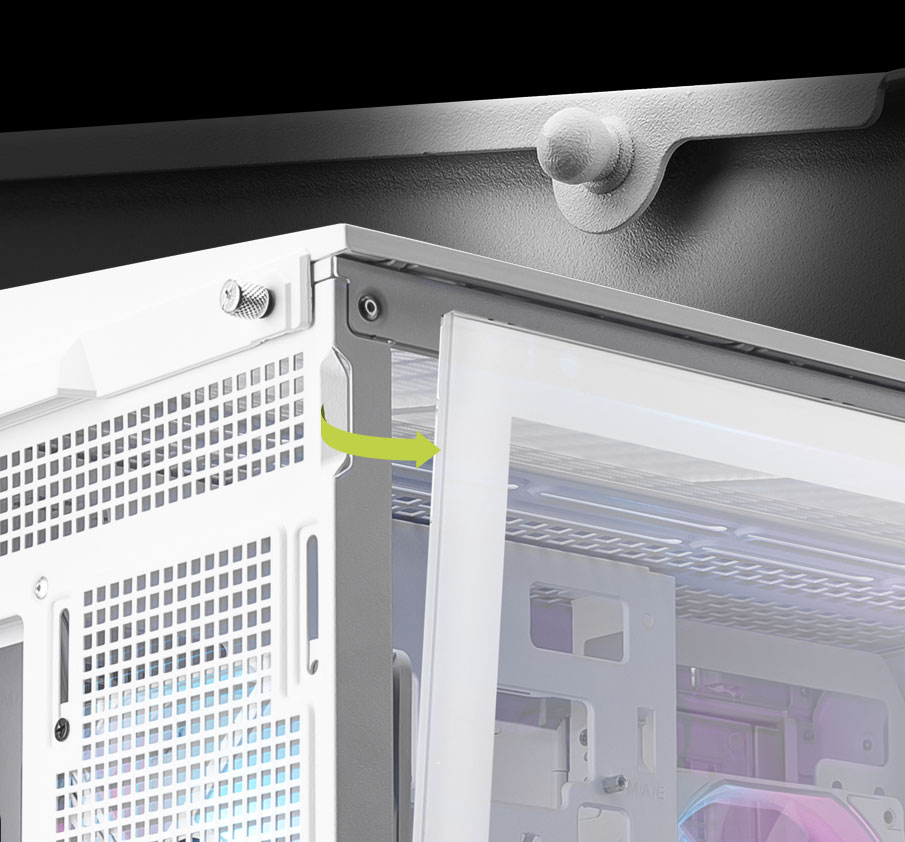

Multiple Inlets & Filters
The tool-free top and side removable design ensures effortless installation, shile side and bottom of this case features a magnetic dust filter for easy removal and cleaning.
/11-320-067/9.jpeg)

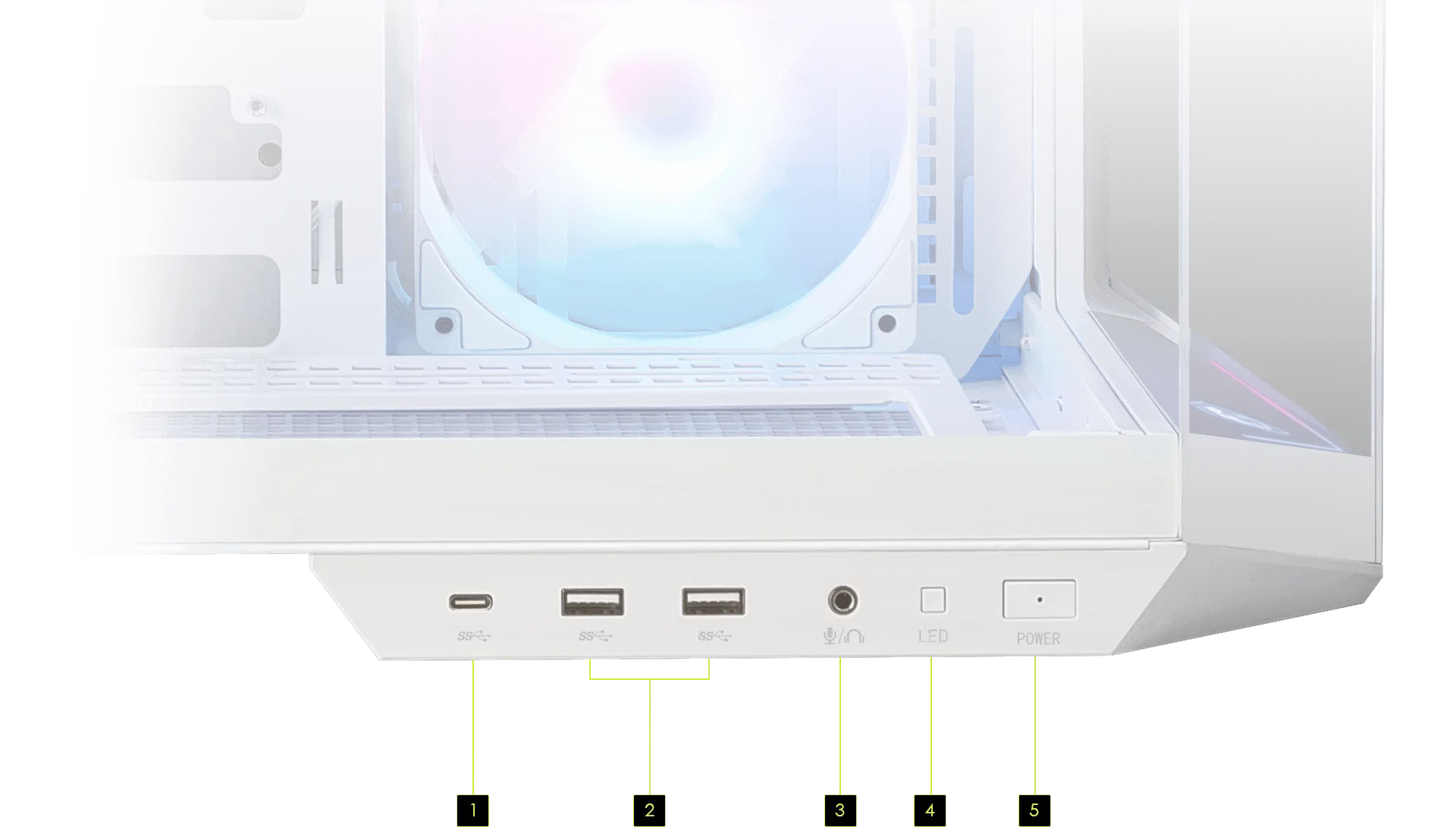

Side I/O Connectivity
The side I/O panel features a USB 20Gbps Type-C port for high-speed data bridging to compatible motherboards.
- 1 x USB 20Gbps Type-C
- 2 x USB 5Gbps Type-A
- Mic in / Audio out
- LED Switch Button
- Power Button
