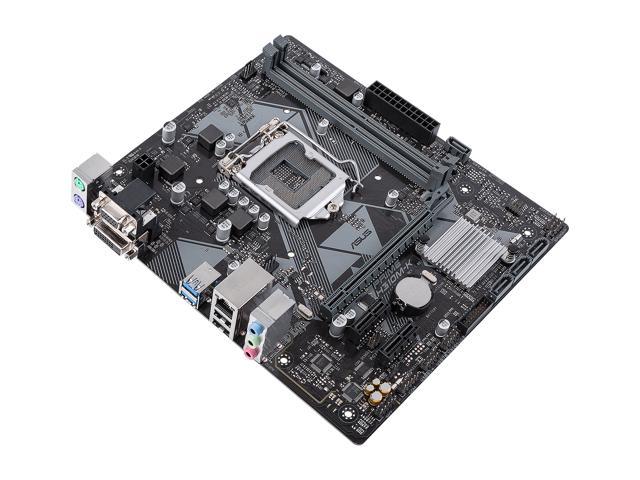

ASUS PRIME H310M-K LGA 1151 (300 Series) Intel H310 SATA 6Gb/s USB 3.1 uATX Intel Motherboard

Name: ASUS PRIME H310M-K LGA 1151 (300 Series) uATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119094
Rating: 4 (38 reviews)

(38)(4) Write a Review

Designed exclusively for 8th generation Intel Core processors
5X Protection III Hardware-level safeguards provide component longevity and reliability
SafeSlot Core fortifies PCIe slots preventing damage caused by heavyweight GPUs
ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound

Overview

Specs

Reviews (38)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy. Read full return policy for details.

CPU Socket Type CPU Socket Type	LGA 1151 (300 Series)
CPU Type	LGA1151 socket for 8th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133 * The maximum memory frequency supported varies by processor. DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors; DDR4 2400MHz and higher memory modules will run at max. 2400MHz on Intel 8th Gen. 4-core processors. * Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported	32GB
Channel Supported Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
PCI Express x1	2 x PCI Express 2.0 x1 slot

Audio Chipset Audio Chipset	Realtek ALC887
Audio Channels Audio Channels	8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

LAN Chipset	Realtek 8111H
Max LAN Speed	1Gbps

SHOP WITH CONFIDENCE

ASUS PRIME H310M-K LGA 1151 (300 Series) Intel H310 SATA 6Gb/s USB 3.1 uATX Intel Motherboard

Learn more about the ASUS PRIME H310M-K

Customer Reviews of the ASUS PRIME H310M-K

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Sponsored ads from outside of Newegg

Rear Panel Ports
PS/2 PS/2	1 x PS/2 keyboard 1 x PS/2 mouse port
Video Ports	1 x DVI port 1 x D-Sub port
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen 1 ports (up to 5Gbps) Type A (blue)
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 x Audio jacks support 8-channel audio output

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 (up to 5Gbps) connectors support additional 2 USB ports (19-pin) 2 x USB 2.0 connectors support additional 4 USB ports
Other Connectors	1 x 4-pin CPU Fan connector for 4-pin PWM mode 1 x 4-pin Chassis Fan connector for 3-pin (DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector 1 x COM header 1 x S/PDIF Out header 1 x Speaker connector 1 x Clear CMOS jumper (2-pin) 1 x System Panel connector

Physical Spec
Form Factor	uATX
Dimensions (W x L)	8.9" x 7.3"
Power Pin	1 x 24-pin EATX Power connector 1 x 4-pin EATX 12V Power connector
