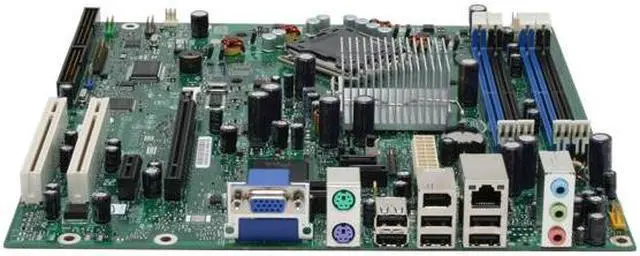

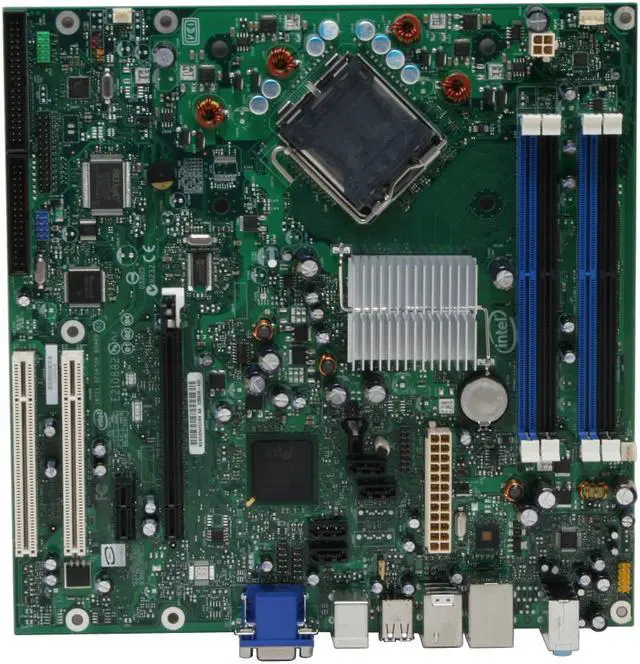

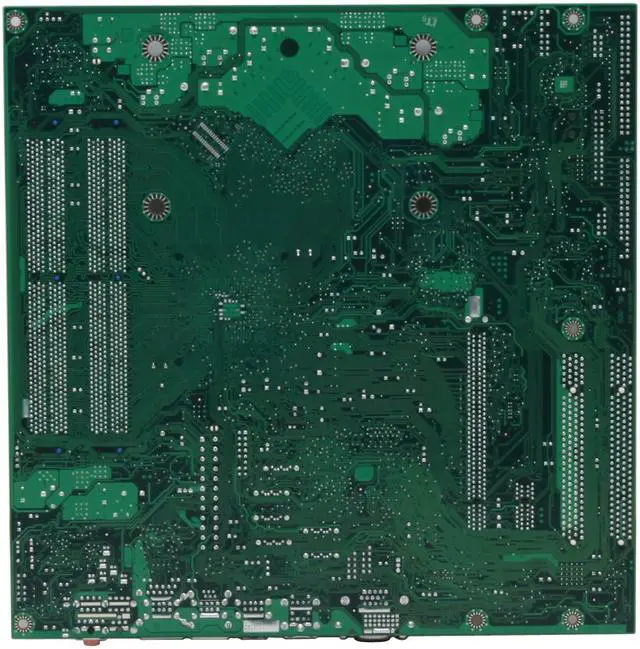

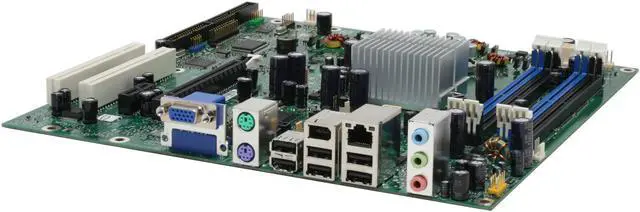

Intel BOXDG965MSCK LGA 775 Intel G965 Express Micro BTX Intel Motherboard
OPEN BOX Product Type
- Intel G965 Express
- Core 2 Duo / Pentium D / Celeron D
- DDR2 800
Specs
Learn more about the Intel BOXDG965MSCK
| Brand | Intel |
|---|---|
| Model | BOXDG965MSCK |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | 1066/800 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel G965 Express |
|---|---|
| South Bridge | Intel ICH8 |
| Onboard Video Chipset | Intel GMA X3000 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB at 800 MHz 8GB at 667/533 MHz |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 4 x SATA 3Gb/s |
| Audio Chipset | High Definition Audio |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|---|
| Onboard 1394 | 1 x 1394a connector supports 1 port |
| Form Factor | Micro BTX |
|---|---|
| Power Pin | 24 Pin |
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | August 02, 2007 |
|---|
