MSI B85M-E45 LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

REFURBISHED Product Type
Be the first to review this product...
  • Intel B85
  • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
  • DDR3 1600/ 1333/ 1066 DRAM (1.5 Volt), non-ECC, un-buffered
Specs
Reviews

Learn more about the MSI B85M-E45

Model
Brand MSI
Model B85M-E45
Supported CPU
CPU Socket Type CPU Socket TypeLGA 1150
CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
Chipsets
Chipset ChipsetIntel B85
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1600/ 1333/ 1066 DRAM (1.5 Volt), non-ECC, un-buffered
Maximum Memory Supported 32GB
Channel Supported Channel SupportedDual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
PCI Express x1 2 x PCIe 2.0 x1 slots
PCI Slots 1 x PCI Slot
Storage Devices
SATA 3Gb/s SATA 3Gb/s2 x SATA 3Gb/s
SATA 6Gb/s SATA 6Gb/s4 x SATA 6Gb/s
Onboard Audio
Audio Chipset Audio ChipsetRealtek ALC887
Audio Channels Audio Channels7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111G
Max LAN Speed 1Gbps

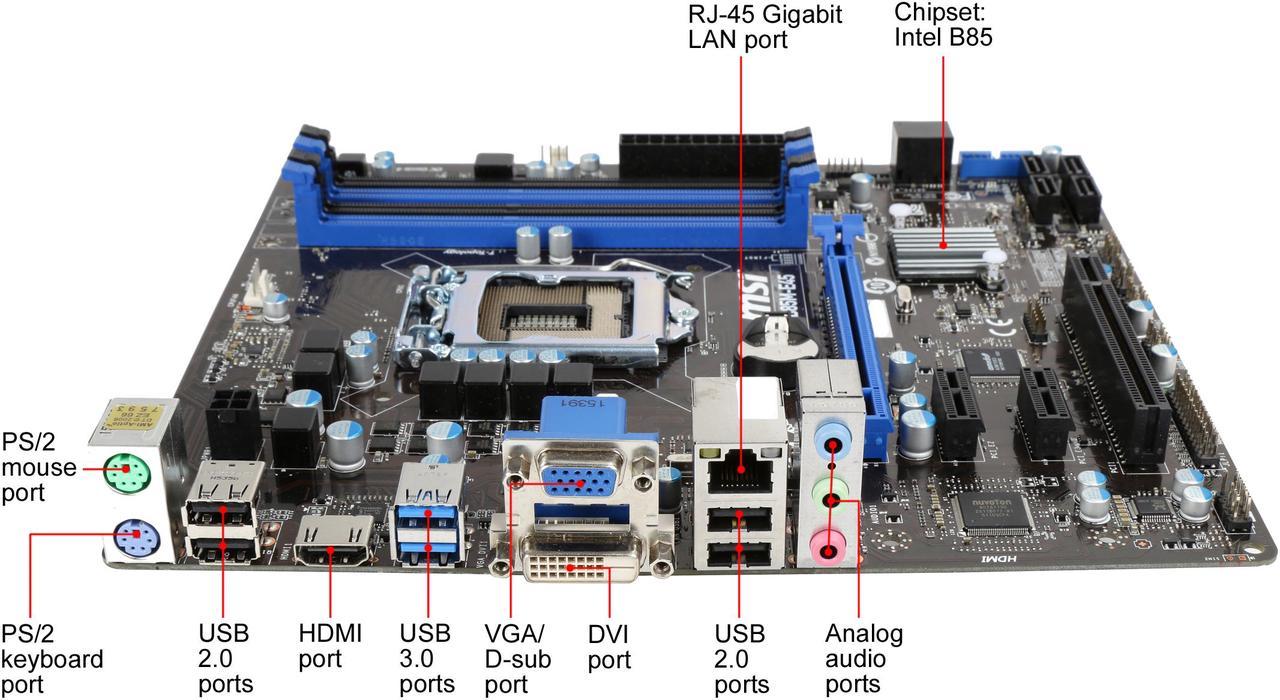

Rear Panel Ports
Back I/O Ports 1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2 PS/21 x PS/2 keyboard port
1 x PS/2 mouse port
Video Ports 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
HDMI HDMI1 x HDMI port, supporting the maximum resolution of 4096x2160@24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/ 1920x1080@60Hz, 36bpp
RJ45 1 x RJ45
USB 3.0 USB 3.02 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
Audio Ports 1 x 3 in 1 audio jack
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.0 connectors (supports additional 2 USB 3.0 ports)
Other Connectors 1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x 3-pin system fan connector
1 x Clear CMOS jumper
1 x Serial port connector
1 x Parallel port connector
1 x TPM Module connector
1 x Front Panel Audio connector
1 x Chassis Intrusion connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.0" x 9.6"
Features
Features Supports 4th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket

Supports DDR3-1600 Memory

USB 3.0 + SATA 6Gb/s

Military Class 4: Top Quality & Stability

Military Class Essentials: Total Protection for Military Class Motherboards

OC Genie 4: Overclock in 1 Second

Click BIOS 4: Easily Fine-tune Your System

4K UHD Support: Ultra-high Definition Visual Experience

3 Display Outputs: HDMI/DVI/D-Sub Support

PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand

Command Center: Control & Customize Your PC Settings

Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds

M-Flash: Simply Update & Backup Your BIOS

Live Update 5: Easily Update The Latest BIOS & Drivers

Intel Small Business Advantage 2.0: Streamline PC Maintenance & Security
Additional Information
Date First Available January 17, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 90 days
  • Limited Warranty period (labor): 90 days
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Replacement Only Return Policy. Read full return policy for details.
