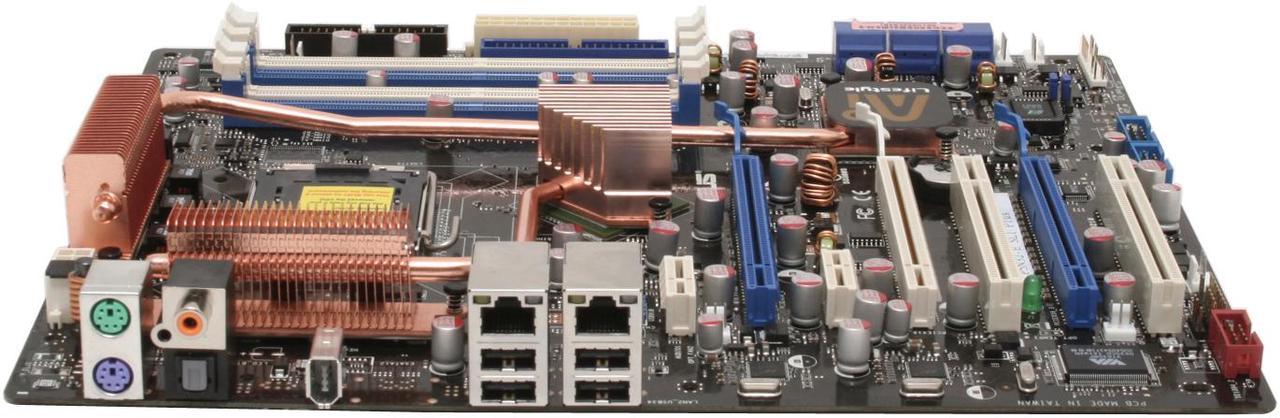

ASUS P5N32-E SLI Plus LGA 775 C55+MCP55P; a.k.a. nForce 650i SLI & nForce 570 SLI ATX Intel Motherboard

(260) Write a Review
  • C55+MCP55P; a.k.a. nForce 650i SLI & nForce 570 SLI
  • Core 2 Duo / Core 2 Extreme / Core 2 Quad
  • DDR2 800
Specs
Reviews (260)

Learn more about the ASUS P5N32-E SLI Plus

Model
Brand ASUS
Model P5N32-E SLI Plus
Supported CPU
CPU Socket Type CPU Socket TypeLGA 775
CPU Type Core 2 Duo / Core 2 Extreme / Core 2 Quad
FSB 1333/1066 MHz
Chipsets
Chipset ChipsetC55+MCP55P; a.k.a. nForce 650i SLI & nForce 570 SLI
Onboard Video
Onboard Video Chipset Onboard Video ChipsetNone
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Channel SupportedDual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16 slot, support NVIDIA SLI technology, at full x16, x16 speed (blue)
1 x PCI Express x16, at x8 speed (white)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s SATA 3Gb/s6 x SATA 3Gb/s
SATA RAID NV RAID 0/1/0+1/5 JBOD
Onboard Audio
Audio Chipset Audio ChipsetADI AD1988B
Audio Channels Audio Channels8 Channels
Onboard LAN
LAN Chipset Marvell
Second LAN Chipset Marvell
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 PS/22
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out S/PDIF Out1 x Optical, 1 x Coaxial
Audio Ports 6 Ports by SupremeFX Audio Card
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors supports 6 ports
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents P5N32-E SLI Plus
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
2 x 4-pin to SATA Power Cable
SLI Bridge
USB Bracket
IEEE 1394 Bracket
SupremeFX Audio Card
Additional Information
Date First Available February 05, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
